2014 Mansory Carbonado GT
Carbon fibre everywhere the eye can see: The ultralight and high-strength material of carbon fibre finds ample uses even in the series version of the Lamborghini Aventador LP700-4. MANSORY purposefully continued to use it in the completely reworked MANSORY CARBONADO GT as the main component of all its bodywork components. Every single element of the MANSORY aerodynamic design is made in prepreg autoclave process in perfect surface quality and precision-built into the vehicle. A carbon fibre weave with a stealth-look is being used, which is being exclusively deployed by MANSORY in vehicle construction.

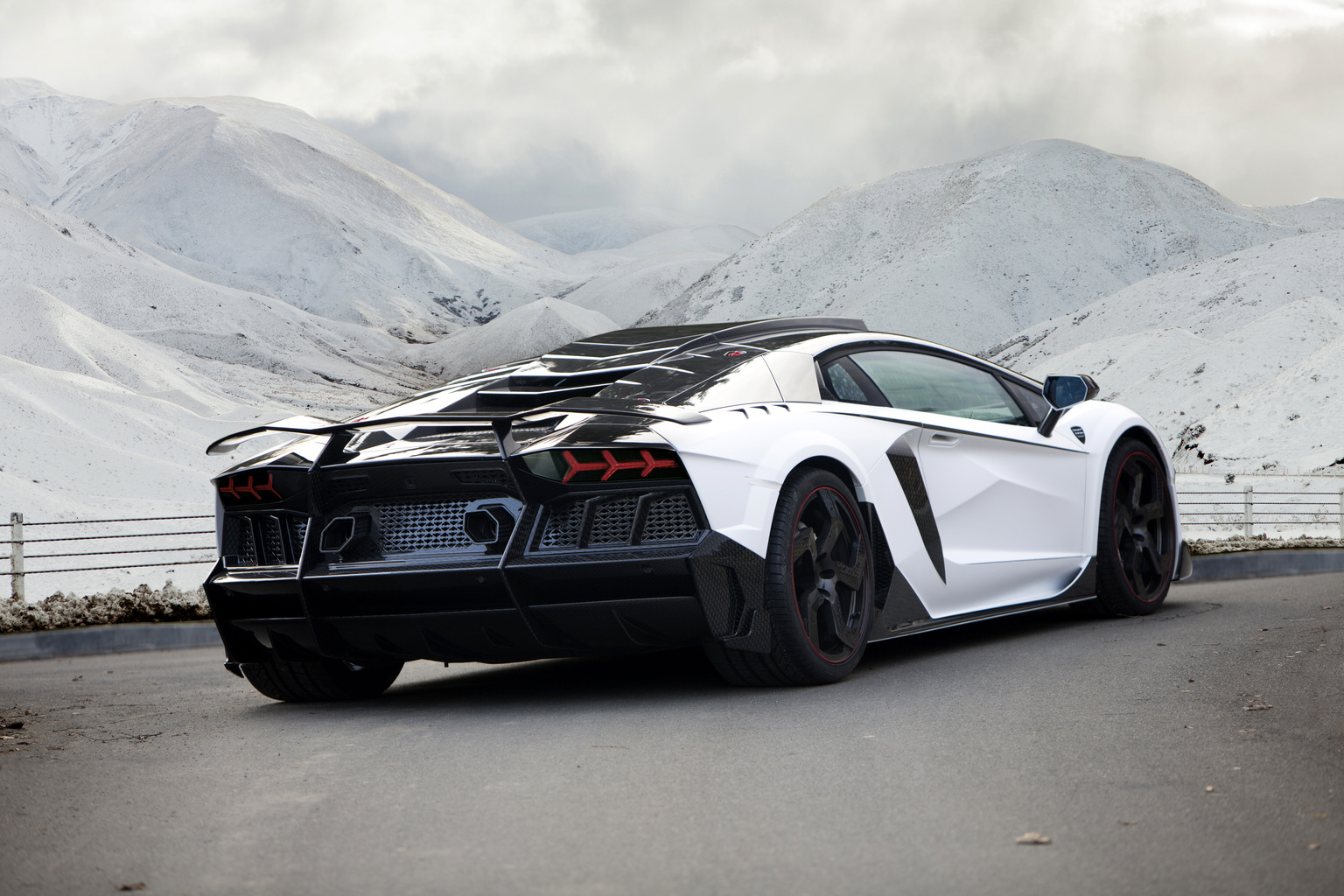

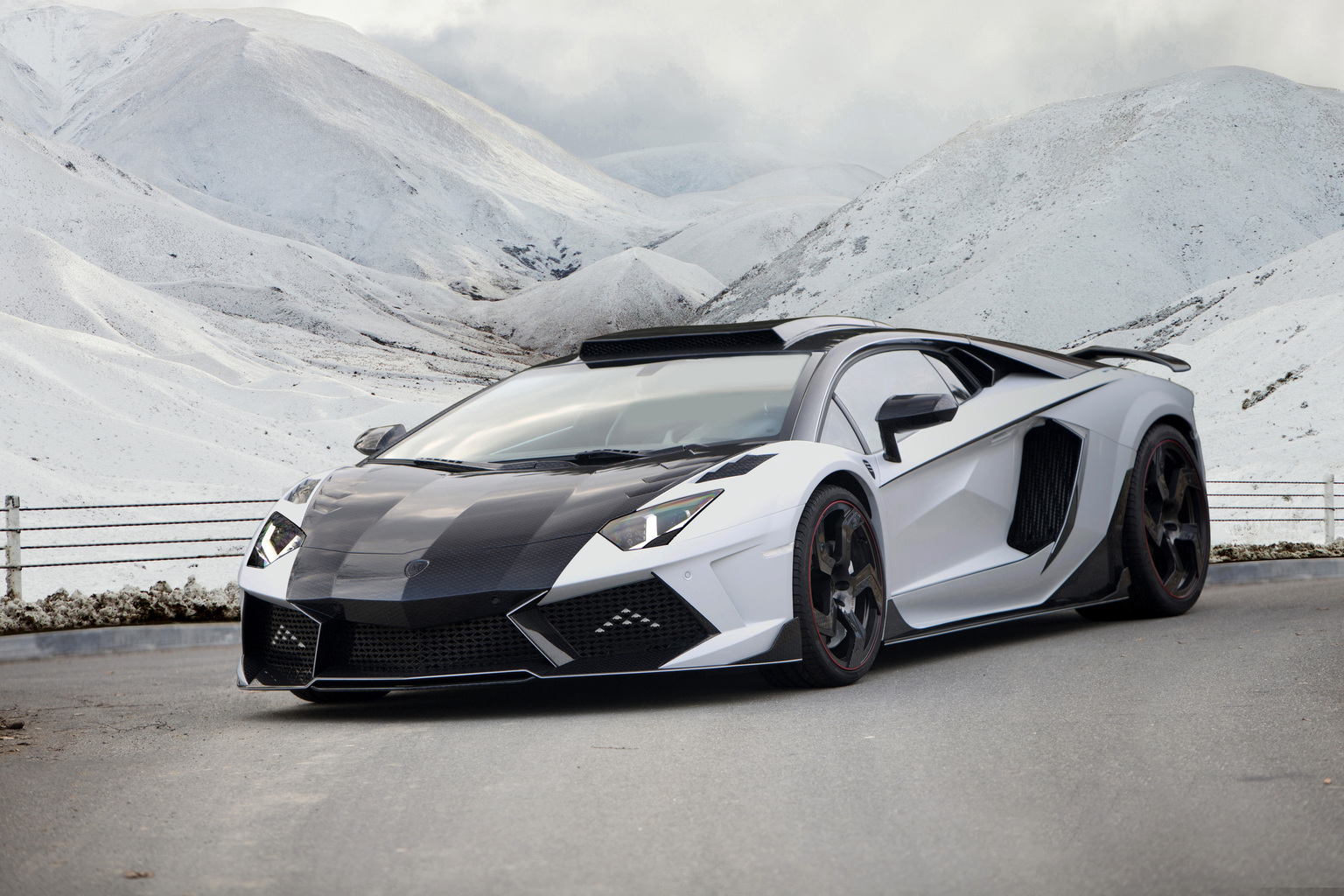

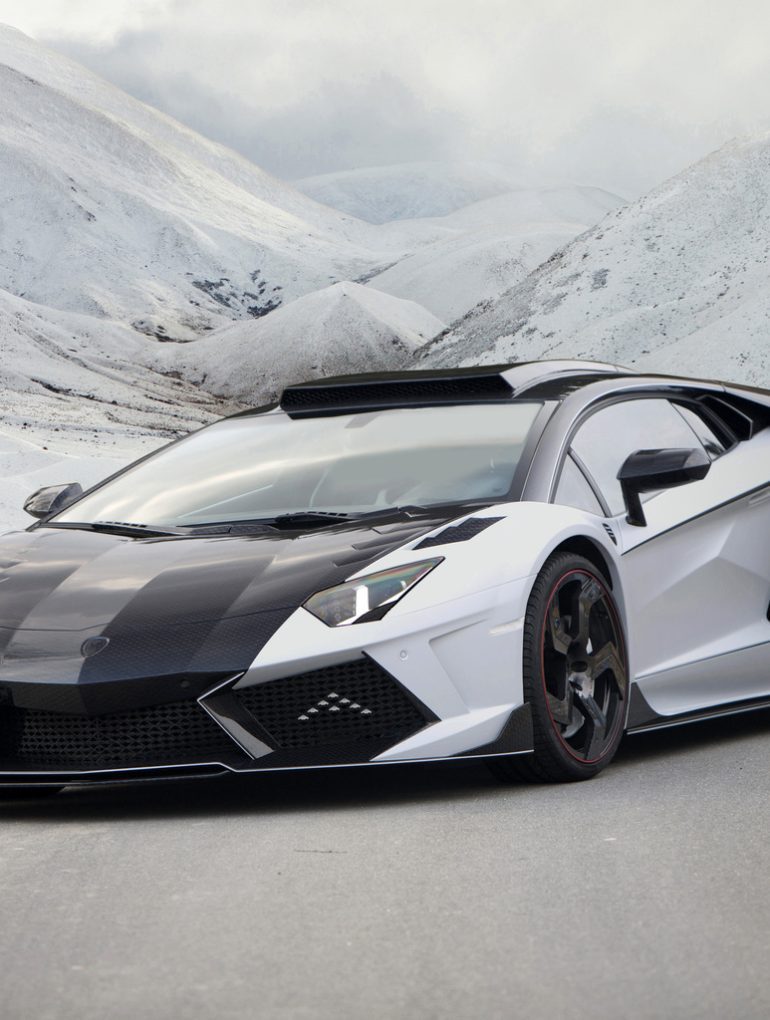

An eye-catching new feature of the newly styled Aventador front is the striking skirt with the optimised air intakes for improved ventilation of the front radiator. In combination with the new front lip spoiler and the proprietary developed daytime running lights MANSORY has not only achieved an aggressive appearance but also generated additional drive. Also the front wing, as well as the bonnet will be exchanged and replaced by proprietary developments. The sides have grown by 40 millimetres on the front and by a remarkable 50 millimetres on the rear axle in width. Newly designed side skirts are also fitted. These steady the air flow between the axles and feed additional cooling air into the drive unit and the rear braking system through integrated routing channels. The diffuser built into the new rear spoiler stabilises the rear at high speeds and creates surface contact pressure together with the enlarged rear wing on the rear axle. The body styling kit is completed by the replacement of the roof and engine compartment cover by all-carbon elements.
But the MANSORY customized Aventador impresses not only with its fascinating design. MANSORY has completely reworked the 6.5 litre V12 cylinder and fitted it with two MANSORY turbochargers. Furthermore the pistons, connecting rods, rod bearings, crankshaft, crank and cylinder head have been replaced by motor racing parts and now meet the high demands of Kourosh Mansory. Together with the newly designed exhaust system from the manifold right up to the stainless steel tailpipes, which give superior performance characteristics. Instead of 700 hp (515 kW) the CARBONADO GT achieves an impressive 1600 hp (1176 kW), while the maximum electronically-limited torque increases to 1200 Nm. This accelerates the bi-turbo twelve-cylinder from zero to one hundred (km/h) in a breathtaking 2.1 seconds. Thetop speed is faster than 370 km/h which is also significantly higher than with the base vehicle.
Of course, only the best components are worth considering for the conversion of engine power into propulsion: As the perfect wheel-tyre combination MANSORY has built ultralight striking forged rims with carbon fibre inlays with 9.0 x 20 and 13.0 x 21 dimensions with Pirelli P ZERO tyres in VA 255/30 ZR20 and HA 355/25 ZR21 sizes.

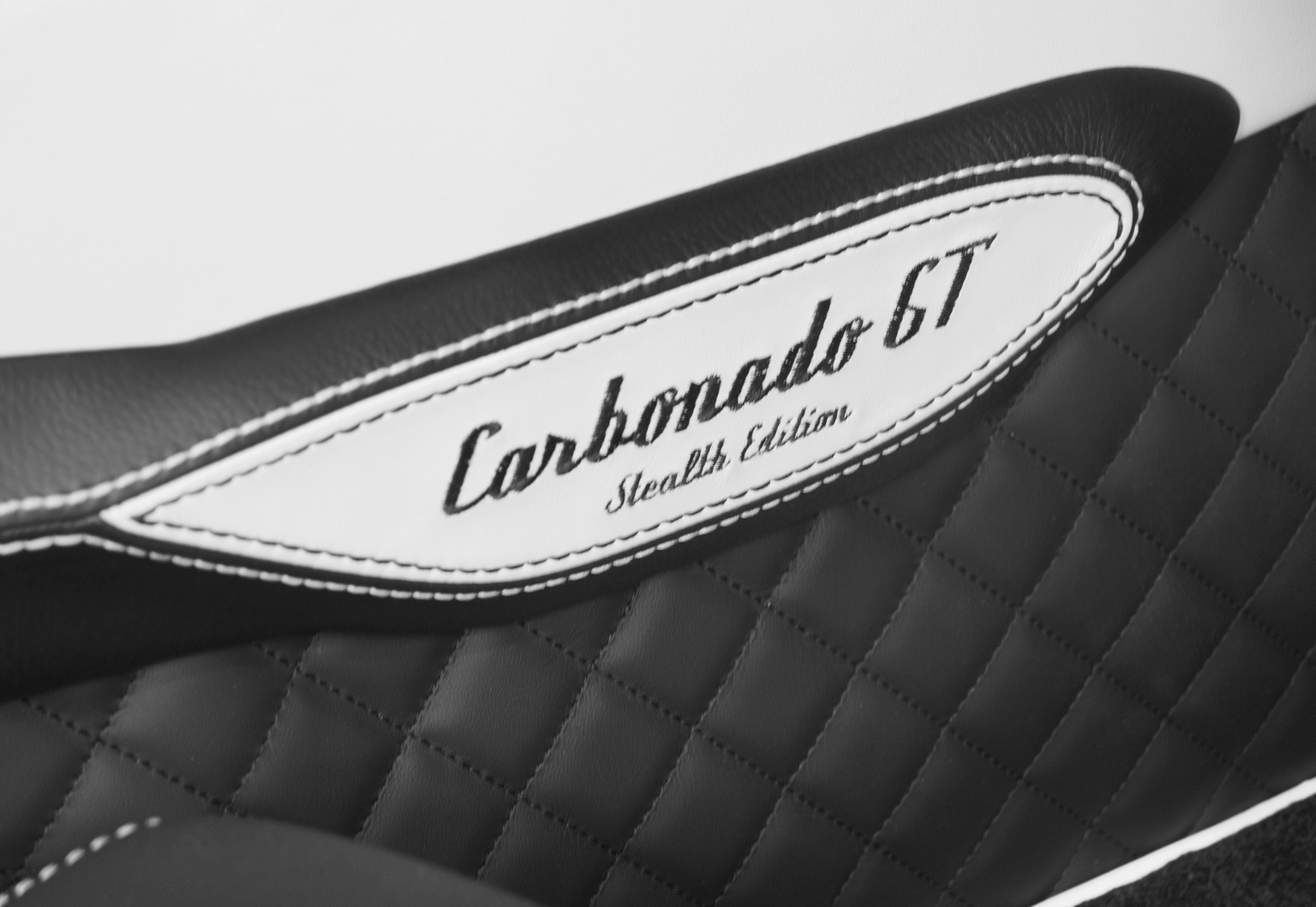

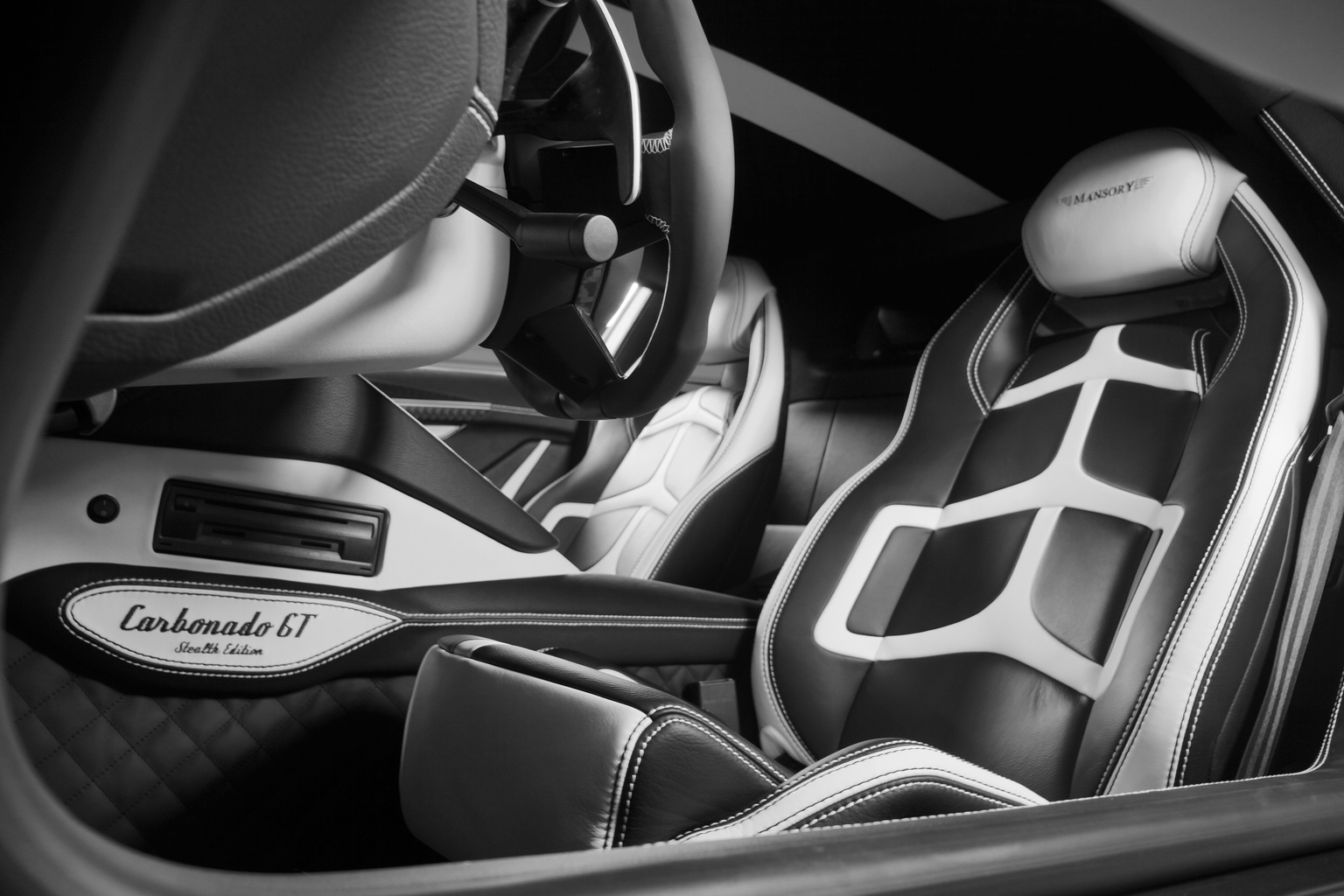

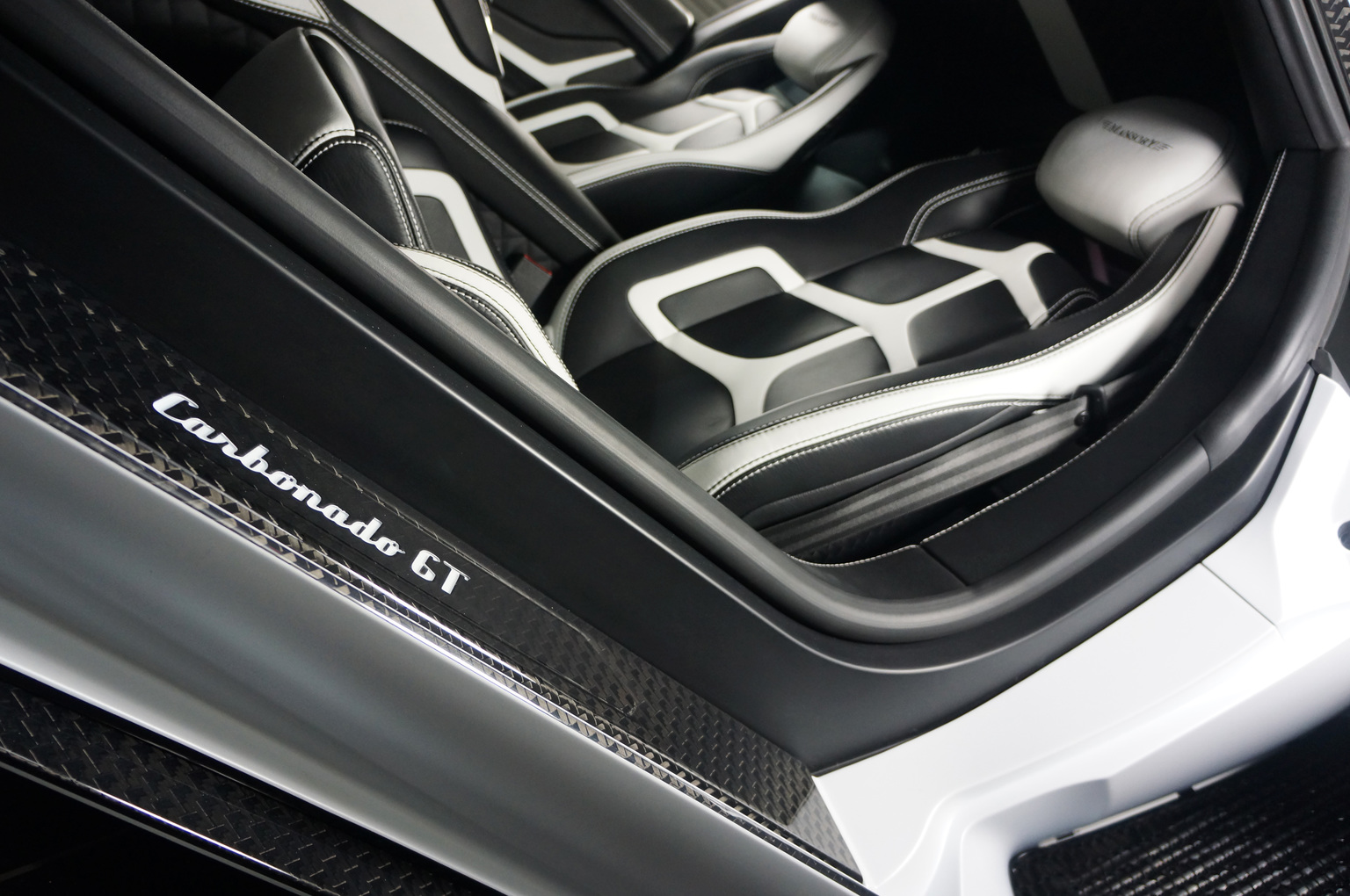

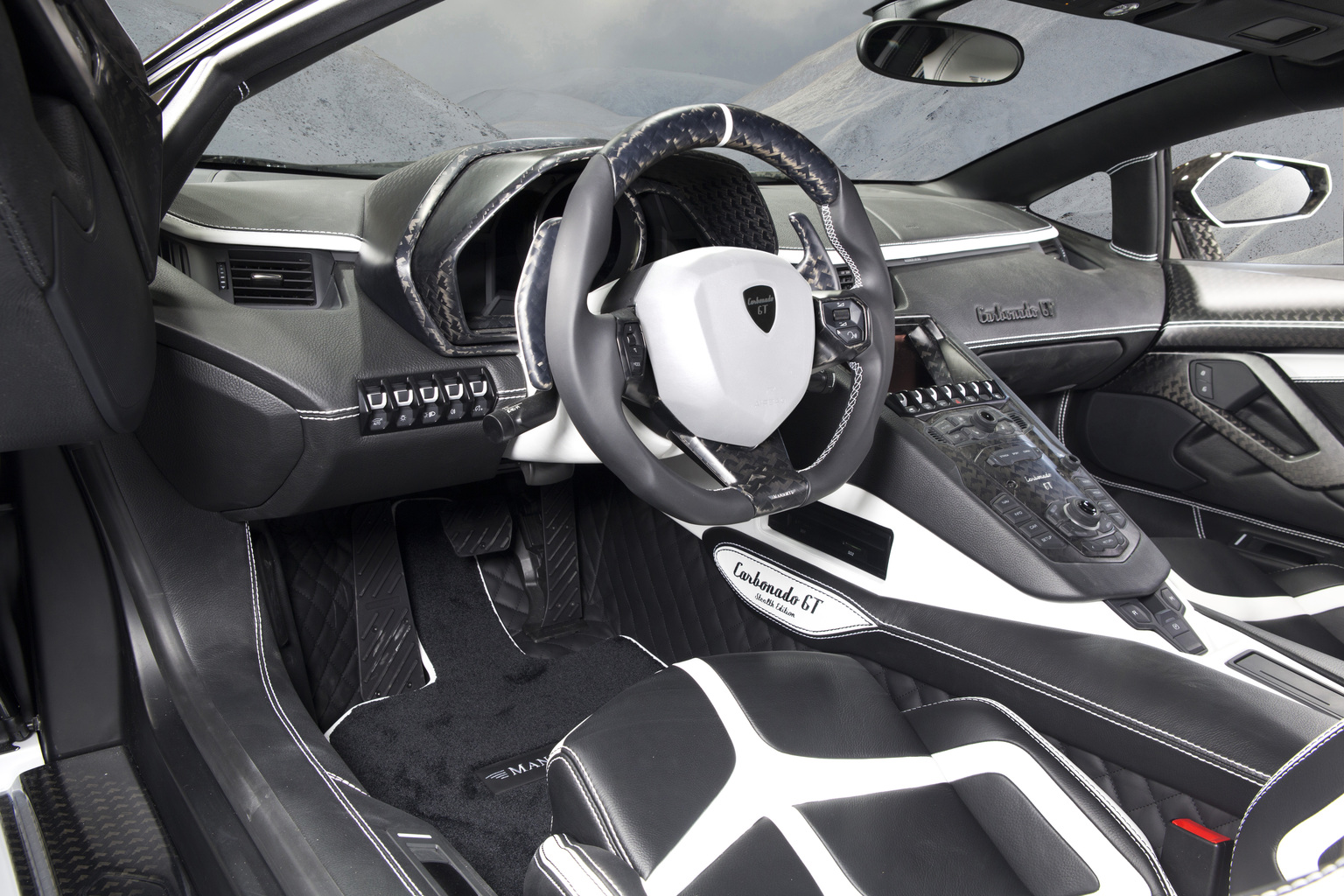

The Lamborghini refinement program finds a perfect fulfilment in the extensive interior applications. Naturally only the finest of materials are used. The processed leather used for the seats as well as the dashboard is particularly durable yet still extraordinarily soft. This characteristic natural product with its individual graining and the perfect hand stitching conveys an air of extravagant flair around the newly designed sports steering wheel with airbag. In order to accent the character of the CARBONADO GT interior even more non-slip aluminium pedals as well as genuine carbon fibre components are used on the doors, the fittings and the centre console.
The newly positioned starter button presents one of the technical highlights of the interior. In the style of an aircraft cockpit switch MANSORY has relocated this red switch from the centre console to the roof lining.
MANSORY Design & Holding GmbH exclusively offers their own specially developed modification accessories. It does not trade in complete vehicles and also does not offer these for sale.
Story by Mansory Design & Holding GmbH
2014 Mansory Carbonado GT Gallery
See full 2014 Mansory Carbonado GT Gallery here
In Detail
tags | aventador, lamborghini |
type | Professionally Tuned Car |
built at | Santa’Agata Bolognese, Germany |
engine | L539 60º V12 w/Dry Sump Lubrication |
position | Mid-Longitudinal |
aspiration | Natural |
block material | Aluminum-Silicon Alloy |
valvetrain | Chain-Driven DOHC, 4 Valves per Cyl w/VVT |
fuel feed | Sequential Injection |
displacement | 6498 cc / 396.5 in³ |
bore | 95 mm / 3.7 in |
stroke | 76.4 mm / 3.0 in |
compression | 11.8:1 |
power | 515 kw / 690.6 bhp @ 8250 rpm |
specific output | 106.28 bhp per litre |
bhp/weight | 425.77 bhp per tonne |
torque | 690 nm / 508.9 ft lbs @ 5500 rpm |
redline | 8250 |
body / frame | Carbon Fiber Panels over Carbon Fiber Semi-Monocoque w/Aluminum Front & Rear Subframes |
driven wheels | 4WD |
wheel type | Aluminium Alloy |
front tires | 255/35R19 Pirelli |
rear tires | 335/30R20 Pirelli |
front brakes | Inner-Ventilated Carbon-Ceramic Discs w/6-Piston Calipers |
f brake size | 38 x 400 mm / 1.5 x 15.7 in |
rear brakes | Inner-Ventilated Carbon-Ceramic Discs w/6-Piston Calipers |
r brake size | 38 x 380 mm / 1.5 x 15.0 in |
front wheels | F 48.3 x 22.9 cm / 19 x 9 in |
rear wheels | R 50.8 x 30.5 cm / 20 x 12 in |
steering | Rack & Pinion w/Power Assist |
f suspension | Double Wishbones w/Inboard Dampers |
r suspension | Double Wishbones w/Inboard Dampers |
curb weight | 1622 kg / 3572 lbs |
weight distro | 43 % / 57 % |
wheelbase | 2700 mm / 106.3 in |
front track | 1720 mm / 67.7 in |
rear track | 1700 mm / 66.9 in |
length | 4780 mm / 188.2 in |
width | 2030 mm / 79.9 in |
height | 1136 mm / 44.7 in |
transmission | ISR Robotized 7-Speed AMT Gearbox |
tran clutch | Double-Plate Clutch |
top speed | ~350 kph / 217.35 mph |
0 – 1/4 mile | ~10.5 seconds |
0 – 100 kph | ~2.9 seconds |
urban fuel econ eu | 27.3 L/100 km or 8.62 mpg-us |
extra urban fuel econ eu | 11.3 L/100 km or 20.82 mpg-us |
combined fuel econ eu | 17.2 L/100 km or 13.68 mpg-us |
emission | 398 g/km |
fuel capacity | 90 litres or 23.76 gal. |
