2013 McLaren P1

In 2013 McLaren revealed their P1 supercar as their first hybrid-drive system. The car shares much with the MP4-12C, but employs a kinetic energy recovery system (KERS) in place of the starter motor.

The engine uses a bespoke block casting with the KERS system and larger turbo’s than the 12C. The result is 727 bhp from the turbocharged engine and 176.6 bhp from the e-motor which torque fills the turbo lag.

P1’s chassis is derived from the MP4-12C’s with hydraulic springing that can lower 50mm in race mode. The rear wing is also deployed in race mode that can be used to as an air brake during braking.

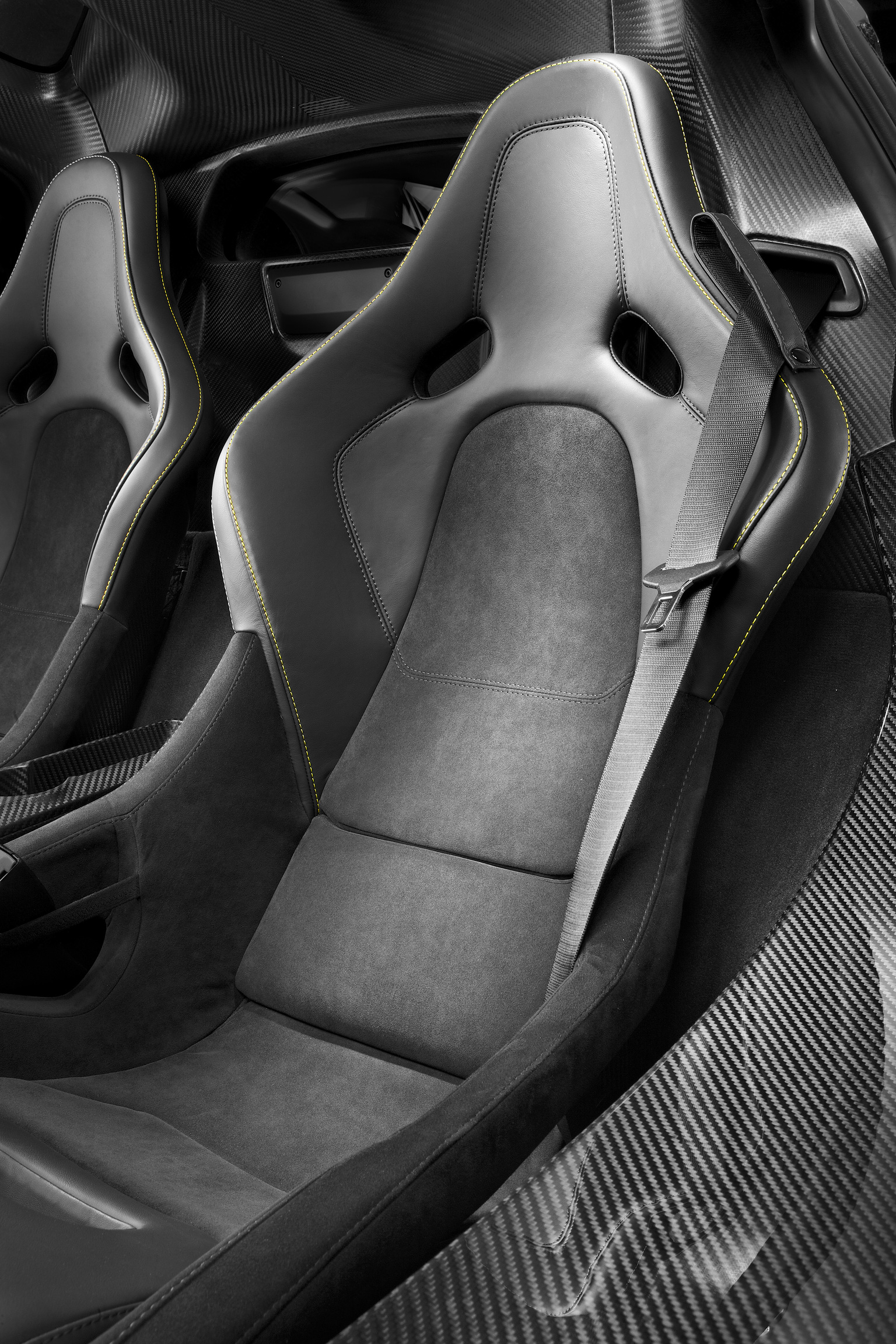

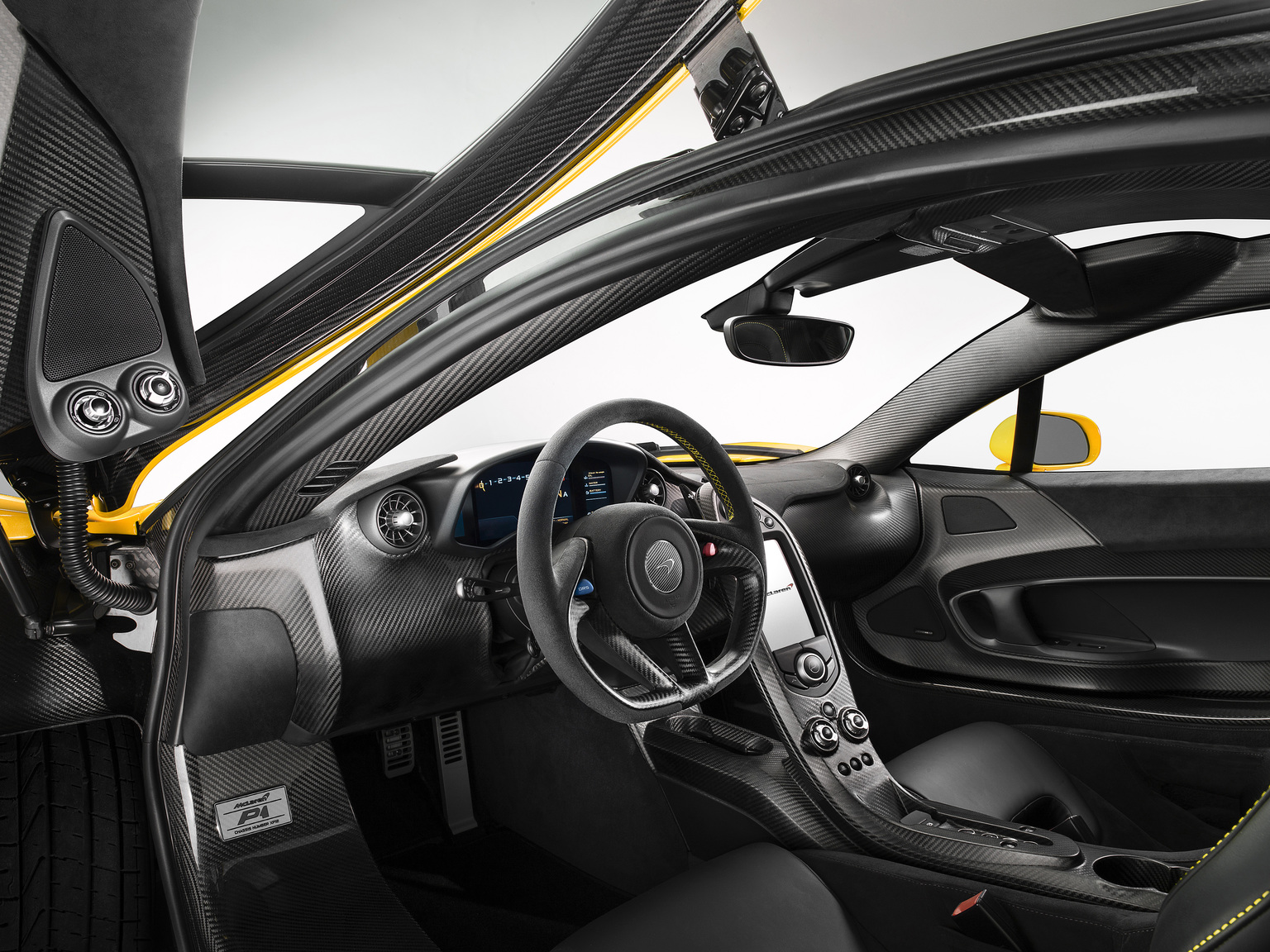

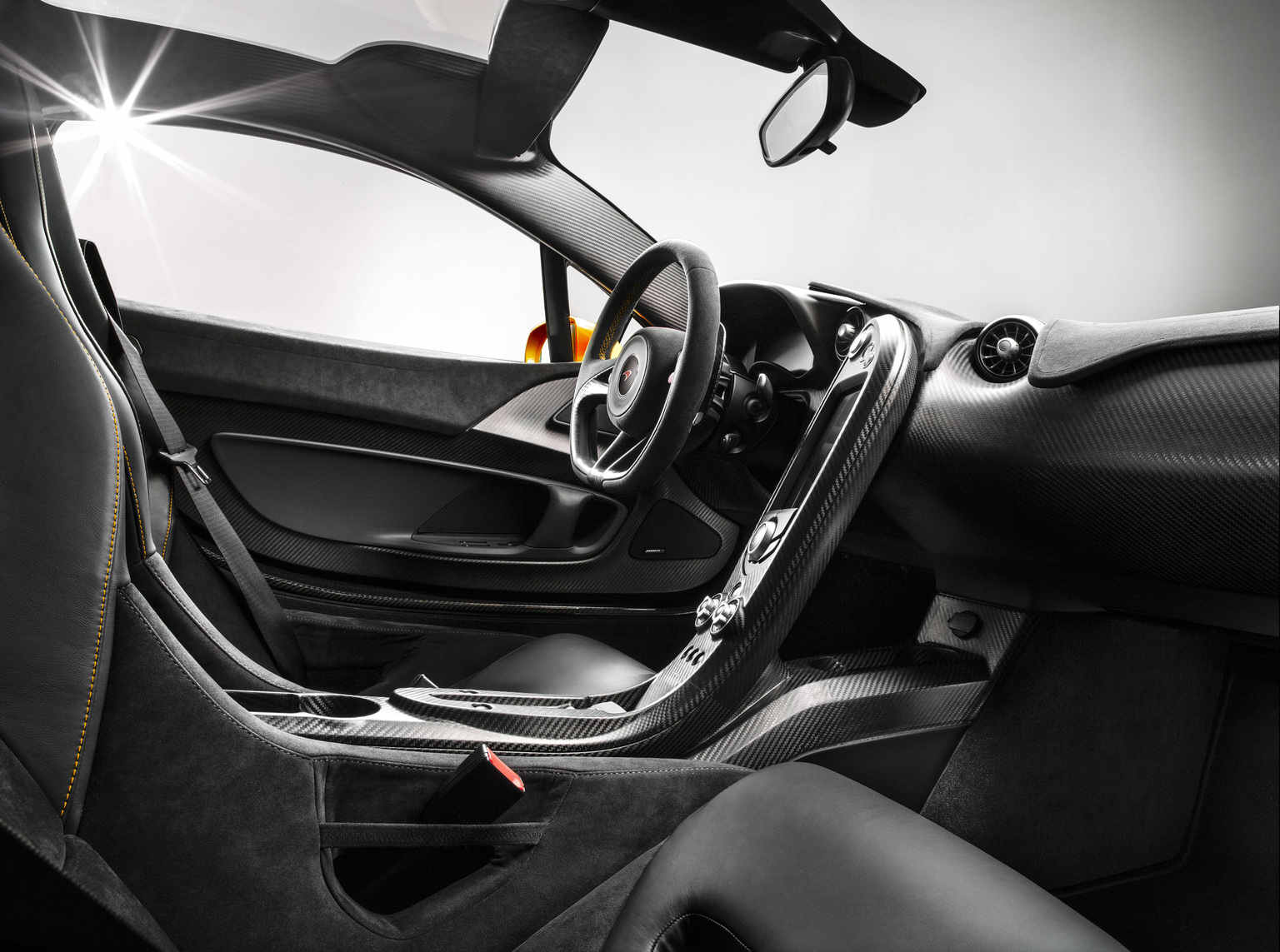

Despite being fully performance oriented, the P1 includes heated seats, a stereo, air conditioning and all the amenities of a high-end road car.

Press Release

McLaren Automotive will use its first ever international motor show appearance to preview its next generation ultimate supercar – the McLaren P1 – which takes much of its technological and spiritual inspiration from the company’s Racing division. The McLaren P1 has one simple goal: to be the best driver’s car in the world on road and track.

At the Paris Motor Show, Mondial de l’Automobile 2012, the McLaren P1 is previewed as a design study. Next year a production version, which the company aims to put on sale within 12 months, will be revealed.

‘The McLaren P1 will be the result of 50 years of racing and road car heritage,’ says McLaren Automotive Executive Chairman Ron Dennis. ‘Twenty years ago we raised the supercar performance bar with the McLaren F1 and our goal with the McLaren P1 is to redefine it once again.’

‘Our aim is not necessarily to be the fastest in absolute top speed but to be the quickest and most rewarding series production road car on a circuit,’ says McLaren Automotive Managing Director Antony Sheriff. ‘It is the true test of a supercar’s all round ability and a much more important technical statement. Our goal is to make the McLaren P1 the most exciting, most capable, most technologically advanced and most dynamically accomplished supercar ever made.’

When the McLaren P1 goes into production later next year, it will sit above the 12C and 12C Spider, in terms of both price and performance.

TWIN POWER

The McLaren P1™ will have the combined force of two highly-efficient powerplants, offering the optimum mix of superb throttle response, day-to-day drivability and top speed. A mid-mounted 3.8-litre twin-turbo V8 petrol engine and a highly effective electric motor give a combined output of 916PS (903 bhp) and a maximum torque figure of 900Nm, ensuring instantaneous throttle response through the rev range, more akin to a naturally aspirated engine. Emissions of less than 200g/km on the combined cycle are reduced to zero in full electric drive mode, while the Formula 1-derived DRS and IPAS technologies offer an increase in straight-line speed and an instant boost of power.

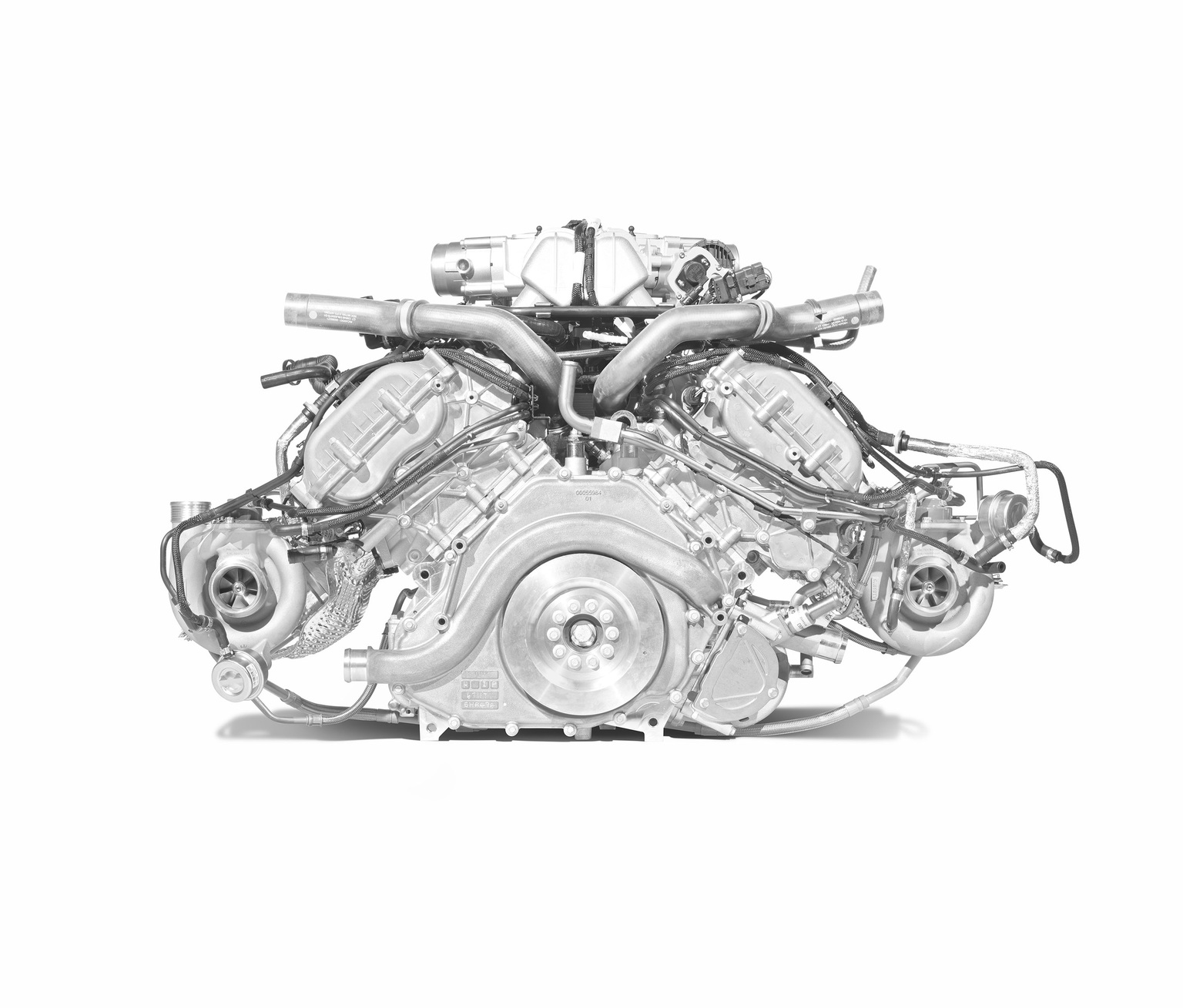

The 3.8-litre twin-turbo V8 petrol engine in the McLaren P1™ is a new version of the familiar M838T unit, that has been significantly upgraded to optimise cooling and durability under the higher loads. The engine block has a unique casting to incorporate the electric motor. The petrol engine produces 737PS (727 bhp) at 7,500rpm, and 720Nm of torque from 4,000rpm. To optimise efficiency of the petrol engine, extensive testing and development work has always been carried out with McLaren Automotive technology partner Mobil 1 on lubrication and hydraulic fluids.

The lightweight electric motor, developed by the McLaren Electronics arm of the Group, produces 179PS (176 bhp), and is unique to the McLaren P1™. The motor produces maximum torque of 260Nm instantly from a standstill, greatly increasing the throttle response of the McLaren P1™, and peak combined torque of 900Nm is delivered from just 4,000 rpm. In addition to this, the McLaren-developed ‘boost’ system, IPAS, provides up to 179PS instantly. The instant response of the electric motor provides a sharper throttle response more associated with a normally aspirated engine, and the significantly enhanced air-charging system enables the McLaren P1™ to have more top-end power – the perfect combination for high performance.

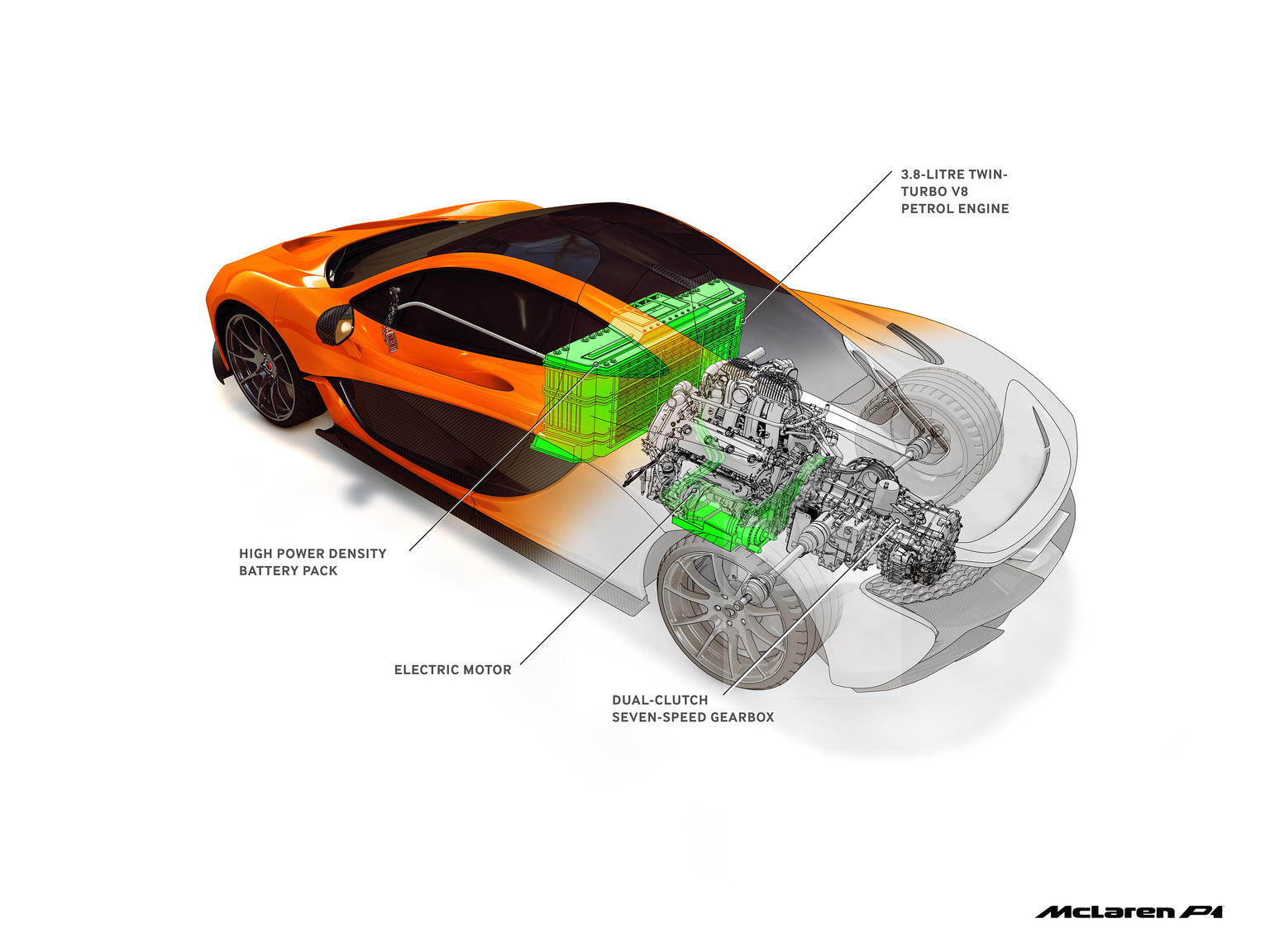

The electric motor is mounted directly onto the engine, and all drive is channelled through the dual-clutch seven-speed gearbox to drive the rear wheels. Thus, the electric motor and 3.8-litre twin-turbo V8 petrol engine work seamlessly together, providing more than just added ultimate power and torque.

A further benefit is that the e-motor can provide faster upshifts. This is achieved through the application of instant negative torque at the point of shift, making the engine revs drop as quickly and efficiently as possible to the required engine speed for the upshift.

In addition to the obsessive weight-saving measures demonstrated throughout the McLaren P1™, so too is the optimisation of usable energy. When off-throttle the electric motor provides additional drag torque, recovering energy to the battery that would otherwise be lost to the brakes.

E-mode

The McLaren P1™can be driven in a variety of modes, powered by the engine and electric motor together, or solely by the electric motor. This ensures versatility and ease of transportation, allows use in low emission zones and residential driving is optimised with near-silent running.

Maximum power comes when using both powerplants together, but even in E-mode the performance is strong. E-mode is the most economical mode available with zero tailpipe emissions. In E-mode, the McLaren P1™ can travel more than 10km with electric-only power – enough for most city journeys. When the battery is empty, the petrol engine will automatically start to maintain drive and charge the battery.

IPAS and DRS optimise performance and throttle response

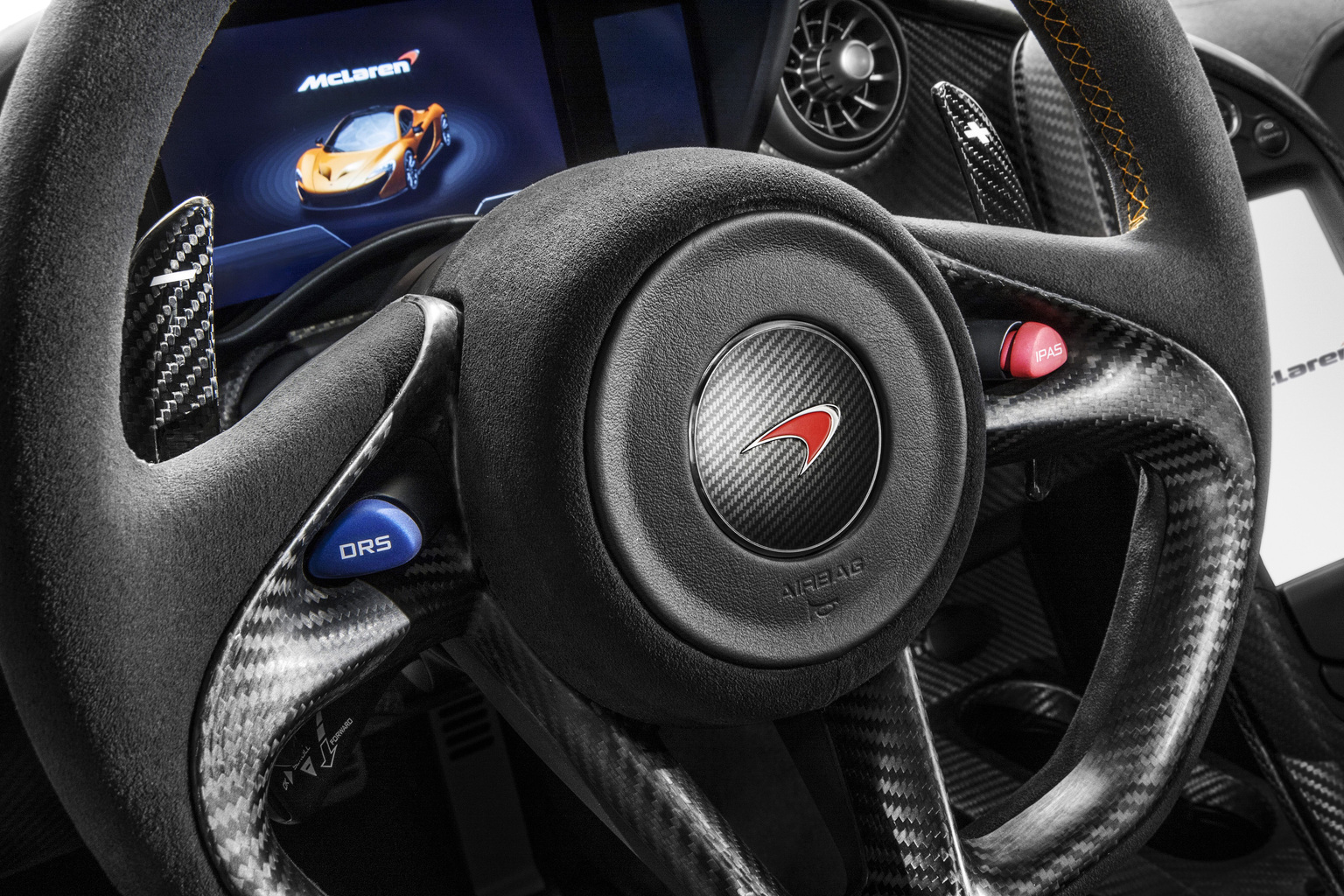

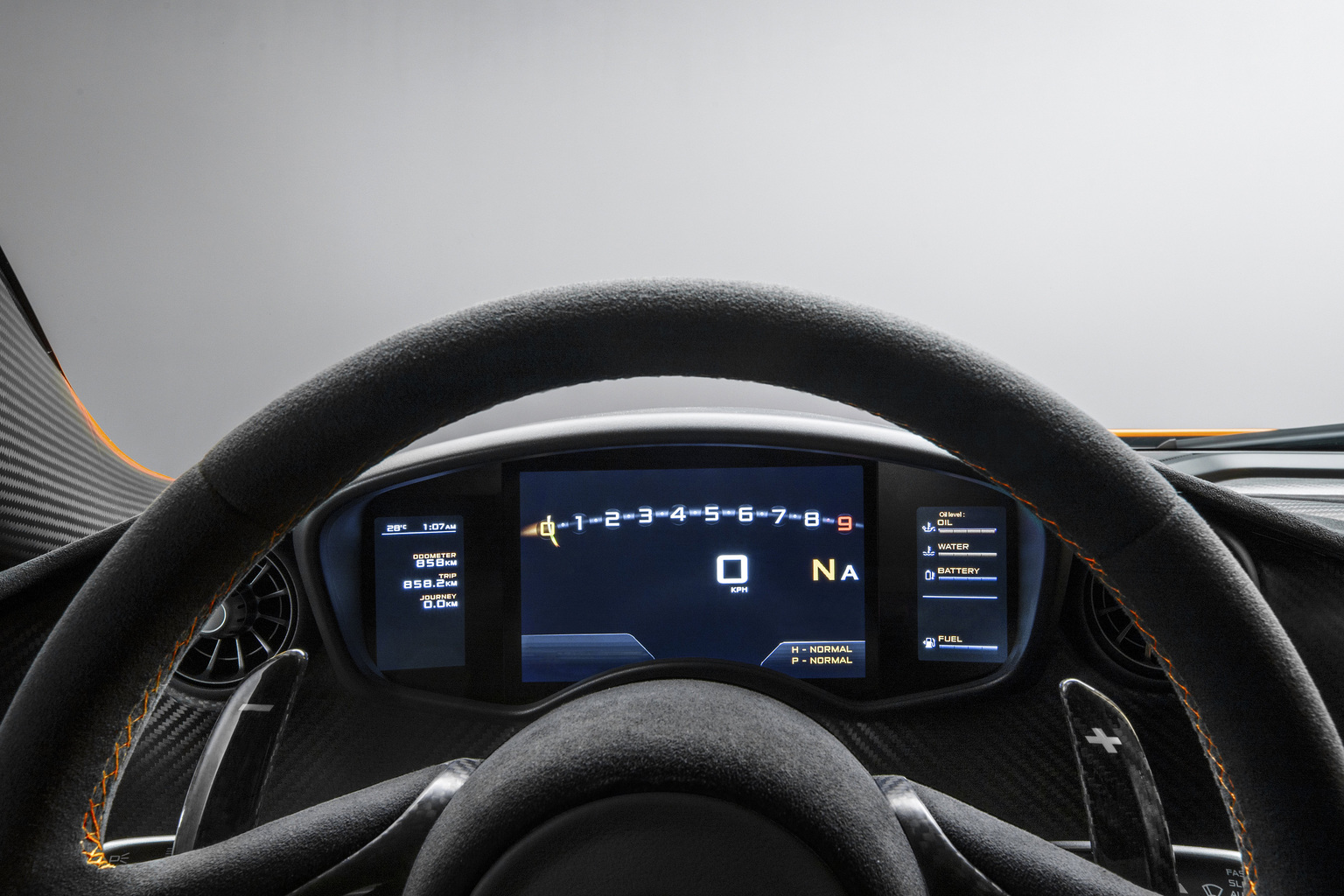

The power available via the petrol engine and electric motor is further enhanced on the McLaren P1™ through two steering wheel-mounted buttons which activate the DRS (Drag Reduction System) and IPAS (Instant Power Assist System).

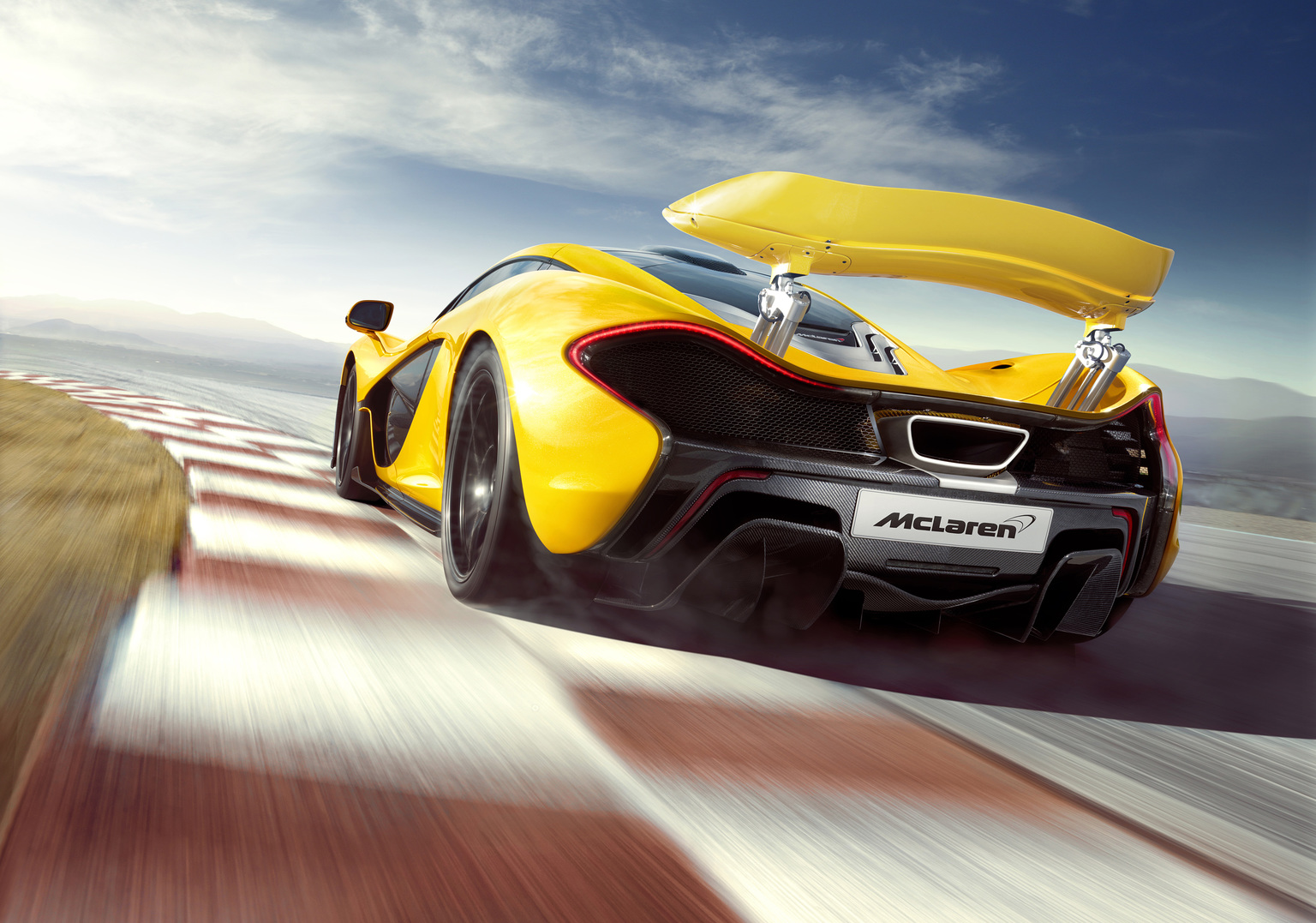

The Drag Reduction System used on the McLaren P1™ is a technology similar to that employed on Formula 1 cars. Speed is increased by reducing the amount of drag on the rear wing and, where the MP4-28 has a moveable flap on the rear wing, the McLaren P1™ has a wing that reduces in angle to lower drag by 23%. The system immediately deactivates when the button is released, or if the driver touches the brake pedal.

IPAS is designed to deliver power rapidly for high performance acceleration, and provides 179PS of instant additional power. In developing the IPAS technology for the McLaren P1™, power delivery was prioritised over energy storage. This is achieved through a groundbreaking, lightweight battery pack, which offers greater power density than any other automotive battery pack on sale today.

Battery

The high power density has been achieved through a combination of high power cells, low pack weight and an innovative cooling system. The battery weighs just 96kg, and is mounted onto the underbody of the high-strength Formula 1-grade carbon fibre MonoCage chassis, which seals the unit in the vehicle, thus avoiding the added weight of any unnecessary battery packaging.

Due to the amount of power being supplied by the battery, complex cooling is required to guarantee cell performance and reliability. The coolant flow is balanced so each cell is cooled to the same temperature across the entire pack.

In addition to the battery being charged via the engine, the McLaren P1™ is also equipped with a plug-in charger which can recharge the battery, from empty, in only two hours. The plug-in charger can be stored in the luggage compartment, although the customer may choose to store it off-board – in a garage or the pits – to save weight.

Further details of the McLaren P1™ will be released in the coming weeks, before the production-ready car makes its world debut at the Geneva Motor Show next month.

Story by McLaren Automotive Limited

In Detail

submitted by	Official Galleries
type	Series Production Car
built at	England
production	375
price $	$ 1,150,000
price €/td>	€1,000,000
price £/td>	£866,000
engine	90º M838T V8 w/Electric Motor
position	Mid, Longitudinal
aspiration	Twin Turbo
block material	Aluminum
valvetrain	DOHC, 4 Valves per Cyl w/dual VVT
displacement	3799 cc / 231.83 in³
bore	93 mm / 3.66 in
stroke	69.9 mm / 2.75 in
compression	8.1:1
power	673.8 kw / 903.6 bhp
specific output	237.85 bhp per litre
bhp/weight	623.17 bhp per tonne
torque	900 nm / 663.8 ft lbs
body / frame	Carbon Fiber Monocoque ‘MonoCell’ w/Aluminum Front & Rear Subframes
driven wheels	AWD
front tires	245/35 ZR19 Pirelli P Zero Corsa
rear tires	315/30 ZR20 Pirelli P Zero Corsa
front brakes	Akebono Carbon Ceramic Discs
rear brakes	Akebono Carbon Ceramic Discs
front wheels	F 48.3 x 22.9 cm / 19 x 9 in
rear wheels	R 50.8 x 29.2 cm / 20 x 11.5 in
f suspension	Control Arms w/Coil Springs, Adjustabek Shocks, Hydraulic Anti-Roll
r suspension	Control Arms w/Coil Springs, Adjustabek Shocks, Hydraulic Anti-Roll
curb weight	1450 kg / 3197 lbs
dry weight	1395 kg / 3076 lbs
wheelbase	2670 mm / 105.1 in
front track	1658 mm / 65.3 in
rear track	1604 mm / 63.1 in
length	4588 mm / 180.6 in
width	1946 mm / 76.6 in
height	1188 mm / 46.8 in
transmission	7-Speed SSG Automatic
top speed	~350 kph / 217.35 mph electronically limited
0 – 60 mph	~2.6 seconds
0 – 100 mph	~4.7 seconds
0 – 1/4 mile	~9.8 seconds at 245 kph / 152.15 mph
0 – 100 kph	~2.8 seconds
0 – 200 kph	~6.8 seconds
combined fuel econ eu	8.3 L/100 km or 28.34 mpg-us
emission	194 g/km

Auction Sales History

2015 McLaren P1 SBM12ABA2FW000220 – sold for $1,925,000 This 2015 P1, numbered 220, is finished in Volcano Orange, with a leather, Alcantara, and carbon-fiber interior. At the time of cataloguing, this immaculate P1 had covered less than 200 miles since new.
