2012 Aston Martin Project AM 310

2012 Aston Martin Project AM 310

2012 Aston Martin Project AM 310

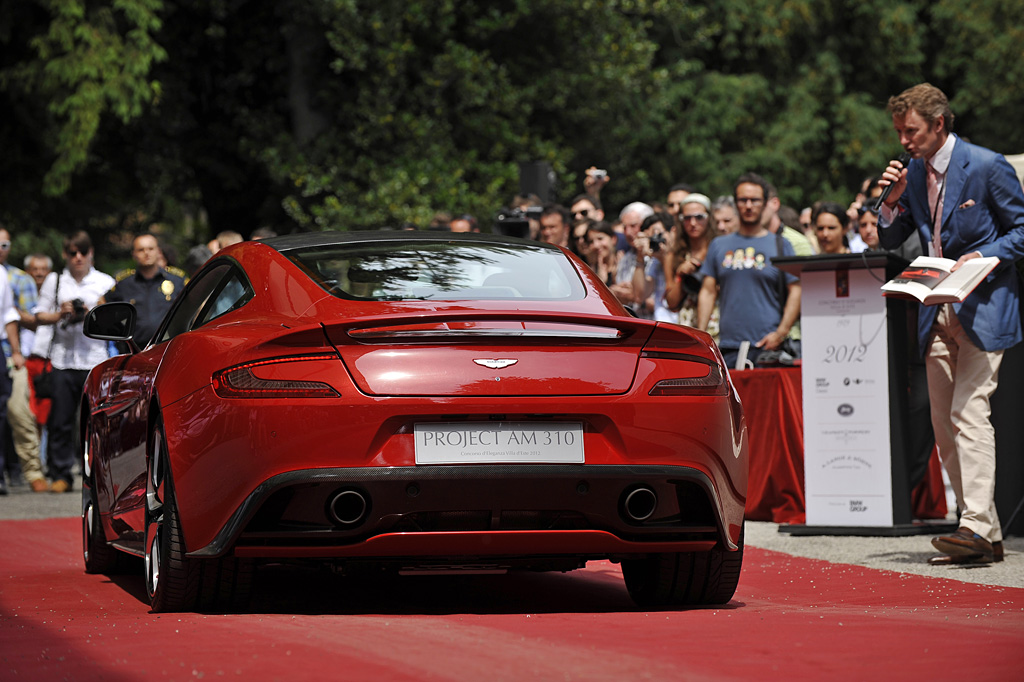

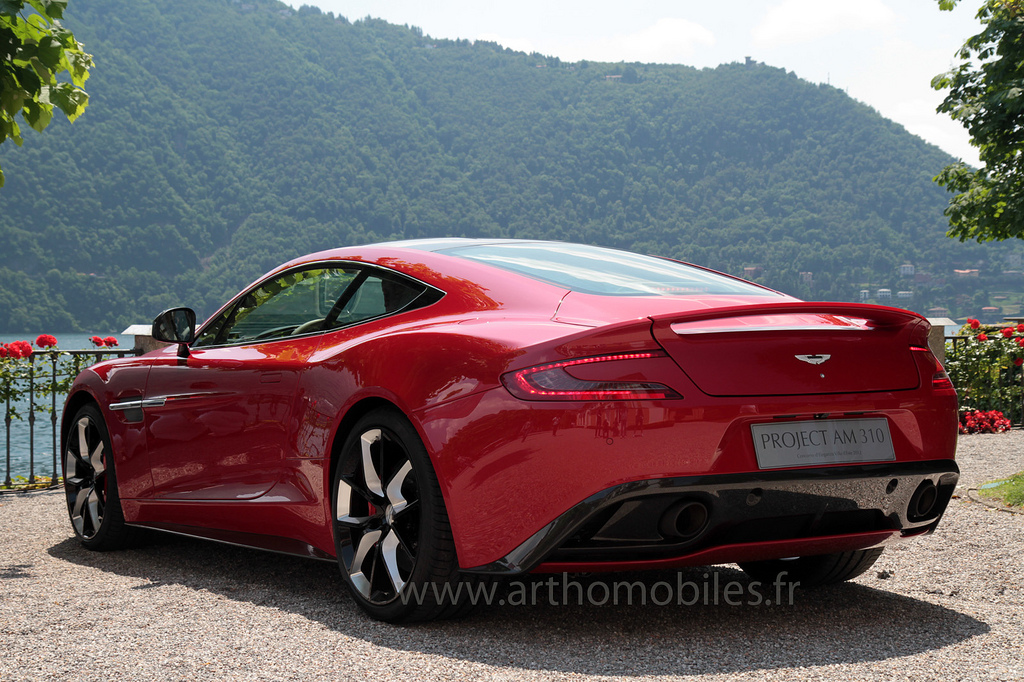

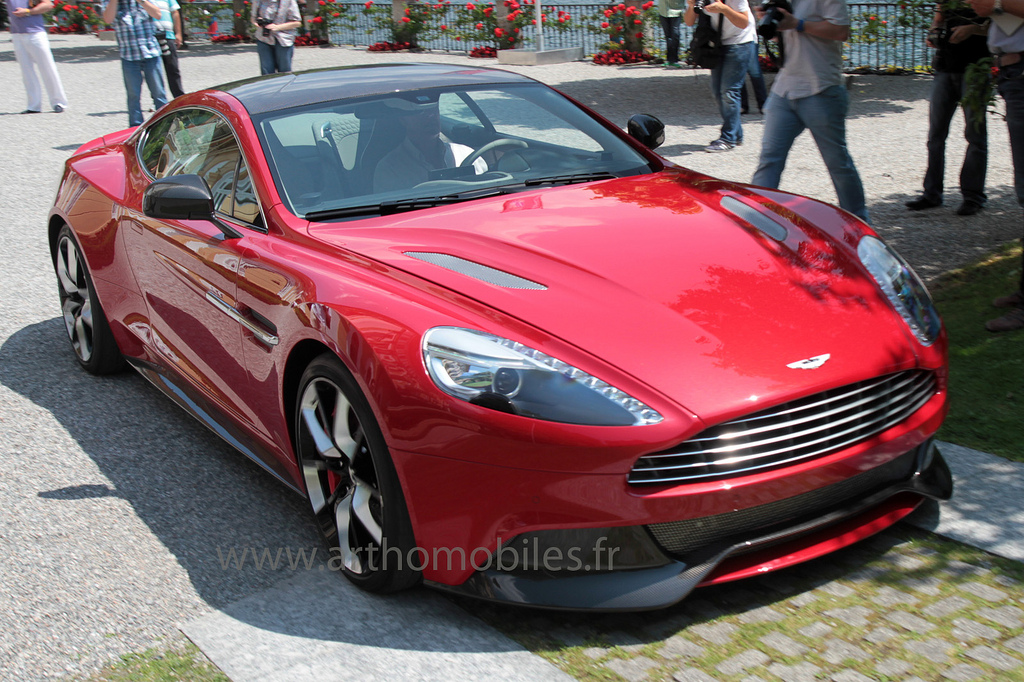

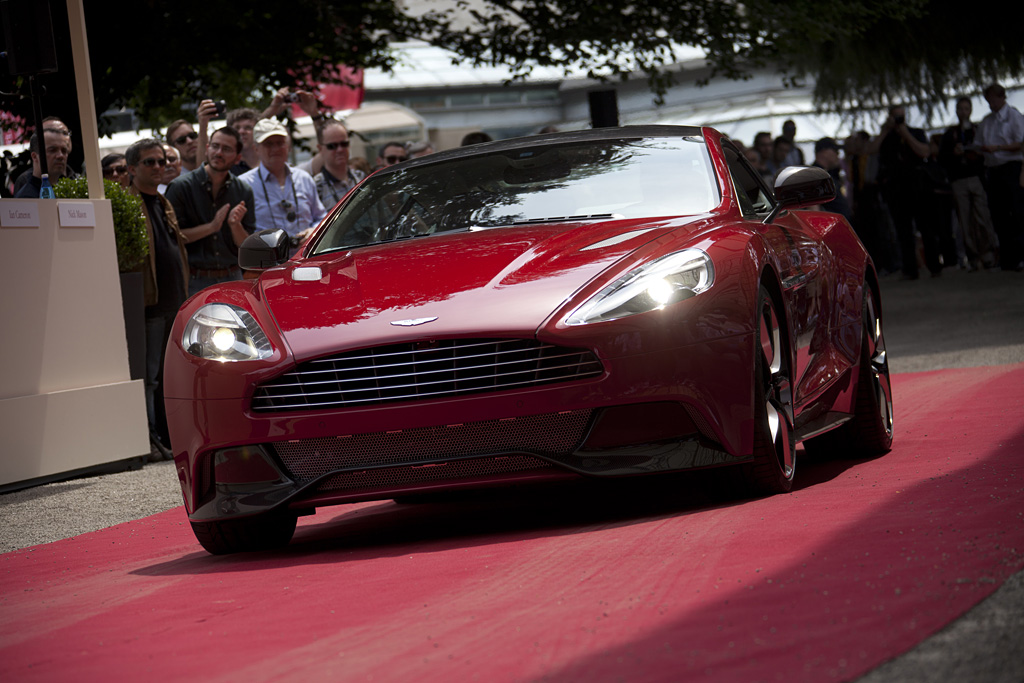

At the 2012 Concorso d’Eleganza Villa d’Este Aston Martin brought out a new concept which successfully synthesizes the One-77 design cues with the rest of the DB9, DBS, Virage line.

Story by Supercars.net

In Detail

submitted by Richard Owen
type Concept / Prototype Car
released at 2012 Villa d’Este
built at Gaydon, Warwickshire, England
production 1
engine Alloy V12
position Front Longitudinal
aspiration Natural
block material Aluminum
valvetrain Chain Driven DOHC, 4 Valves per Cyl
fuel feed Electronic Fuel Injection
displacement 5935 cc / 362.2 in³
bore 89 mm / 3.5 in
stroke 79.5 mm / 3.1 in
compression 10.9:1
power 380.3 kw / 510 bhp @ 6500 rpm
specific output 85.93 bhp per litre
torque 569.44 nm / 420 ft lbs @ 5750 rpm
redline 6800
body / frame Aluminium, Magnesium Alloy & Carbon-fibre composite body over Aluminum VH Structure
driven wheels RWD w/LSD, DSC
wheel type Cast Alloy Wheels w/Graphite Finish
front tires 245/35-20 Pirelli P Zero
rear tires 295/30-20 Pirelli P Zero
front brakes Vented Carbon Ceramic Discs w/6-Piston Calipers, ABS, EBD
rear brakes Vented Carbon Ceramic Discs w/4-Piston Calipers, ABS, EBD
front wheels F 50.8 x 21.6 cm / 20 x 8.5 in
rear wheels R 50.8 x 27.9 cm / 20 x 11 in
steering Rack & Pinion w/Servotronic Speed-Sensitive Power Assist
f suspension Double Wishbones w/Coil Springs, Anti-Roll Bar, Active Dampers
r suspension Double Wishbones w/Coil Springs, Anti-Roll Bar, Active Dampers
transmission 6-Speed Transaxle
gear ratios 3.15:1, 1.95:1, 1.44:1, 1.15:1, 0.94:1, 0.76:1
final drive 3.71:1
