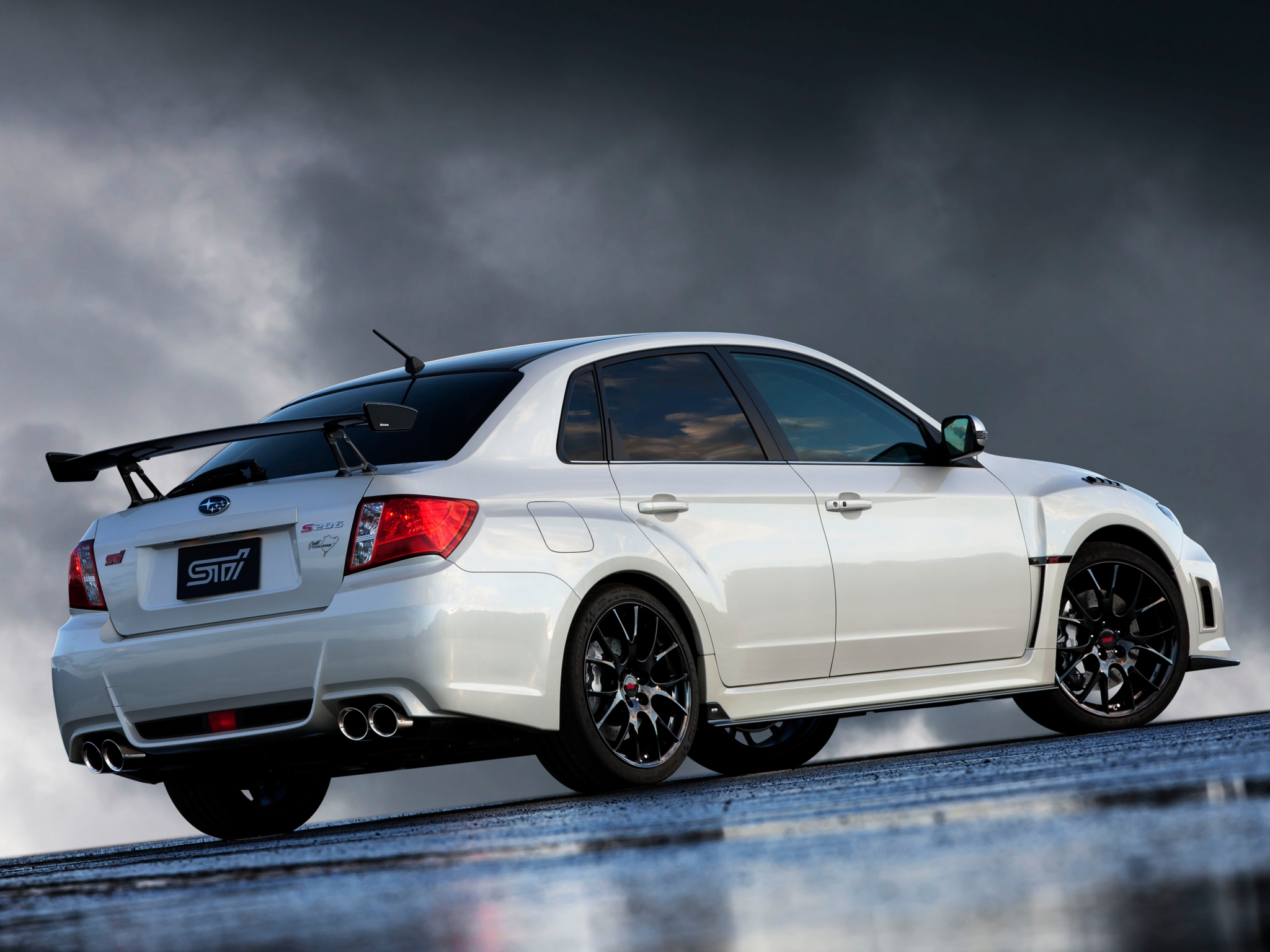

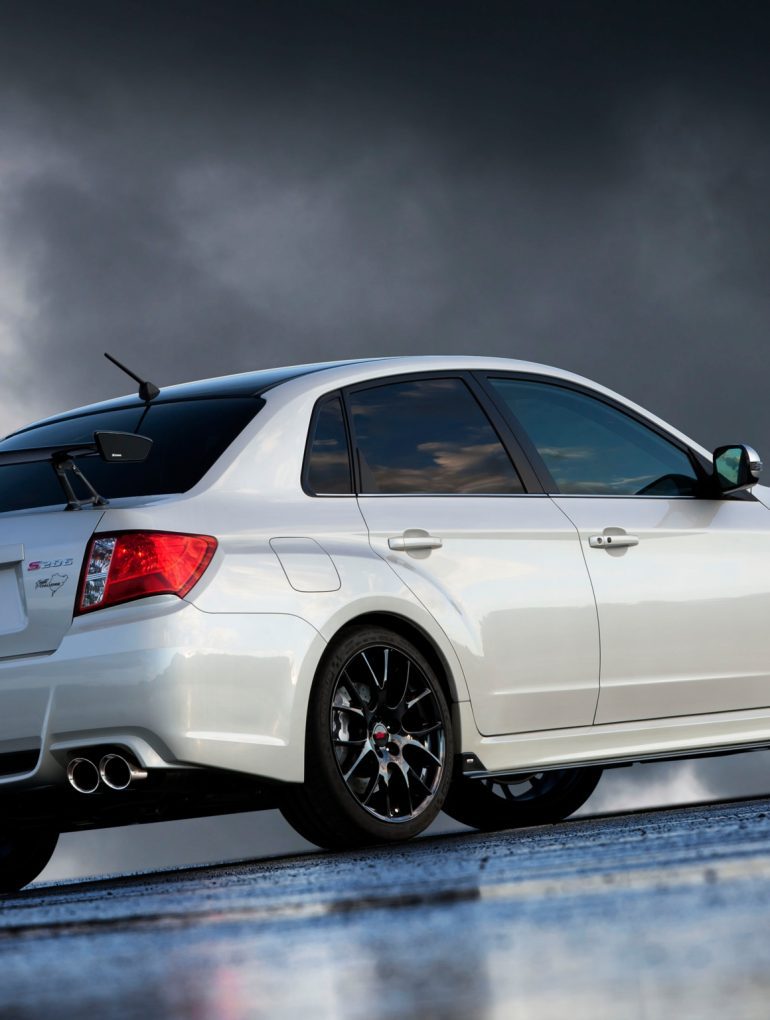

2011 Subaru Impreza WRX STI S206 NBR Challenge Package
Tokyo, November 24, 2011 – Subaru Tecnica International Inc. (STI) is pleased to announce the launch of the SUBARU IMPREZA WRX STI “S206”, special performance edition. The model will go on sale today through Subaru dealerships in Japan.
Based on the 4-door SUBARU IMPREZA WRX STI, S206 is the newest model in STI’s ‘S’ series. This series dons the crown of STI tuned cars with advanced driving performance and exclusively-made items in both interior and exterior designs. As with former STI models such as S204 and R205, S206 is founded on the IMPREZA WRX STI line.
In addition, “NBR CHALLENGE PACKAGE” model will be released to commemorate the class win at 24 Hours Nürburgring endurance race held in June, with the addition of a carbon roof and original dry carbon rear spoiler. The exterior design incorporates racing car motifs and has an enhanced sporty feel.
S206’s body and engine were tuned to perform as expected of STI’s best model. The body employs exclusive Bilstein shock absorbers, STI coil springs, a flexible tower bar (front), and a flexible draw stiffener (front). While improving straight-driving performance, motion is steadied when going into corners so that precise and quick turning is possible. Plus, “Michelin Pilot Super Sport” tires provide refined driving comfort in combination with “BBS” 19-inch aluminum wheels made only for this model.
In the exclusively-made engine, the weight balance between piston, connecting rod, and crankshaft is optimized to enhance the rev feel. Along with a ball bearing turbocharger, ECU (Engine Control Unit) with STI tuning, and a sports muffler with lowered back pressure exhaust – all of which were designed for this model – the engine can deliver 235kW (320PS) in maximum output and 431N.m (44kg.m) in maximum torque. The accelerator response is heightened and low to mid range torque increased, thereby offering better driveability.
On the outside, the lower front spoiler and front fender outlet grille, both designed for this model, and the trunk spoiler are among its distinctive features. The newly-made front grille and side garnishes were also employed for aerodynamics improvement and a high grade appearance.
In the interior are exclusively-made items such as a genuine leather-wrapped steering wheel, ‘RECARO’ racing bucket seats, and seatbelts. Together they create a refined appearance and feel, appropriate for this flagship model.
Major equipment of Subaru Impreza S206
Mechanism
STI tuned Bilstein upside down strut and STI coil springs for front suspension
STI tuned Bilstein damper and STI coil springs for rear suspension
S206 BBS designed 19-inch x 8 1/2J forged aluminum wheels (silver)
Michelin Pilot Super Sports 245/35ZR19(93Y) tires
Brembo 6-pot silver colored brake caliper with STI logo and 18-inch 2piece type drilled disk rotors for front brake
Brembo 4-pot silver colored brake caliper with STI logo and 18-inch drilled disk rotors for rear brake
STI designed flexible front strut tower brace
STI designed flexible draw stiffener, front
STI designed flexible support, rear
STI designed support, front kit
STI designed lateral rink with pillow ball bush (front inside, rear inside)
S206 engine balanced with STI
STI designed S206 ECU (Engine Control Unit)
S206 twin scroll ball bearing turbocharger
STI designed S206 sport muffler with lowered back pressure exhaust
Large intercooler with S206 logo
STI designed strengthened silicon intake duct
STI designed air cleaner element
S206 multi mode VDC (Vehicle Dynamics Control)
Interior
S206 RECARO designed front bucket seat
S206 seat fabric, ALCANTARA® with black punching / red base, leather seat support (dark gray) with silver stitch
S206 door trim & centered arm rest (black ALCANTARA® with silver stitch)
S206 dark red colored seat belt
S206 silver side sill plate with S206 logo (front)
S206 leather lapped steering wheel with STI logo and silver stitch
STI designed leather shift knob with STI logo and leather shift boot
S206 leather side brake boot
STI designed push engine start switch (red with STI logo)
S206 serial number plate (console, engine compartment)
Exterior
S206 large front under spoiler
S206 front fender outlet grille
Aluminum front hood
STI designed trunk lip spoiler
S206 badges on front grille and rear gate
STI designed side garnish with STI logo (black metallic)
Exclusive for NBR CHALLENGE PACKAGE
S206 dry carbon rear spoiler (2 angle adjustable with S206 logo)
BBS designed 19-inch x 8 1/2J cast aluminum wheels (black)
S206 Nürburgring Challenge sticker (rear)
S206 red side sill plate with S206 logo (front)
In Detail
| submitted by | admin |
| type | Series Production Car |
| released at | 2011 Tokyo Motor Show |
| built at | Japan |
| engine | Flat-4 |
| position | Front, Longitudinal |
| aspiration | Turbocharged |
| valvetrain | DOHC , 4 Valves per Cyl |
| displacement | 2457 cc / 149.94 in³ |
| power | 235 kw / 315.1 bhp @ 6000 rpm |
| specific output | 128.25 bhp per litre |
| bhp/weight | 209.37 bhp per tonne |
| torque | 431 nm / 317.9 ft lbs @ 4000 rpm |
| body / frame | Unitary Steel Monocoque |
| driven wheels | 4WD |
| wheel type | S206 BBS |
| front tires | Michelin Pilot Super Sports 245/35ZR19(93Y) |
| rear tires | Michelin Pilot Super Sports 245/35ZR19(93Y) |
| front brakes | Ventilated Discs w/Brembro 6-Piston Calipers |
| rear brakes | Ventilated Discs w/Brembro 4-Piston Calipers |
| front wheels | F 48.3 x 21.6 cm / 19 x 8.5 in |
| rear wheels | R 48.3 x 21.6 cm / 19 x 8.5 in |
| f suspension | MacPherson/Bilstein Struts w/STI Coil Springs, Dampers, Anti-Roll Bar |
| r suspension | Multi Link Struts w/STI Coil Springs, Bilstein Dampers, Anti-Roll Bar |
| curb weight | 1505 kg / 3319 lbs |
| length | 4580 mm / 180.3 in |
| width | 1795 mm / 70.7 in |
| height | 1470 mm / 57.9 in |
| transmission | 6-Speed Manual |
