2008 Mercedes-Benz SL 63 AMG

Feb 08, 2008 Affalterbach – Emotional performance courtesy of cutting-edge engineering: the new Mercedes-Benz SL 63 AMG in a nutshell. The roadster is powered by an AMG 6.3-litre V8 engine developing 386 kW/525 hp and 630 Newton metres – which makes it today’s most powerful model with a V8 naturally aspirated engine in its class.

New AMG Speedshift MCT-7 Transmission

The SL 63 AMG comes exclusively with the all-new, innovative AMG Speedshift MCT 7-speed sports transmission. The newly developed power transfer concept features a compact, wet start-up clutch that replaces the conventional torque converter. The resulting direct connection to the powertrain, together with the double-declutching and Race Start functions, guarantees an extremely emotional, supremely dynamic driving experience.

The high-tech transmission is designed for high torque and maximum revs up to 7200 rpm. It also comes with sufficient reserves even under the highest loads thanks to its high-performance oil cooling system. An all-new, sophisticated electronic transmission control unit fully controls and monitors all processes. A new two-stage torsion damper effectively eliminates vibrations.

At the heart of the new AMG Speedshift MCT 7-speed sports transmission lies the wet start-up clutch, which runs in an oil bath and replaces the previous torque converter. Thanks to its low rotational inertia, the transmission responds instantaneously and dynamically with no slip. Accelerator pedal movements trigger an instant traction response. Fitted with four drive modes: “C” (Comfort), “S” (Sport), “S+” (Sport plus) and “M” (Manual), the transmission provides gearshifting with no loss of tractive force and supports customised control strategies for maximum driving pleasure. “M” is the sportiest mode: here the AMG 6.3-litre V8 engine has even more bite, added to which the transmission shifts gear another 10 percent faster – a reduction of 50 percent compared with “C” mode. In “M” mode the gearshifts take just 100 milliseconds.

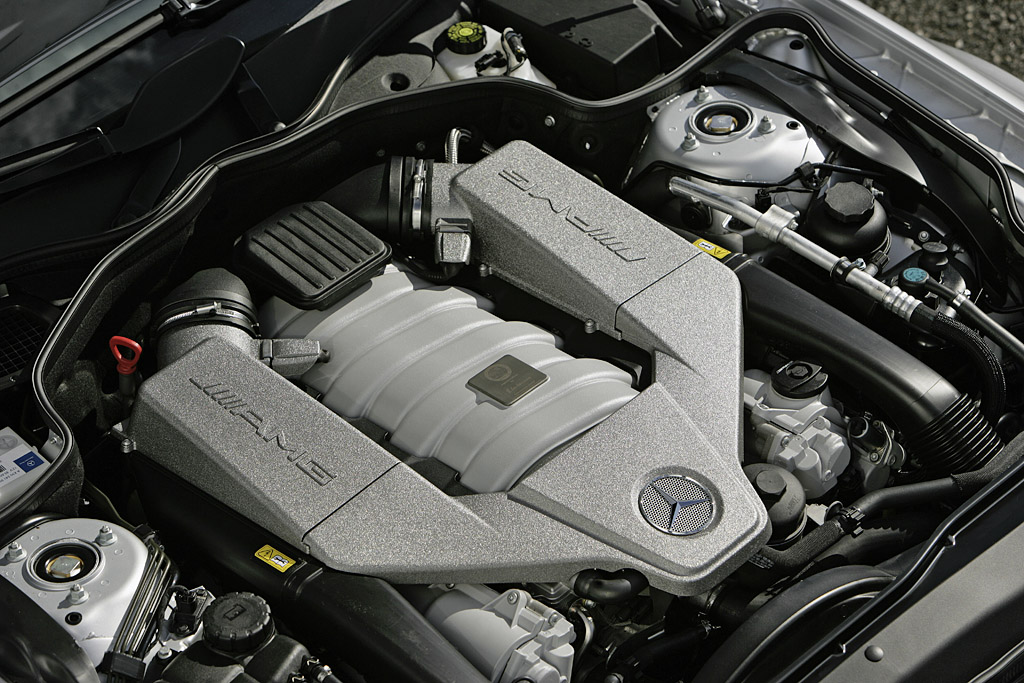

AMG 6.3-litre V8 naturally aspirated engine with 386 kW/525 hp

The AMG 6.3-litre V8 engine teams up with the AMG Speedshift MCT 7-speed sports transmission to form a perfect partnership for dynamic driving pleasure and outstanding performance. The SL 63 AMG accelerates from 0 to 100 km/h in 4.6 seconds before quickly going on to a top speed of 250 km/h (electronically limited). The high-revving naturally aspirated engine generates 386 kW/525 hp at 6800 rpm from a displacement of 6208 cubic centimetres, delivering maximum torque of 630 Newton metres at 5200 rpm. The unique combination of high-revving concept and large displacement achieves the best of both worlds: high pulling power at low engine speeds coupled with exhilarating high-revving flexibility – right up to 7200 rpm.

The AMG V8 is packed with a wealth of fascinating racetrack technology, including the lightweight, extra-rigid closed-deck crankcase and cylinder walls with a revolutionary TWAS coating as well as the valve train designed for high engine speeds with bucket tappets in the cylinder heads. The vertical arrangement of the intake and exhaust ports together with the variable intake manifold featuring two integral throttle flaps results in superlative cylinder charging and high power output.

AMG sports suspension based on Active Body Control and 3-stage ESPÒ

The dynamic drive unit finds its perfect match in the SL 63 AMG suspension. The AMG sports suspension based on Active Body Control has been further enhanced and not only comes with new spring and damper tuning but also completely modified elastokinematics. The front axle bearings, the spring links and the torque strut along with individual strut bearings at the rear have been retuned to deliver greater agility and shorter stopping distances. In partnership with the optimised speed-sensitive power steering the SL 63 AMG now feels even more direct and livelier – enabling the driver to fully utilise the linear steering and oversteer/understeer characteristics typical of a sports car, especially on winding roads or a private racetrack. The AMG sports suspension based on Active Body Control also enables the suspension set-up to be customised. At the push of a button, the driver can select a sporty, firm response with reduced roll angles, or go for a comfort-focussed setting for excellent comfort on long journeys.

Also new is the 3-stage ESP Ò with sports function. This system provides three different settings and is the logical development of the AMG ESPÒ philosophy. The driver can choose between the settings “ESP ON”, “ESP SPORT” and “ESP OFF” by pressing the ESP Ò button in the AMG DRIVE UNIT – the activated setting is shown in the central display in the AMG instrument cluster.
AMG high-performance braking system and 19-inch AMG light-alloy wheels
The AMG high-performance braking system rises to the exacting requirements associated with consummate driving dynamics. The front wheels are equipped with internally ventilated, perforated 360 x 36-millimetre composite disc brakes with six-piston aluminium fixed callipers, while deceleration at the rear comes courtesy of internally ventilated, perforated 330 x 26-millimetre brake discs with four-piston fixed callipers. The result is the shortest stopping distances, outstanding sensitivity and remarkable resistance to fading.

The 19-inch AMG light-alloy wheels with their alluring triple-spoke styling and titanium grey finish plus high-sheen star on the centre of the wheel are also new. 255/35 R 19 (front) and 285/30 R 19 (rear) tyres are fitted to the 8.5 and 9.5-inch-wide wheels. The 19-inch AMG light-alloy wheels with their striking design blend in harmoniously with the new AMG bodystyling.

New AMG bodystyling ensures clear differentiation

The appearance of the SL 63 AMG now gives away its exceptional status more than ever before. The new-look front apron with a more pronounced wedge shape, black-painted radiator grille, larger cooling air intakes and lower transverse fin painted in black harmonises perfectly with the redesigned front end of the SL‑Class, giving it a decidedly masculine aura. The distinctive AMG bonnet more than hints at the unique power unit underneath. Bi-xenon headlamps with their dark surrounds, and large round fog lamps set well to the side in chrome surrounds also emphasise the vehicle’s width. The hot air from the additional engine oil cooler in the front wheel arch escapes through side air outlets in the front apron. New exterior mirrors featuring LED indicators with a pronounced arrow shape catch the eye as do the matt-silver-painted AMG trim panels on the front wings with “6.3 AMG” lettering.

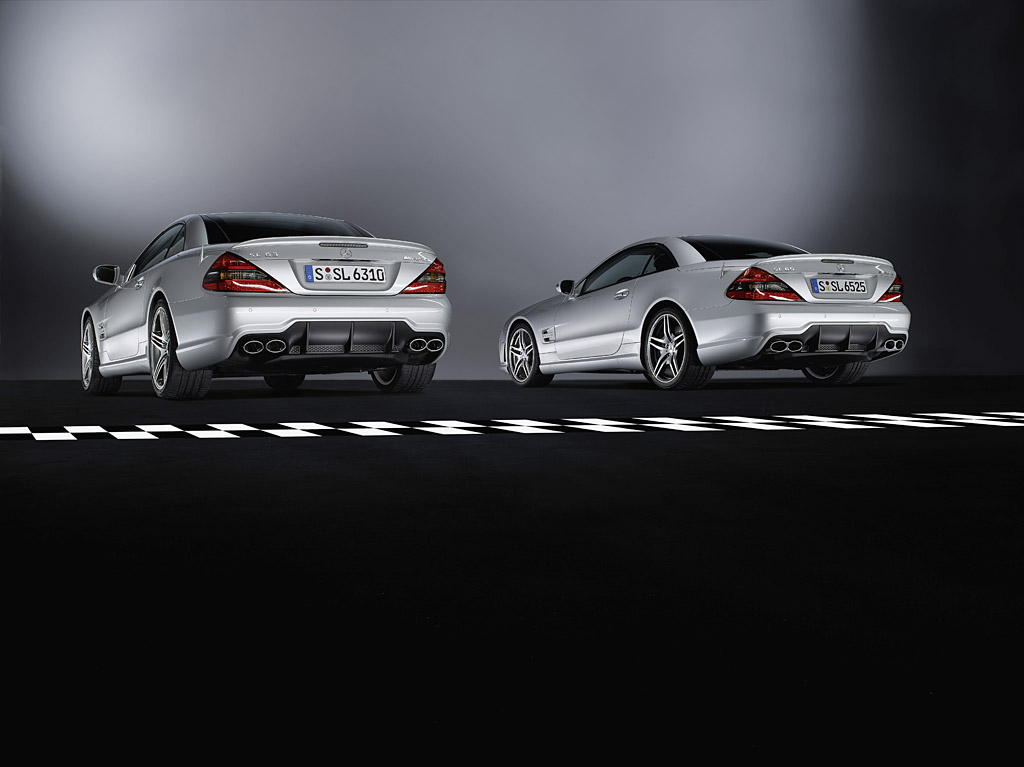

The AMG bodystyling also includes the AMG side skirts and the powerful AMG rear apron with its large black diffusor insert. A visual and acoustic feast comes in the guise of the AMG sports exhaust with two chromed twin tailpipes. The AMG spoiler lip on the boot lid reduces lift especially at high speeds.

Interior featuring new AMG sports steering wheel with three-spoke design

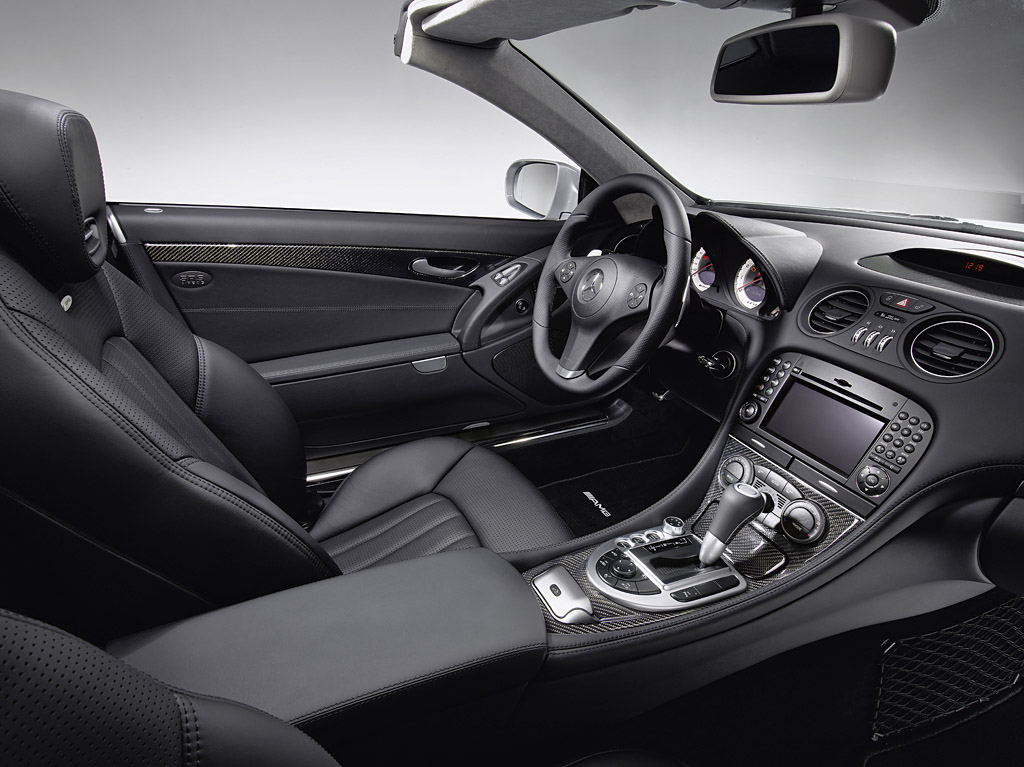

The interior of the new SL 63 AMG offers an alluring combination of exclusive equipment details and a dynamic, practical look. The eye is drawn to the new AMG ergonomic sports steering wheel with its three-spoke design and aluminium AMG shift paddles. The grip area is specially shaped and covered in perforated leather, while the vertical spoke is embellished by a silver-coloured insert. Behind sits the new AMG instrument cluster with “6.3 V8” lettering on the rev counter and the new-look instrument cluster trimmed in nappa leather with double topstitching above the round gauges. As soon as the ignition is switched on, the speedometer and rev counter needles rotate in unison around the dials to their maximum values and then instantly revert to their original positions.

The AMG main menu integrated in the AMG instrument cluster displays the currently engaged gear including recommended upshifts, the “RACETIMER” with lap times, information on the engine oil temperature and battery voltage, along with the activated transmission drive mode including Race Start and the selected ESP Ò mode. New, exclusive equipment for the SL 63 AMG with AMG Speedshft MCT 7-speed sports transmission includes the AMG selector lever in a leather/carbon-fibre finish and the stylishly integrated AMG DRIVE UNIT with rotary switch for the four drive modes and buttons for ESP Ò , suspension set-up and the AMG mode.

Optional extra Performance Pack

The Performance Package developed in the AMG Performance STUDIO is also available for the SL 63 AMG; it includes even more powerful components and is ideally suited for drivers with sporty inclinations:

-Internally ventilated composite brake discs, size 390 x 36 mm, on the front axle
– Multiple-disc limited-slip rear differential with a locking factor of 40 percent for enhanced traction
– 19-inch AMG twin-spoke forged light-alloy wheels with mixed-size tyres, 255/35 R 19 and 285/30 R 19
-AMG performance suspension based on Active Body Control
-AMG performance steering wheel with smaller diameter, flattened underside, silver-coloured aluminium shift paddles

Interested customers can now order the SL 63 AMG and SL 65 AMG; the new AMG Roadsters will be launched in April 2008.

In Detail

tags	r230, sl63
submitted by	Richard Owen
type	Series Production Car
price $	$ €145,239.50
engine	r M156 V8
position	Front Longitudinal
aspiration	Twin Turbo
valvetrain	DOHC, 4 Valves per Cylinder
fuel feed	Fuel Injection
displacement	6208 cc / 378.8 in³
bore	102.2 mm / 4.02 in
stroke	94.6 mm / 3.72 in
power	391.5 kw / 525 bhp @ 6800 rpm
specific output	84.57 bhp per litre
torque	630 nm / 464.7 ft lbs @ 5200 rpm
redline	7200
body / frame	Unit Steel Mercedes-Benz R230 Platform
driven wheels	RWD w/ESP
wheel type	AMG Light Alloy
front tires	255/35 R 19
rear tires	285/30 R 19
front brakes	Composite Discs w/6-Piston Calipers,
steering	Rack & Pinion w/Speed Sensitive Power Assist
transmission	AMG Speedshift MCT 7-Speed Dual-Clutch Automatic
tran clutch	Dual-Clutch
top speed	~250 kph / 155.3 mph
0 – 60 mph	~4.5 seconds
