2007 Mansory DB9
The Aston Martin DB 9 series is one of the fascinating and prettiest sportcar in time, but MANSORY is sure there is a more sportier and stable style to do. The MANSORY front spoiler displace the series front totally and will give the car a striking snappy optical characteristic.
An elegant design symbiosis from an integrated daytime running light, also available as fog lights, with below air intakes so on the adaptive 5-line grill element, similar to the new 6-line lightweight main radiator grille, afford by the way a better air supply for the engine and so on for the new brake system made by BREMBO. The brake dimensions are 405/32 rotor discs with 6 piston calibers for the front and add on for the rear dimensions of 405/28 with 4 piston calibers and a integrated handbrake system. Convenient to this fine exterior grinding there will be a complete new drivers feeling regarding the new fully forged aluminium lightweight performance wheels.

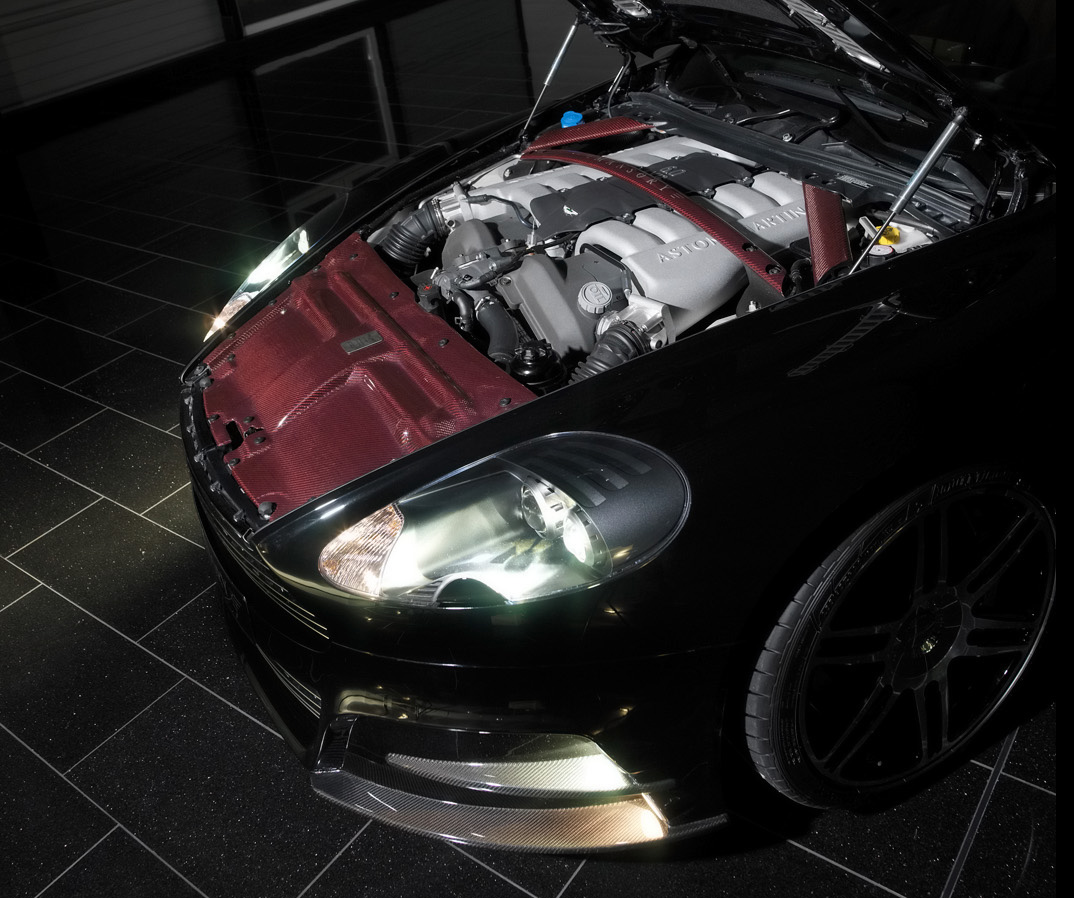

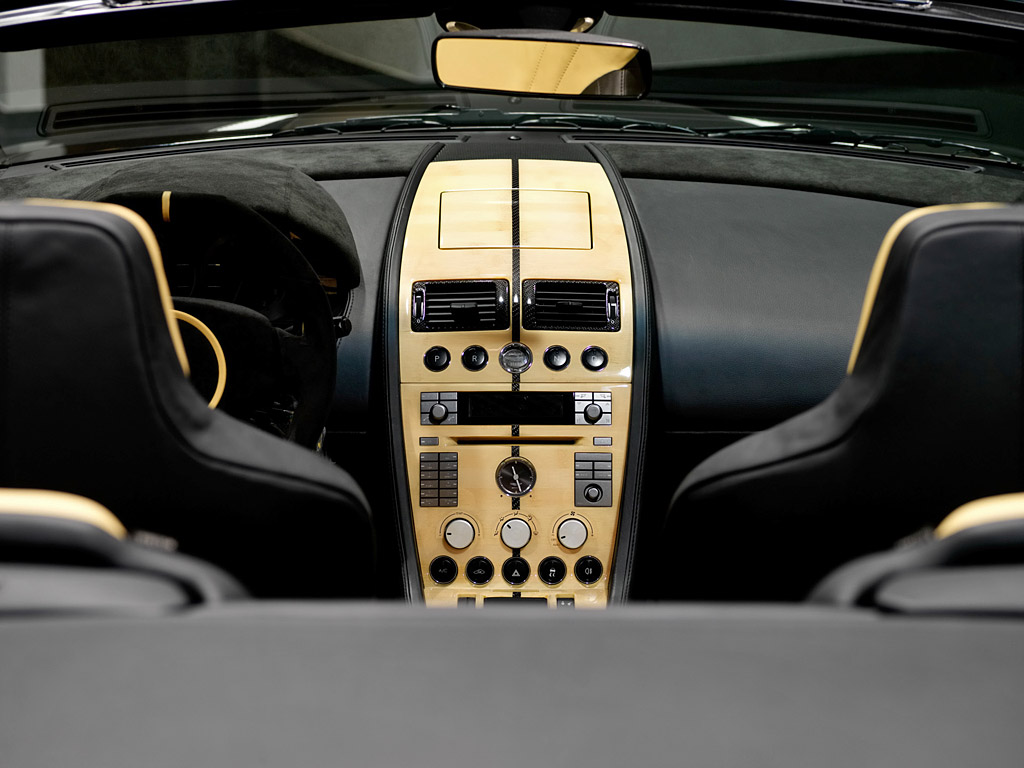

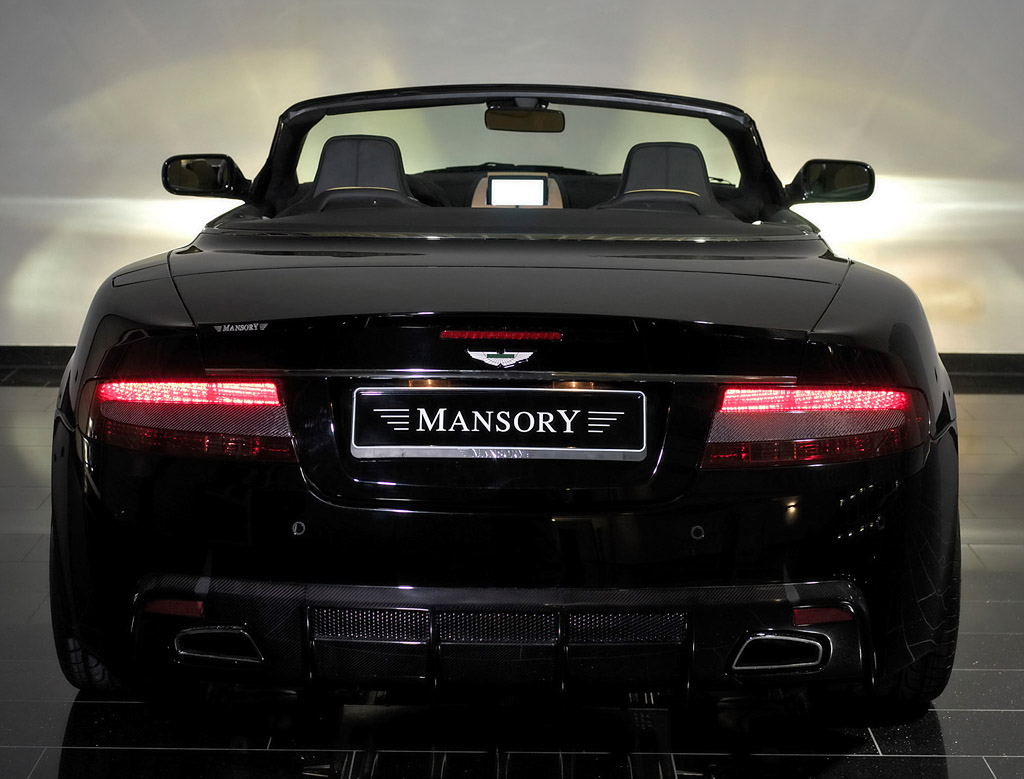

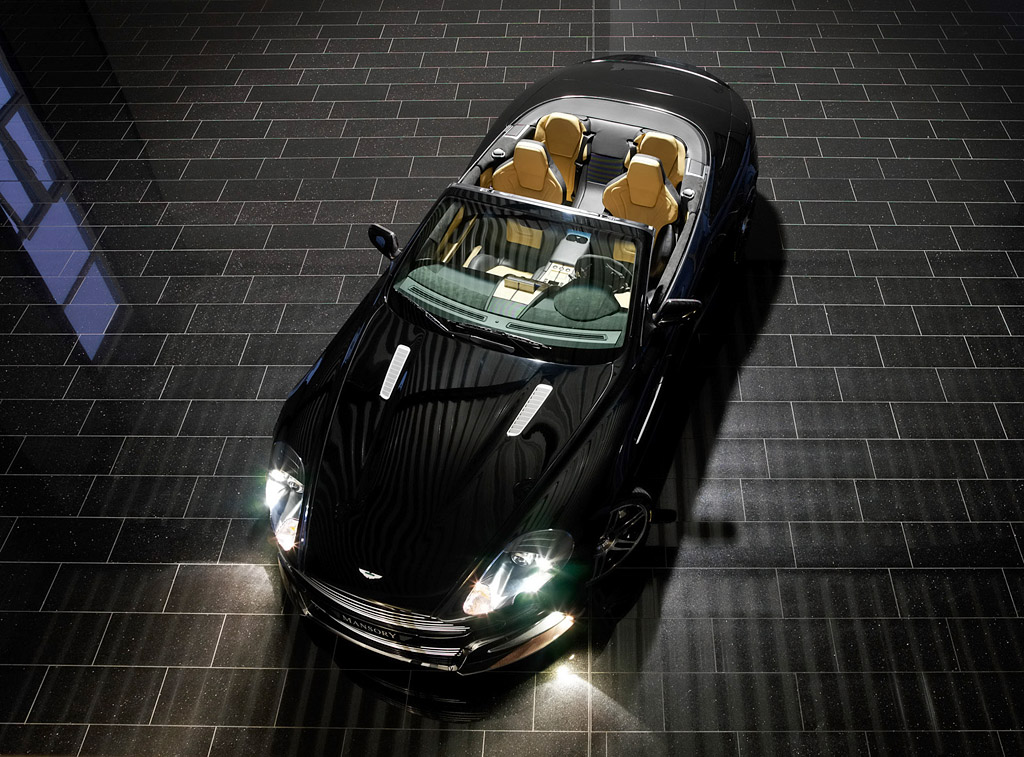

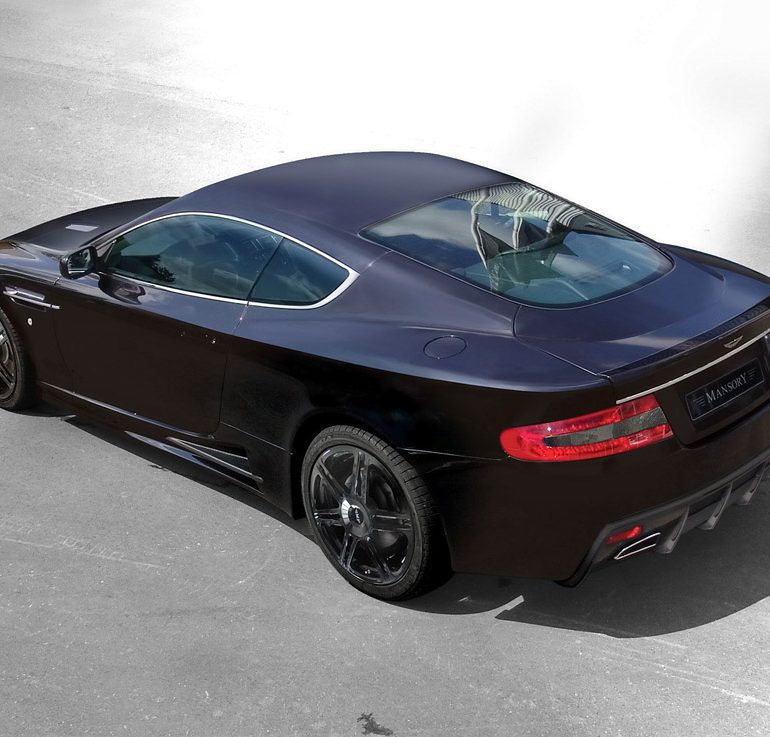

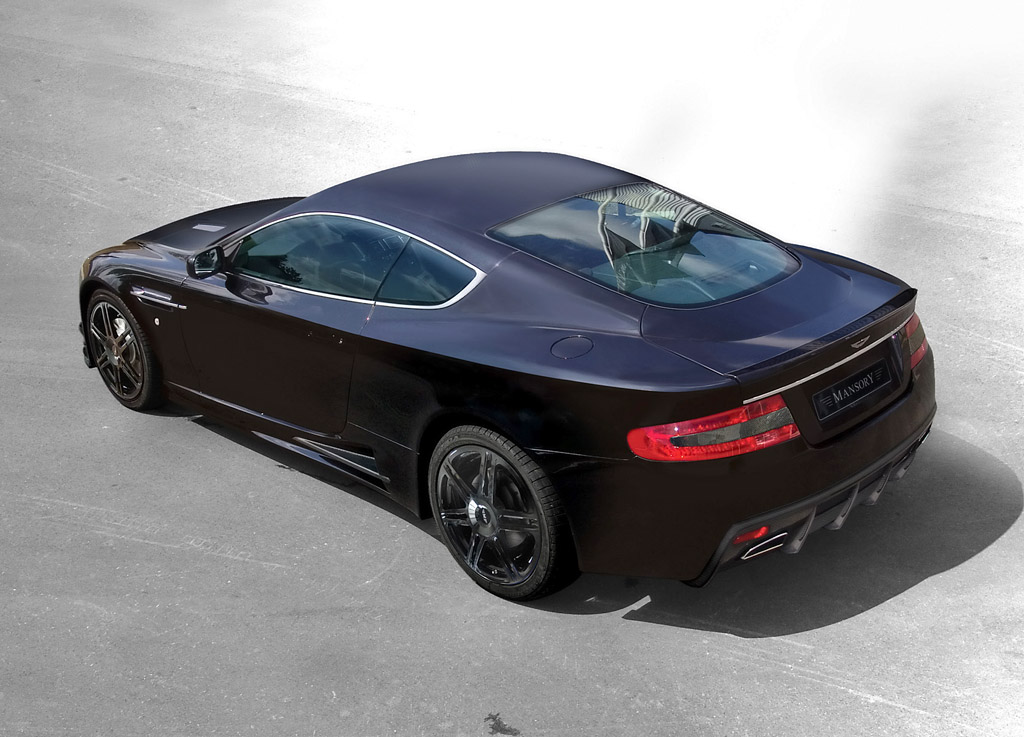

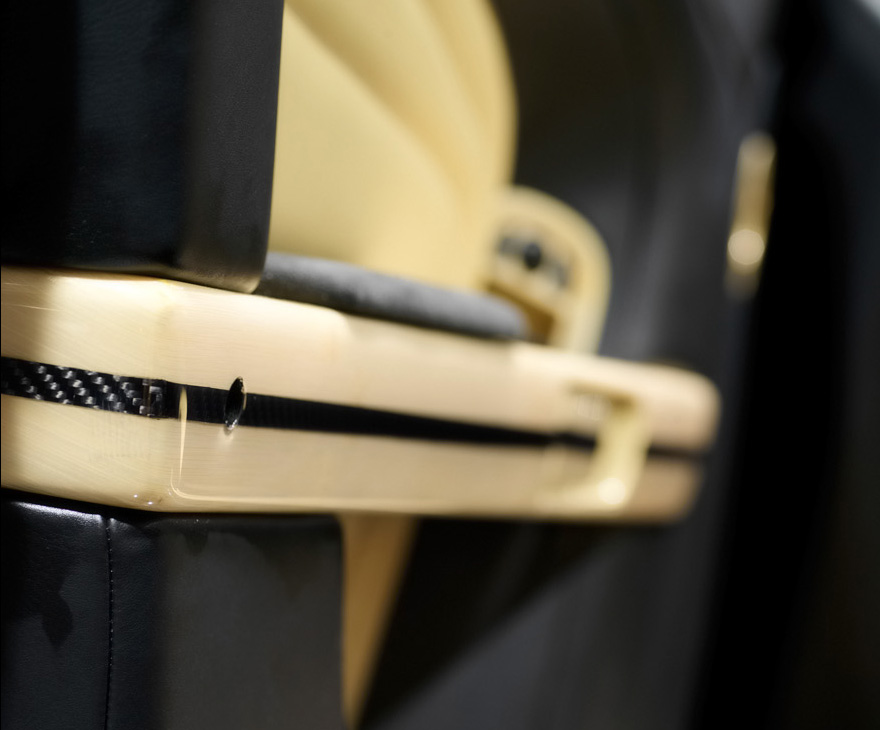

Dimensions are in the front like 9x20J wheels with accordant 255/35/20 high performance tyres and for the rear 10.5x20J with 285/30/20 tyres. Likewise the side skirts amend the aerodynamic and let the car looks much more deeper. Yet another typical detail are the integrated carbon flanks with air intakes behind of them. The complex design of the rear shows the apron with an spectacular carbon diffusor, it is really a complete new imagination and to make it once again a step more sportier add on the rear trunk lid spoiler which supporting the dynamic contact pressure. The chromed details are the integrated exhaust tips in the rear apron so on the trunk aluminium trim stripe and at least the carbonfibre light covers. Totally new the anodized aluminium air outtakes on engine bonnet and the fully forged light-weight wheels, together they are toping the exterior off. Also new the suspension lowering with sport performance springs, the complete vehicle comes down 25mm ( approx.: 1 inch). Look into the interior and you will find a singular unique mixture from maple wood, carbonfibre structure and Alcantara. Never before, wood looks in this combination so racy!

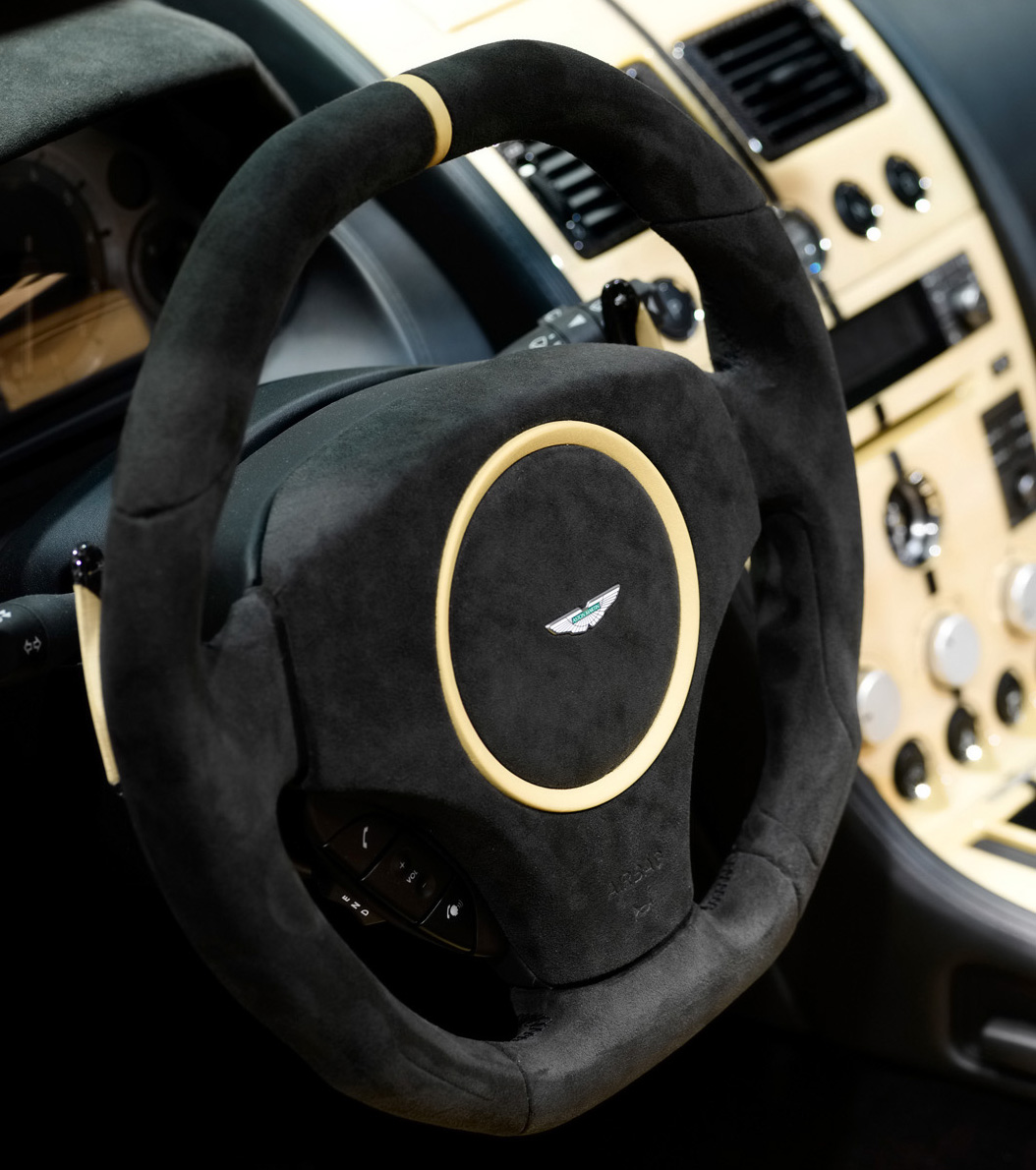

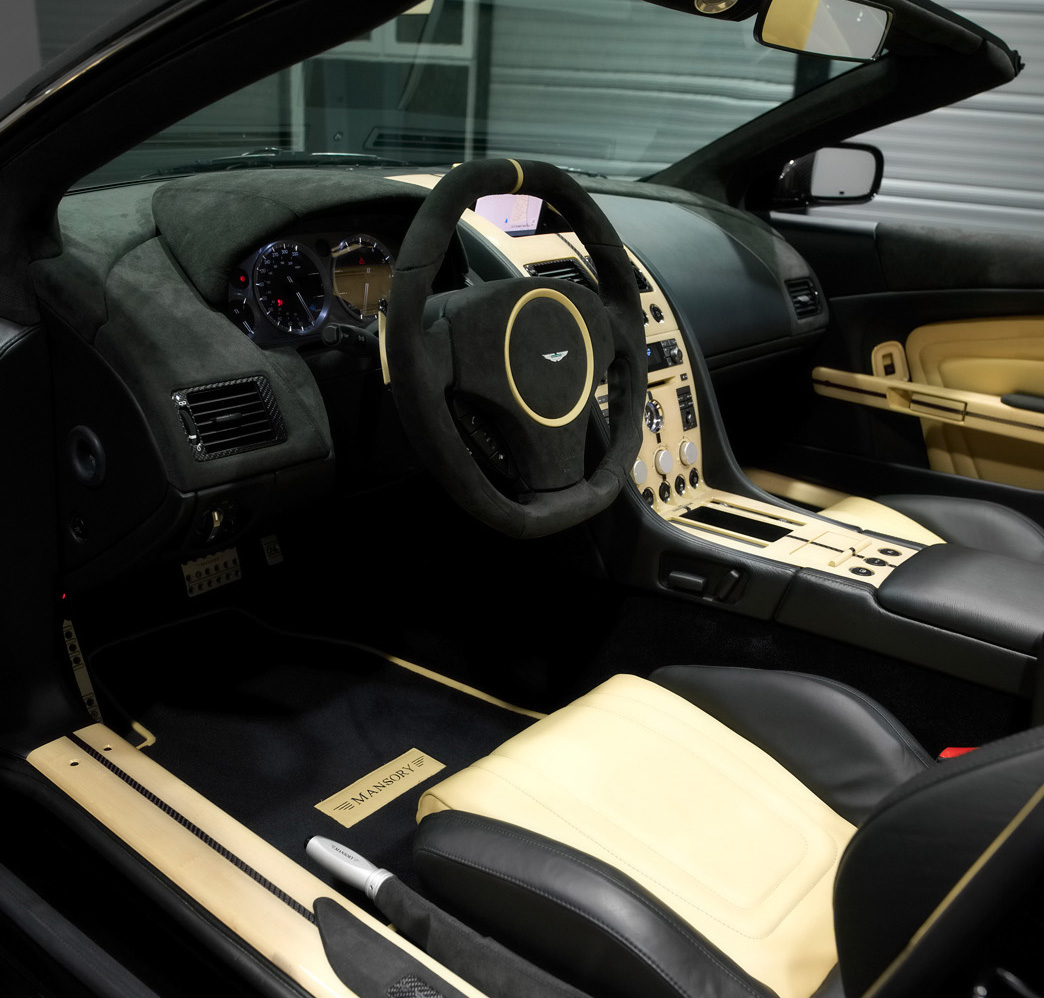

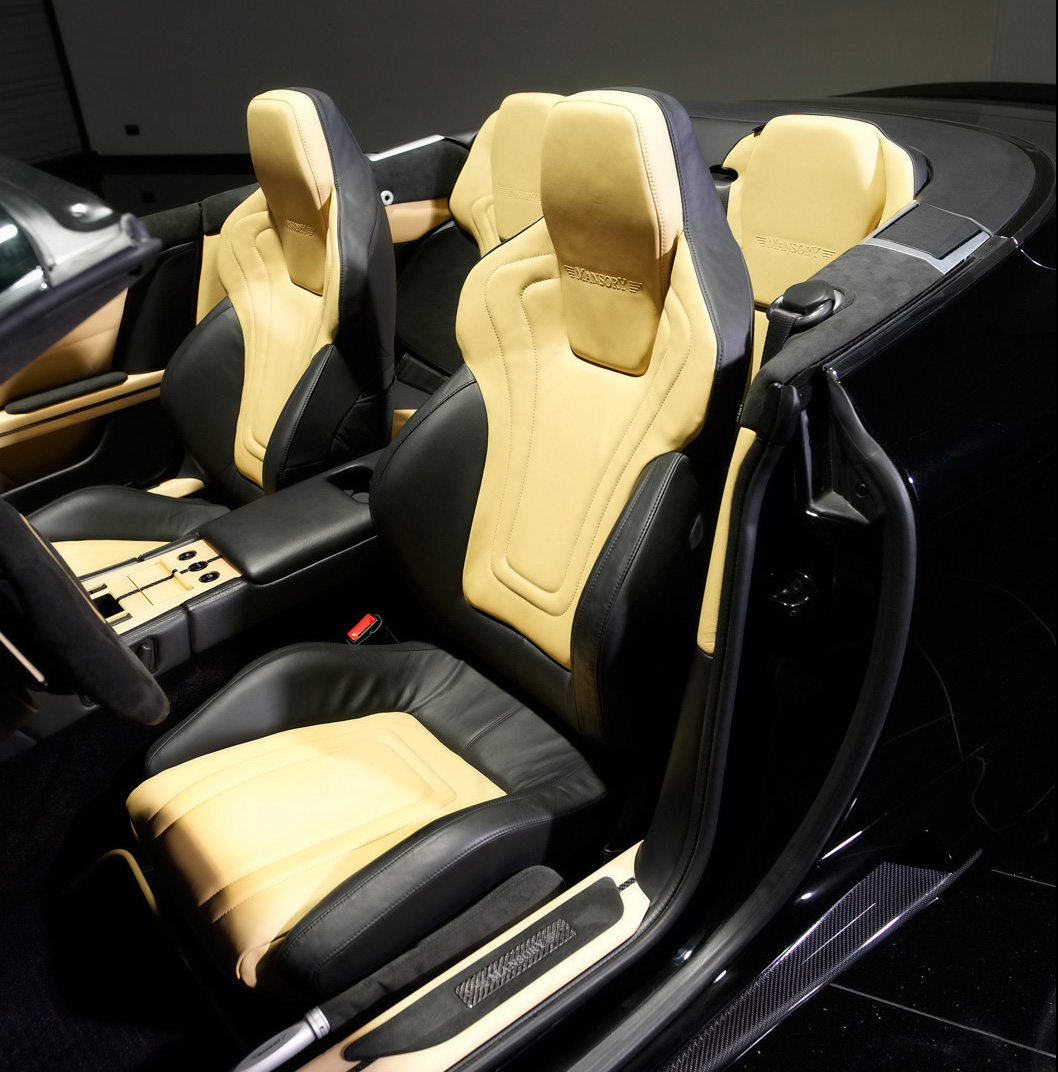

If you want it more individual MANSORY will leave nothing to the interior imagination, you can choose from the finest materials. Colored sporty leather combinations for seats, door covers and the dashboard. As a matter of course beside steering wheel, carbonfibre trim equipment like Vantage and Vanquish the 3-part set of aluminium pedals and brake handle.
MANSORY as a company is dedicated to perfection in the form of high end tuning and individualisation to match the lifestyle of the owners of British noble automobiles like Aston Martin, Bentley and Rolls Royce. The headquarter is situated in Brand, Fichtelgebirge near to Bayreuth, Germany.
The MANSORY Cooperation GmbH only offers their own developed tuning-accessories exclusively, we don’t sell complete automobiles.
In Detail
| submitted by | Richard Owen |
| type | Professionally Tuned Car |
| engine | 60º V12 |
| position | Front Longitudinal |
| aspiration | Natural |
| block material | Aluminum |
| valvetrain | DOHC, 4 Valves per Cyl |
| fuel feed | Fuel Injection |
| displacement | 5935 cc / 362.18 in³ |
| bore | 89 mm / 3.5 in |
| stroke | 79.5 mm / 3.13 in |
| compression | 10.3:1 |
| power | 302.0 kw / 450 bhp @ 6000 rpm |
| specific output | 75.82 bhp per litre |
| bhp/weight | 263.16 bhp per tonne |
| torque | 570 nm / 420.4 ft lbs @ 5000 rpm |
| body / frame | Extruded Aluminium Bonded Monocoque |
| driven wheels | RWD w/LSD and Traction Control |
| front tires | 255/35/20 |
| rear tires | 285/30/20 |
| front brakes | Vented & Grooved Discs w/6-Piston Brembo Monobloc Calipers, ABS, EBD, EBA |
| rear brakes | Vented & Grooved Discs w/4-Piston Brembo Monobloc Calipers, ABS, EBD, EBA |
| front wheels | F 50.8 x 22.9 cm / 20 x 9 in |
| rear wheels | R 50.8 x 26.7 cm / 20 x 10.5 in |
| steering | ZF Rack & w/Servotronic Power Assist |
| f suspension | Double Wishbones w/Coil Over Aluminum Covered Monotube Dampers, Anti-Roll Bar |
| r suspension | Double Wishbones w/Coil Over Aluminum Covered Monotube Dampers, Anti-Roll Bar |
| curb weight | 1710 kg / 3770 lbs |
| wheelbase | 2740 mm / 107.9 in |
| front track | 1568 mm / 61.7 in |
| rear track | 1562 mm / 61.5 in |
| length | 4697 mm / 184.9 in |
| width | 1875 mm / 73.8 in |
| transmission | Rear Mounted 6-Speed Manual or Six Speed Auto |
| top speed | ~300 kph / 186.4 mph |
| 0 – 60 mph | ~4.7 seconds |
| 0 – 100 mph | ~10.8 seconds |
| 0 – 1/4 mile | ~13.1 seconds |
| designers | Ian Cullum, Hendrik Fisker |
