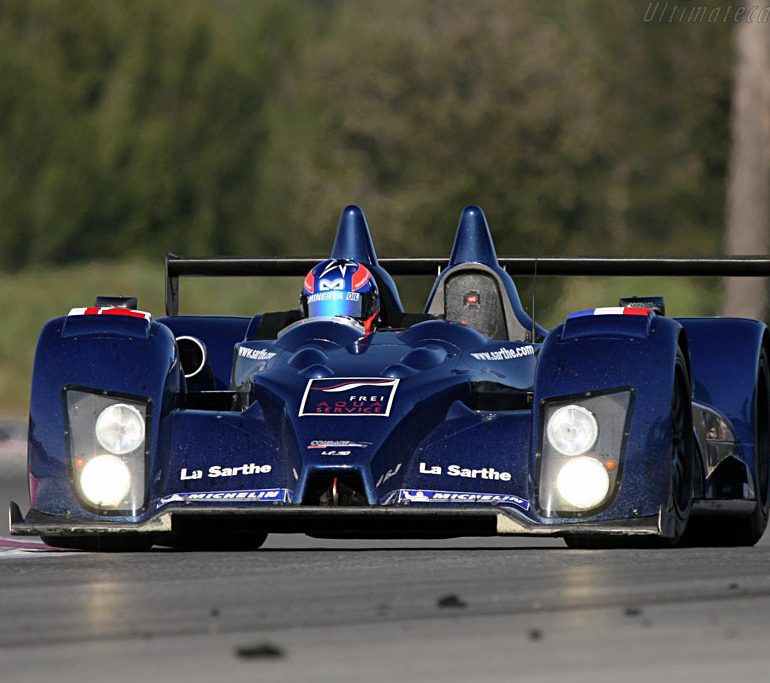

2007 Courage LC70
Yves Courage built his own cars at the Le Mans Technopark for both LMP1 and LMP2 cars. His LC70 was dedicated to the LMP1 class and would be used by many racing teams in many configurations including the Acura ARX, Oreca LC75, Tokai LMP.
Paulo Crete was responsible for the car’s design which could accept either a Mugen MF458S V8 or Judd GV5 V10. Distinctive bodywork was drawn up by Ben Wood.
For the 2007 factory team, Courage swithed to AER power with no major victories. As a result the design was sold to Oreca who comprehensively upgraded it for the 2008 and subsequent seasons.
In Detail
built at | Le Mans, France |
body stylist | Ben Wood |
engineers | Paulo Catone |
engine | AER P32 75º V8 |
position | Mid, Longitudinal |
aspiration | Twin Garrett Turbos |
block material | Aluminum |
valvetrain | DOHC, 4 Valves per Cyl |
power | 447.4 kw / 600 bhp @ 6500 rpm |
bhp/weight | 648.65 bhp per tonne |
torque | 700 nm / 516.3 ft lbs @ 6200 rpm |
body / frame | Unitary Carbon Fiber Honeycomb Monocoque |
driven wheels | RWD |
front brakes | Brembro Carbon Ceramic Discs |
rear brakes | Brembro Carbon Ceramic Discs |
steering | Rack & Pinion w/Kyaba Power Assist |
f suspension | Double Wishbones w/Inboard Spring/Damper Units |
r suspension | Double Wishbones w/Inboard Spring/Damper Units |
curb weight | 925 kg / 2040 lbs |
transmission | Courage 6-Speed Manual w/Paddle-Shifting |
