2007 Arden XKR AJ20
Arden rebuilds this eight-cylinder engine from scratch and sharpens the claws of this big cat by increasing its displacement.
The displacement increase to 4.5 l is achieved by fitting a crankshaft specially produced for Arden, along with new con rods and pistons. Arden elicits an impressive 480 bhp / 353 kW and an awesome torque of 640 Nm at 3.850 rpm from its supercharged 4.5 l V8 engine.

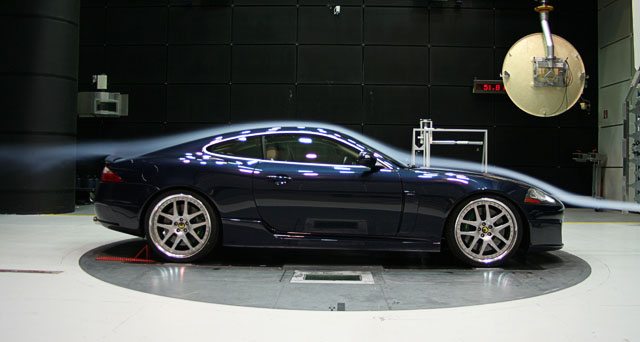

The Arden body modification underlines not only the powerful character of the Arden XK AJ20 but it also increases the aerodynamic efficiency of this real sport car. The aerodynamic was intensively tested and optimised in the wind tunnel with the effect of a better air drag coefficient combined with higher down force for superb handling.
While testing the AJ 20 on the high speed course at ATP Papenburg a top speed of 305 km/h makes the XK AJ 20 Coupe the fastest Jaguar currently on the road.
In Detail
| submitted by | Richard Owen |
| engine | V8 |
| aspiration | Eaton Supercharger |
| valvetrain | DOHC, 4 Valves per Cyl w/Variable Inlet Camshaft Timing |
| displacement | 4500 cc / 256.1 in³ |
| bore | 86 mm / 3.39 in |
| stroke | 90.3 mm / 3.56 in |
| specific output | 93.33 bhp per litre |
| torque | 640 nm / 472.0 ft lbs @ 3850 rpm |
| body / frame | Riveted and bonded Aluminium |
| front brakes | Vented Discs |
| f brake size | x 355 mm / x 14.0 in |
| rear brakes | Discs |
| r brake size | mm / in |
| curb weight | 1720 kg / 3792 lbs |
| wheelbase | 2752 mm / in |
| length | 4791 mm / 188.6 in |
| width | 1892 mm / 74.5 in |
| height | 1322 mm / 52.0 in |
| transmission | 6-speed Automatic w/Jaguar Sequential Shift |
| gear ratios | 4.171:1, 2.340:1, 1.521:1, 1.143:1, 0.867:1, 0.691:1, :1 |
| final drive | 3.31:1 |
| top speed | ~305 kph / 189.5 mph |
| 0 – 60 mph | ~4.0 seconds |
| drag | 0.341 Cd |
