2006 Koenigsegg CCX

February 24th, 2006 – To meet international regulations and take advantage of the market potential in America, Koenigsegg have revamped and retooled their CCR supercar into the CCX. Named to commemorate 10 years since the first prototype saw the light of day, the CCX now meets the strict California emissions limits as well as other tough US safety laws. Fortunately, this process let Koenigsegg improve the CC, and as a result the CCX is larger and more refined.

So much so, the Koenigsegg won Top Gear’s coveted test track challenge, but not without infamy. First time the around, the Koenigsegg went off the track, swallowing a tire, and was ridiculed for not having enough downforce. Fortunately, Koenigsegg weren’t turned off by the mishap when they repaired and returned the car with a new downforce lip to suit Top Gear’s presenters. The effort became worthwhile when 1:17.6 was achieved, beating the Zonda F, Maserati MC12 and Ferrari Enzo.

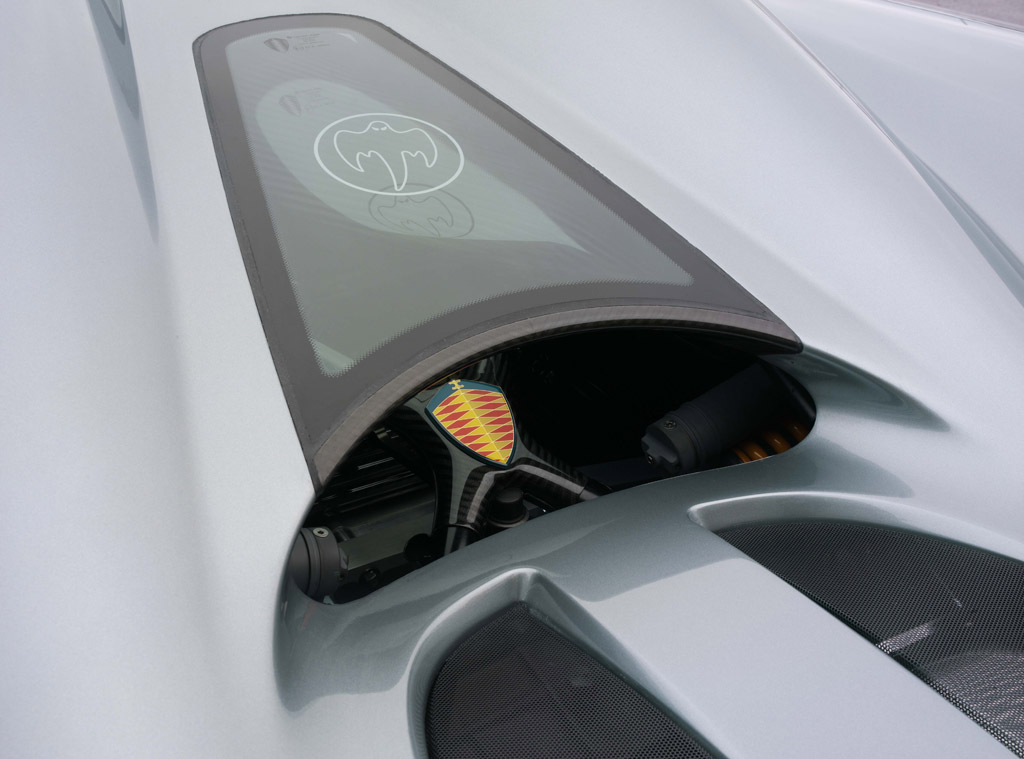

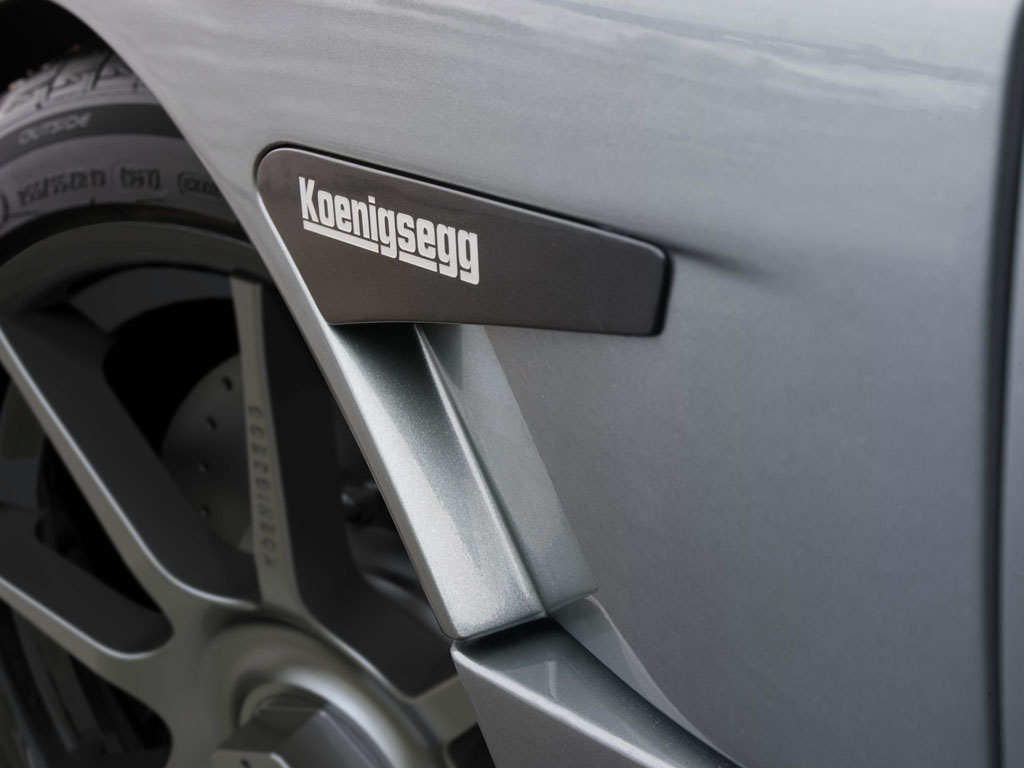

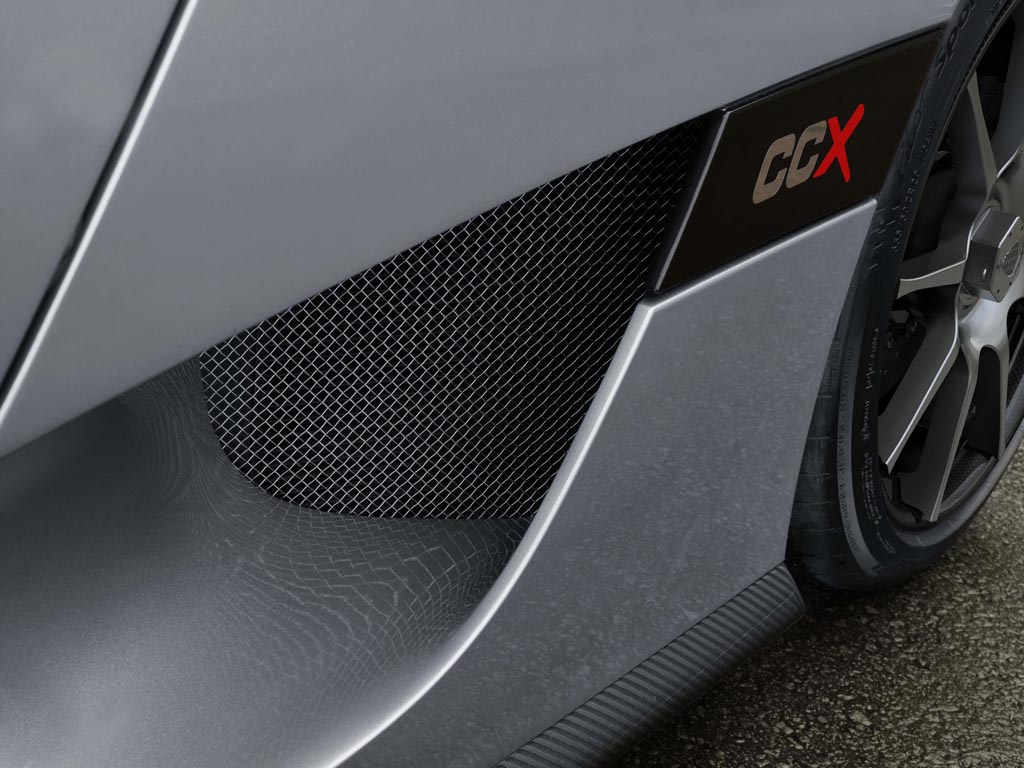

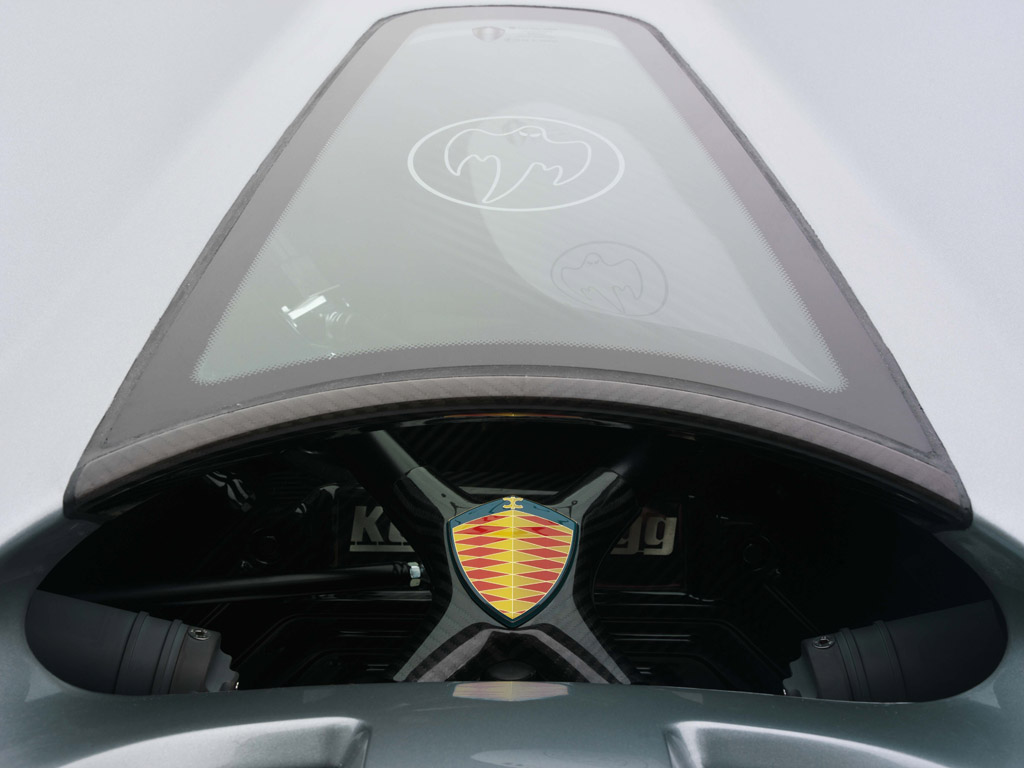

For certification, one of the major issues Koenigsegg faced was conforming to bumper tests and safety issues while retaining the same basic shape that claimed the title of world’s fastest 2005 production car. To do so they drafted a new set of body panels that lengthened the CC and made many more performance revisions possible. Changes now include a new front end with scoop for cockpit cooling, wheel extractors behind the front arches and new side rocker panels that enhance the under tray aerodynamics. At the back, more room is made for the exhaust, and better ducting helps the engine bay stay cooler. And just for that added flair, the supercharged V8 engine can now be seen through a clear covering.

Koenigsegg also spent a lot of development time to cast their own V8 that could drink US-grade, 91 octane fuel, yet still run at a high compression ratio. In the past, these engines were controversial, as they used a Ford Racing block with Koenigsegg manufactured components. However, for the CCX, Koenigsegg have made their own block casting, leaving no connections to Ford or the Mustang.

Despite all the regulatory changes, the CCX is still one of the world’s fastest supercars. Back in early 2005, a CCR supercar had won the fastest production car title when it achieved 241 mph (387.87 kph) on at Italy’s Nardo Track. However, with the introduction of the long awaited Veyron, Bugatti became the king of the hill and made the CCR second.

With the CCX debut slated for an upcoming debut at the 2006 Geneva Motor Show, we can only hope that Koenigsegg might get sweet revenge. Their supercar, engineered and constructed in Sweden, certainly has the hallmarks of modern design: a carbon fibre monocoque, a supercharged V8 located mid-ship and an inboard, double wishbone suspension.

Each CCX is will be specially ordered, and for 2006, Koenigsegg have added a tasty list of new ingredients. Now on menu are carbon fibre wheels and carbon fibre disc brakes which can shed 11 lbs (5 kgs) per corner. Each car comes with a storable hard top and long list of equipment. A ‘standard’ car is delivered for $540 000 USD, while a fully laden car, like the one in our spec table comes for $610 910 USD.

Specs & Performance

type	Series Production Car
built at	Ängelholm, Sweden
price $	$ 695,000
engine	Koenigsegg V8 w/Dry Sump Lubrication
position	Mid Longitudinal
aspiration	Twin Rotex Centrifugal Superchargers
valvetrain	DOHC, 4 Valves per Cylinder
fuel feed	Sequential Multipoint Indirect Injection
displacement	4700 cc / 286.8 in³
compression	8.2:1
power	601.0 kw / 806 bhp @ 7000 rpm
specific output	171.49 bhp per litre
bhp/weight	606.02 bhp per tonne
torque	920 nm / 678.6 ft lbs @ 5500 rpm
body / frame	Carbon Fibre/Kevlar Body over Carbon Fiber & Aluminum Honeycomb Semi-Monocoque w/Steel Front Cro-Moly Steel Subframe
driven wheels	RWD w/Torque Sensitive LSD
wheel type	Carbon/Magnesium
front tires	255/35 – 19 Michelin Pilot Sport 2
rear tires	335/30ZR-20 Michelin Pilot Sport 2
front brakes	Carbon Ceramic Discs w/8-Piston Calipers
f brake size	34 x 380 mm / 1.3 x 15.0 in
rear brakes	Carbon Ceramic Discs w/6-Piston Calipers
r brake size	32 x 362 mm / 1.3 x 15.0 in
front wheels	F 48.3 x 24.1 cm / 19 x 9.5 in
rear wheels	R 50.8 x 31.8 cm / 20 x 12.5 in
steering	Rack & Pinion w/Power Assist
f suspension	Double Wishbones w/Inboard Hydraulic Shock Absorbers, Anti-Roll Bar
r suspension	Double Wishbones w/Inboard Hydraulic Shock Absorbers, Anti-Roll Bar
curb weight	1330 kg / 2933 lbs
weight distro	45 % / 55 %
length	4293 mm / 169.0 in
width	1996 mm / 78.6 in
height	1120 mm / 44.1 in
transmission	cima 6-Speed Manual w/Twin-Plate AP Racing Clutch
tran clutch	Dual Plate 240mm
gear ratios	2.875:1, 1.773:1, 1.267:1, 1.000:1, 0.833:1, 0.711:1
final drive	3.364:1
top speed	~394.3 kph / 245 mph
0 – 60 mph	~3.4 seconds
0 – 100 mph	~7.7 seconds
0 – 1/4 mile	~10.7 seconds
0 – 100 kph	~3.2 seconds
0 – 200 kph	~9.8 seconds
drag	0.3 Cd
fuel econ	13 L/100 km or 18.09 mpg-us
combined fuel econ	17 L/100 km or 13.84 mpg-us
fuel capacity	70 litres or 18.48 gal.
