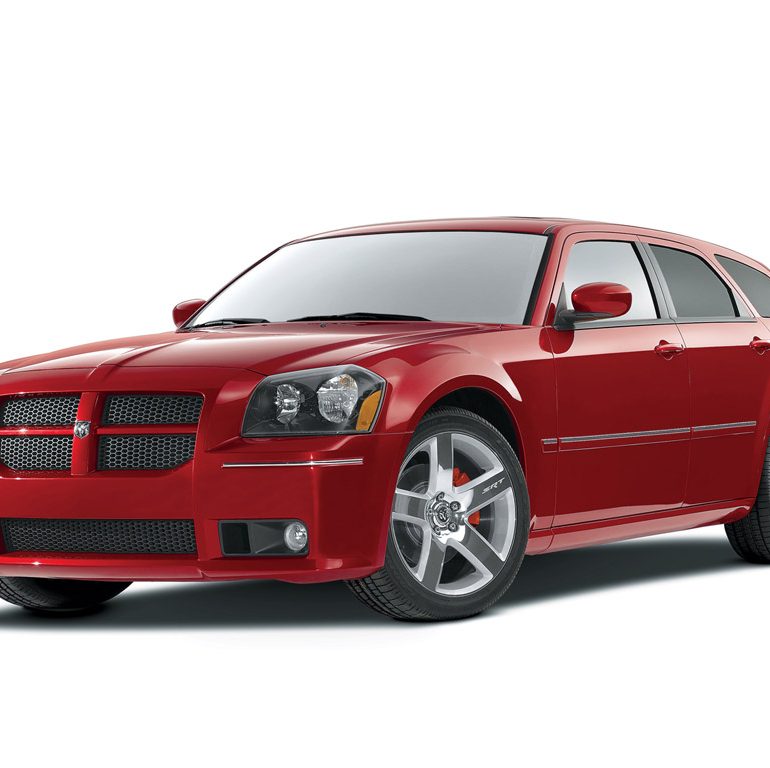

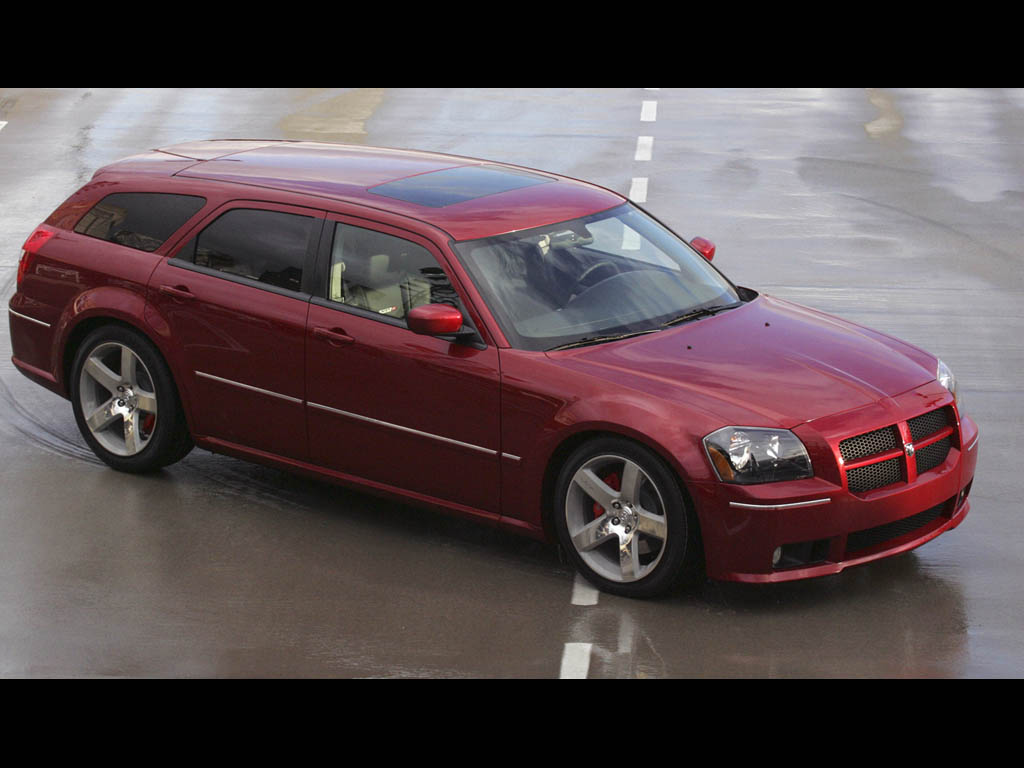

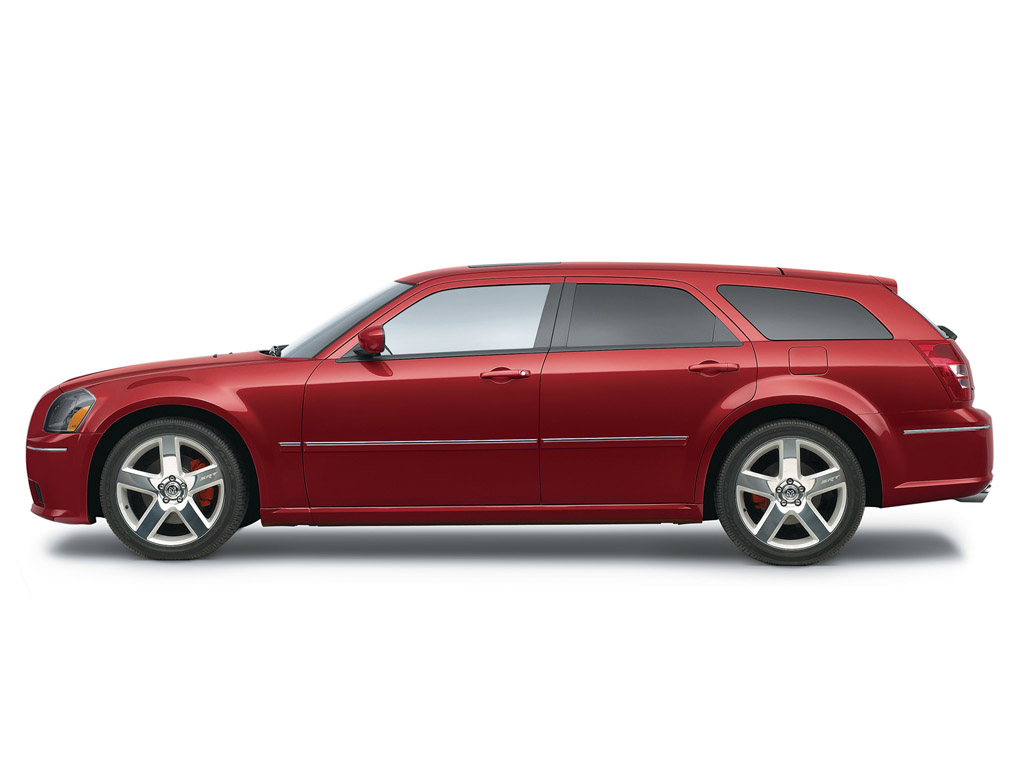

2006 Dodge Magnum SRT-8
Los Angeles, Jan 05, 2005 – There is no rule that says you have to give up utility for high performance. But if there were such a rule, the all-new 2006 Dodge Magnum SRT8 would break it. With a 425-horsepower 6.1-liter HEMI engine up front, and 71.6 square feet of cargo space in the rear, the 2006 Dodge Magnum SRT8 hauls in more ways than one.
The 2006 Dodge Magnum SRT8 offers key SRT attributes in ride and handling across a dynamic range, benchmark braking, performance-inspired interior appointments and exterior styling, as well as the raw performance of SRT’s big-bore version of the HEMI engine.
Performance numbers for the all-new 2006 Dodge Magnum SRT8 include a 0-60 mph time in the low five-second range and 60-0 mph braking in approximately 110 feet. Capable of covering a quarter-mile in the high 13-second range, the Dodge Magnum SRT8 can accomplish SRT’s signature performance test of 0-100-0 mph in the mid 16-second range.
Powertrain
The new 6.1-liter SRT version of the legendary Hemi engine was inspired by the original family of Hemis – particularly the namesake hemispherical combustion chambers that provide power and efficiency and select visual cues, including the classic orange-painted cylinder block and black valve covers.
The new engine also matches the legendary ‘Street Hemi’ of the 1960s and 1970s with its 425-horsepower rating. But it does so with less displacement. With the Chrysler Group’s 5.7-liter Hemi as a starting point, SRT powertrain engineers developed 85 more horsepower by adding more cubic inches, increasing the compression ratio, redesigning the cylinder head, intake and exhaust systems for increased flow, and increasing engine speed.
Engine breathing was increased with new higher-flow cylinder heads, a specially designed intake manifold, and exhaust headers with individual tubes encased in a stainless steel shell, all unique to the 6.1-liter hemi engine. Larger-diameter valves and reshaped ports in the heads allow for maximized air flow. The intake manifold was designed with larger-diameter and shorter runners for higher-speed tuning. Exhaust is routed through a large-diameter (2.75-inch vs. 2.5-inch) exhaust system with 3.5-inch chrome tips.
To further increase horsepower, performance-oriented camshaft profiles were developed to allow more air in and out of the cylinders, as well as manage a higher engine speed. SRT engineers increased the Hemi’s peak power output engine speed nearly 20 percent, to 6,000 revolutions per minute (rpm) from 5,000 rpm. Intake and exhaust valve stems are hollow, and the exhaust valve stems are filled with sodium to help dissipate heat more efficiently.
The high-performance SRT 6.1-liter HEMI is strengthened with redesigned components, including a reinforced engine block, forged steel crankshaft, high-strength powdered-metal connecting rods, floating-pin pistons (cooled by oil squirters), and an oil pan modified to manage oil return to the pan sump at high engine speeds.
Power for the SRT 6.1-liter HEMI is channeled through an A580 five-speed automatic transmission with specially calibrated driver-selectable AutoStick, which offers fully automatic or manual shifting selection. A heavy-duty four-flange prop shaft sends the torque from the transmission to an upgraded differential and axles.
Ride and Handling
Chassis setup for the Dodge Magnum SRT8 is aimed at all-around performance with SRT-tuned dampers, specially tailored spring rates and suspension bushings, and large-diameter anti-sway bars. The ride height of the Magnum SRT8 is one-half inch lower than the Dodge Magnum, while the Electronic Stability Program (ESP) has been specially tuned for the 2006 Dodge Magnum SRT8âs performance handling characteristics.
The all-new 2006 Dodge Magnum SRT8 will meet the road with a new wheel and tire assembly consisting of unique 20-inch forged aluminum wheels shod with high-performance Goodyear F1 three-season tires with asymmetrical tread (four-season tires are an available option). Tire dimensions are a formidable 245/45/20 in the front, and 255/45/20 in the rear.
All four wheels feature performance brake calipers developed by Brembo and finished in Dodge SRT red. Each is equipped with four pistons for even clamping performance. The Dodge Magnum SRT8 has 360 x 32mm vented rotors up front, with 350 x 26mm vented rotors in the rear.
Styling: Inside & Out

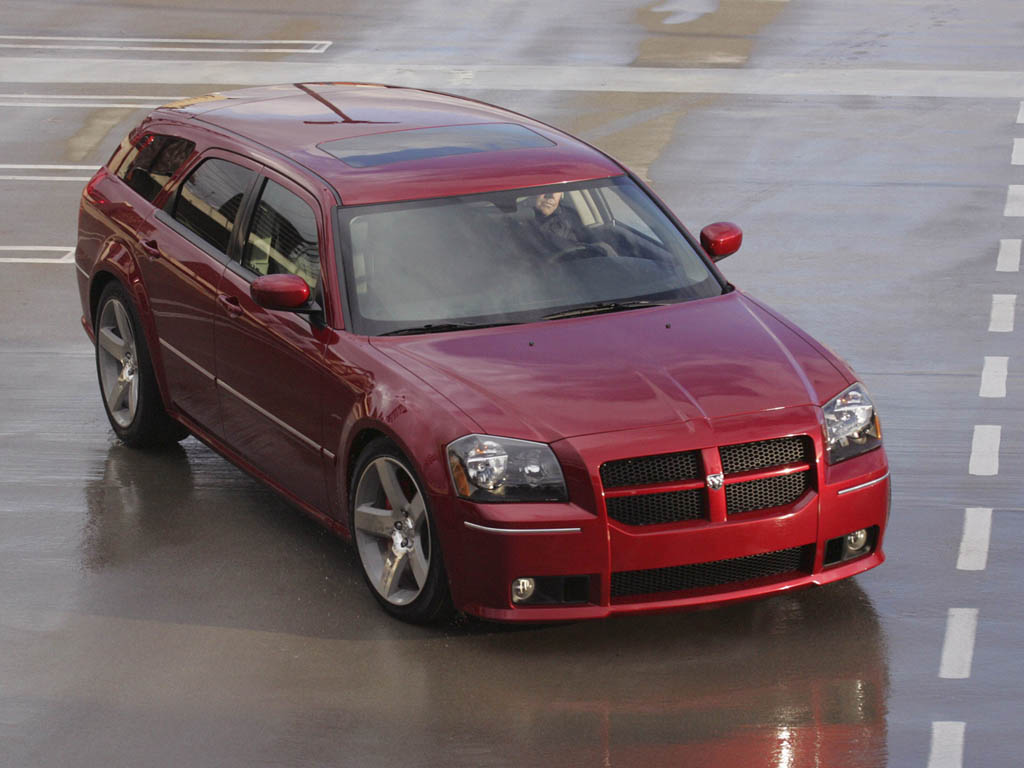

SRT stylists made functional improvements that resonate with the Dodge brand’s character and contribute to performance. For example, an all-new front fascia helps increase cooling through integrated ducts that help direct air to cool the brakes. A front air dam reduces lift, while in the rear, there is an all-new fascia with an integrated wake modifier and aggressive cutouts to accommodate the dual 3.5-inch exhaust tips.
Inside, the 2006 Dodge Magnum SRT8 features power-adjustable, deeply sculpted and highly bolstered sport seats in the front complete with performance suede inserts to hold the occupants during maneuvering. All seats have contrasting red stitching.
Other amenities include ”carbon fiber” leather trim for better grip on the steering wheel, and special carbon fiber finishing on the center stack.
Full instrumentation, including a 180-mph (300 kph) speedometer, tachometer and temperature gauges, befits the performance-oriented character of the 2006 Dodge Magnum SRT8’s interior.
Story by DaimlerChrysler, edited by Supercars.net
In Detail
| engine | 90 Degree Hemi V8 w/Twin Spark Ignition |
| position | Front Longitudinal |
| aspiration | Natural |
| valvetrain | 2 Valves per Cyl w/Pushrod Actuation |
| fuel feed | Multi-Port, Sequential, Electronic Injection |
| displacement | 6100 cc / 372.2 in³ |
| bore | 103 mm / 4.06 in |
| stroke | 90.9 mm / 3.58 in |
| compression | 10.3:1 |
| power | 316.9 kw / 425.0 bhp @ 6000 rpm |
| specific output | 69.67 bhp per litre |
| bhp/weight | 216.07 bhp per tonne |
| body / frame | Unit Steel |
| driven wheels | AWD or RWD w/ESP |
| front tires | 245/45/20 |
| rear tires | 255/45/20 |
| front brakes | Vented Discs w/ABS |
| f brake size | x 360 mm / x 14.2 in |
| rear brakes | Vented Discs w/ABS |
| r brake size | x 350 mm / x 13.8 in |
| front wheels | F 45.7 x 19.0 cm / 18.0 x 7.5 in |
| rear wheels | R 45.7 x 19.0 cm / 18 x 7.5 in |
| steering | Rack & Pinion w/Hydrualic Assist |
| f suspension | Short-Long Arm w/Upper A-Arm, Coil Spring over Gas Shock Absorber, Stabilizer Bar |
| r suspension | Five-Link Multi-Link w/Stabilizer Bar, Shock Absorbers, |
| wheelbase | 3048 mm / 120.0 in |
| front track | 1600 mm / 63.0 in |
| rear track | 1603 mm / 63.1 in |
| length | 5021 mm / 197.7 in |
| width | 1881 mm / 74.1 in |
| height | 1481 mm / 58.3 in |
| transmission | A580 5-Speed Automatic |
| gear ratios | 3.59:1, 2.19:1, 1.41:1, 1.00:1, 0.83:1, :1 |
| final drive | 3.07:1 |
| top speed | ~273.6 kph / 170 mph |
| 0 – 60 mph | ~5.4 seconds |
| 0 – 100 mph | ~12.4 seconds |
| 0 – 1/4 mile | ~13.9 seconds |
| drag | 0.365 Cd |
