2005 TVR Tuscan S
May 22nd, 2004, Birmingham Motor Show-The Tuscan S is a development of the old red rose Tuscan but with a number of significant developments. At the forefront of these is a revision of the chassis geometry with different kingpin inclination and less bump steer to specifically set the car up for the 18 wheels which come as standard on this car. Spring and damper rates are also now stiffer than they were originally to complement the car’s new chassis and extra power. The brakes have also been enlarged to 322mm at the front and 298mm at the rear. They remain cross-drilled and ventilated all round and the callipers remain the same also.
The engine of the Tuscan S has been further developed to produce 400 bhp at 7000rpm and 310 ft.lbs of torque at 5250 rpm. The Tuscan S also features most of the Tuscan’s options list as standard. Among these are air conditioning, gas discharge main beam headlamps and a DAB stereo, which receives the latest digital radio broadcasts. It is the first production car to have one of these fitted as standard.

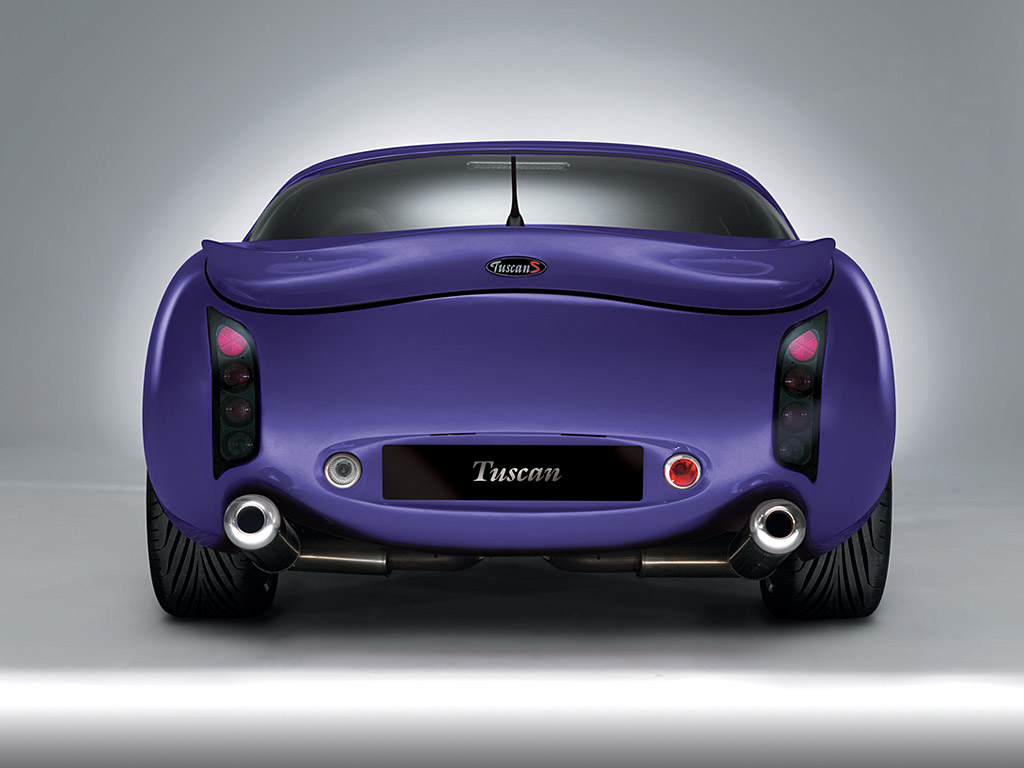

The styling of all Tuscans has been changed with aerodynamics at the forefront of the stylists’ minds. Led by Graham Browne and with Peter Wheeler’s customary considerable input, TVR’s design team have worked with the brief of reducing drag and increasing downforce. They have achieved this with the aero package of the Tuscan S reducing its lift even further, necessitated by the higher performance engendered by its 400 bhp motor. Its front splitter has been influenced by the aerodynamics work performed by TVR’s engineers in the Le Mans programme and it has a higher tail to place its larger gurney well up into the airflow.
The suspension is now much stiffer on the Tuscan S, which will run a similar set-up to the Sagaris with much higher spring, damper and anti-roll bar rates which help to keep the attitude of the car flat, quite significantly adding to the aerodynamic efficiency of the car.
Story by TVR Cars Ltd, edited by Supercars.net
In Detail
| submitted by | Richard Owen |
| price $ | $75 000 USD |
| engine | Aluminum Alloy Inline-6 w/Dry Sump Lubrication |
| position | Front, Londitudinal |
| valvetrain | DOHC 4 Valves per Cyl |
| fuel feed | Sequential Multi-Point Fuel Injection |
| displacement | 3996 cc / 243.9 in³ |
| power | 298.3 kw / 400 bhp @ 7000 rpm |
| specific output | 100.1 bhp per litre |
| bhp/weight | 342.76 bhp per tonne |
| torque | 420.3 nm / 310 ft lbs @ 5250 rpm |
| driven wheels | RWD w/Limited Slip |
| wheel type | Aluminum Alloy |
| front tires | 225/50ZR16 |
| rear tires | 225/55ZR16 |
| front brakes | Vented Brakes w/4-Piston Calipers |
| f brake size | x 322 mm / x 12.7 in |
| rear brakes | Vented Brakes w/Single-Piston Sliding Calipers |
| r brake size | x 298 mm / x 11.7 in |
| steering | Rack & Pinion w/Hydraulic Power Assist |
| f suspension | Double Wishbones w/Coi lover Gas Dampers, Anti-Roll Bar |
| r suspension | Double Wishbones w/Coi lover Gas Dampers, Anti-Roll Bar |
| curb weight | 1167 kg / 2573 lbs |
| wheelbase | 2361 mm / 93.0 in |
| front track | 1470 mm / 57.9 in |
| rear track | 1470 mm / 57.9 in |
| length | 4235 mm / 166.7 in |
| width | 1810 mm / 71.3 in |
| height | 1200 mm / 47.2 in |
| transmission | Five-Speed Manual |
| gear ratios | :1 |
| top speed | ~257.5 kph / 160 mph |
| 0 – 60 mph | ~4.2 seconds |
| 0 – 100 mph | ~9.0 seconds |
