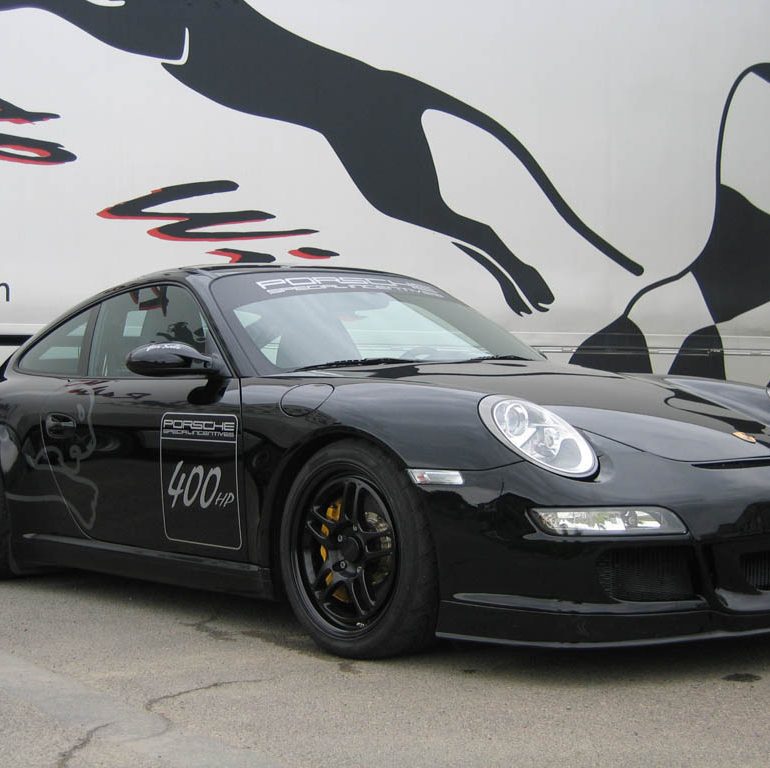

2005 PSI CS400
CS400 is PSI’s first tuning project for the 997 Porsche and the car that will introduce the company to the North America. To produce 400 horsepower, PSI take a standard Carrera, add their own intake, exhaust and control unit. These components benefit from PSI’s motor sports program and provide a foundation for the company as both a tuner and a race team.
Since 1998, PSI have been working with Porsches, contesting them in the French and Belgian GT championships. By 2001, the Belgium-based company started offering tuning programs for the 996 range. Those developments reached a climax with the PSI Porsche GT2-R having 720 bhp @ 5500 rpm.
For 2005, PSI offer an Engine Kit for the 997, which consists of an air box, sports air filter, intake manifold, headers, catalytic converters, rear mufflers and a reprogrammed engine control unit. The newly developed body kit features bumpers, a front splitter, rear diffuser, and a giant wing made in carbon fiber.
Hopefully the CS400 is the first of several exciting Porsches to come from PSI. The North American site for PSI is currently being developed, however, their European site makes for an entertaining browse: http://www.psi-motorsport.com/porschetuning/index.php.
Story by Richard Owen for Supercars.net
In Detail
submitted by | Richard Owen |
engine | Boxer-6 w/CS400 Engine Kit |
valvetrain | DOHC, 4 Valves per Cyl w/Variable Valve Timing |
fuel feed | Fuel Injection |
displacement | 3824 cc / 233.4 in³ |
bore | 99.06 mm / 3.90 in |
stroke | 82.8 mm / 3.26 in |
power | 298.3 kw / 400 bhp @ 7000 rpm |
specific output | 104.6 bhp per litre |
bhp/weight | 281.69 bhp per tonne |
torque | 430 nm / 317.2 ft lbs @ 5500 rpm |
body / frame | Unit Steel |
driven wheels | RWD |
front tires | 235/35 ZR 19 |
rear tires | 295/30 ZR 19 |
front brakes | Cross Drilled & Inner Vented Rotors w/4-Piston, Aluminum Monobloc Calipers |
f brake size | x 330 mm / x 13.0 in |
rear brakes | Cross Drilled & Inner Vented Rotors w/4-Piston, Aluminum Monobloc Calipers |
r brake size | x 330 mm / x 13.0 in |
front wheels | F 48.3 x 20.3 cm / 19 x 8 in |
rear wheels | R 48.3 x 27.9 cm / 19 x 11.0 in |
f suspension | MacPherson Struts w/Lower Control Arms, Coil Springs, Stabilizer Bar, Shock Absorbers w/Active Control |
r suspension | 5-Link Multilink w/Coil Springs, Shock Absorbers w/Active Control |
wheelbase | 2350 mm / 92.5 in |
front track | 1484 mm / 58.4 in |
rear track | 1516 mm / 59.7 in |
length | 4461 mm / 175.6 in |
width | 1808 mm / 71.2 in |
height | 1300 mm / 51.2 in |
transmission | 6-Speed Manual |
gear ratios | 3.91:1, 2.32:1, 1.61:1, 1.28:1, 1.08:1, 0.88:1, :1 |
final drive | 3.44:1 |
