2004 Pontiac GTO Ram Air 6 Concept

2004 Pontiac GTO Ram Air 6 Concept

2004 Pontiac GTO Ram Air 6 Concept

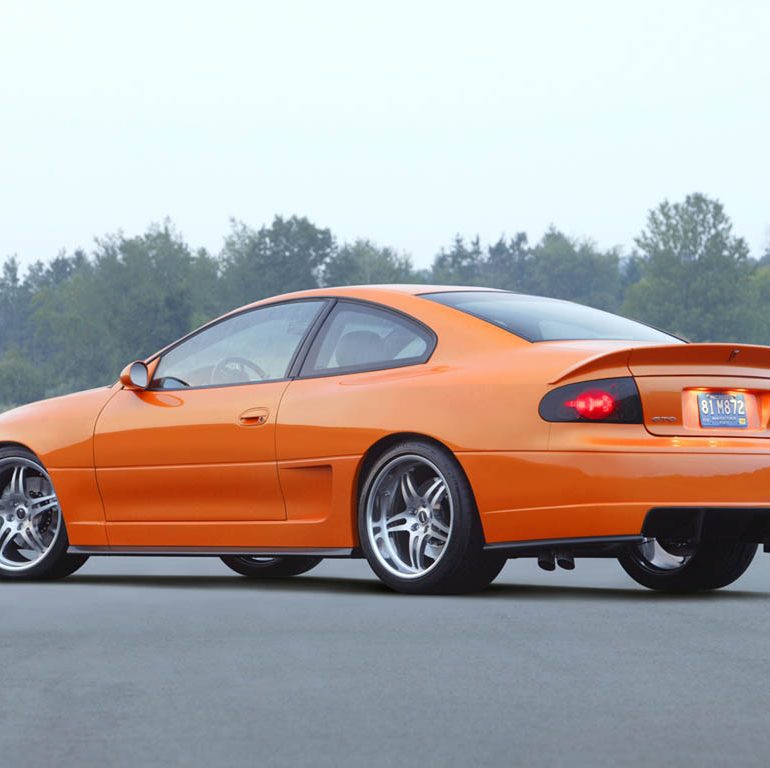

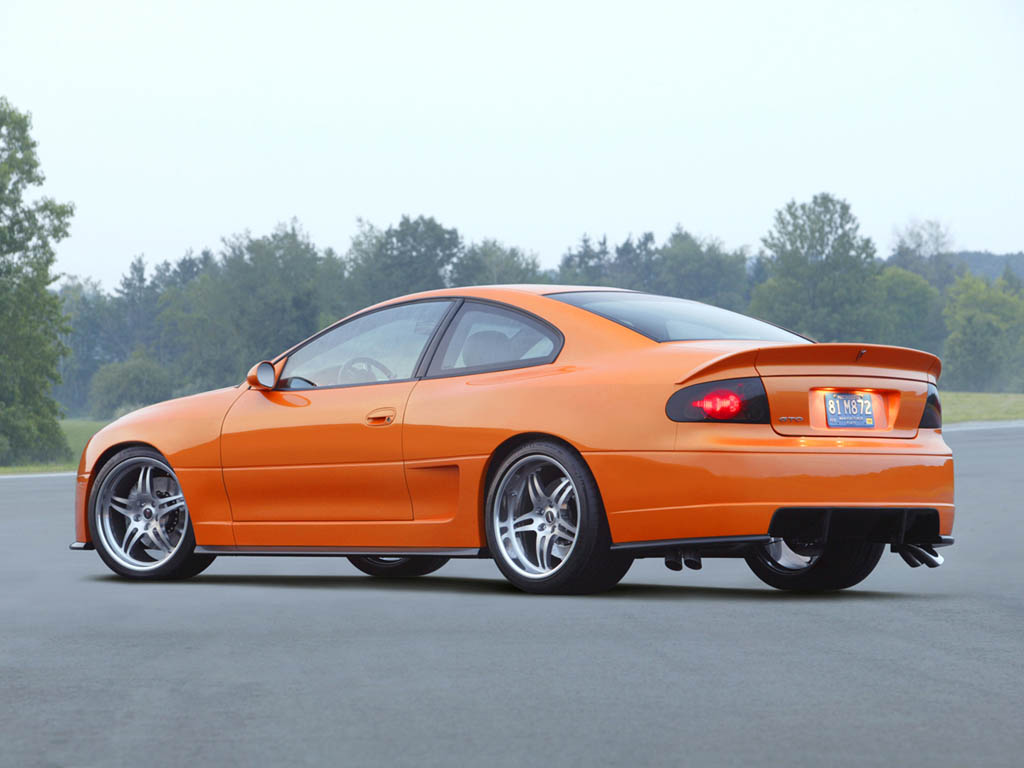

Royal Oak , Mich.  GMs Performance Division unveiled the Pontiac GTO Ram Air 6 Employee Enthusiasm (EE!) concept vehicles at the 2004 Woodward Dream Cruise. Created for show purposes, the vehicle was completed by GM employee volunteers using parts donated by GM Powertrain, GM Performance Parts, and GM Design Center.

The 2004 Pontiac GTO Ram Air 6 is reminiscent of the production Pontiac GTO Judge of the 60s and 70s. This vehicle is a modern interpretation of the classic, from its rollback orange exterior color to its authentic and functional ram air hood. The 389 cubic-inch V8 powerplant, matched with 6-speed manual transmission, supplies 575 horses to the 335/30/R20 inch rear tires. The front wheels are fitted with 285/30/20 high performance tires.

Story by General Motors Corporation

In Detail

submitted by Richard Owen
engine Hybird LS1, LS2 and LS7 V8
position Front Longitudinal
aspiration Natural
valvetrain 2 Over Head Valves per Cyl w/Pushrod Acuation
fuel feed Sequential-Port Fuel Injection
displacement 6375 cc / 389 in³
compression 10.5:1
power 428.8 kw / 575 bhp @ 6800 rpm
specific output 90.2 bhp per litre
bhp/weight 340.24 bhp per tonne
torque 677.91 nm / 500 ft lbs @ 5200 rpm
redline 7000
driven wheels RWD w/LSD and Traction Control
front tires 285/30R20 Michelin
rear tires 335/30R20 Michelin
front brakes Vented Discs w/ABS
f brake size x 297 mm / x 11.7 in
rear brakes Solid Discs w/ABS
r brake size x 287 mm / x 11.3 in
front wheels F 50.8 x 26.7 cm / 20 x 10.5 in
rear wheels R 50.8 x 30.5 cm / 20 x 12 in
steering Rack & Pinion w/Varibale Power Assist
f suspension Modified
r suspension Modified
curb weight 1690 kg / 3726 lbs
wheelbase 2790 mm / 109.8 in
front track 1569 mm / 61.8 in
rear track 1690 mm / 66.5 in
length 4822 mm / 189.8 in
width 1814 mm / 71.4 in
height 1397 mm / 55.0 in
transmission 6-Speed Manual or Hydra-Matic 4L60-E
gear ratios 2.97:1, 2.07:1, 1.43:1, 1.00:1, 0.84:1, 0.57:1, :1
