2004 Hamann Gallardo
Hamann Motorsport is now offering a styling and tuning packages for the Gallardo. They bring its performance character clearly into focus.

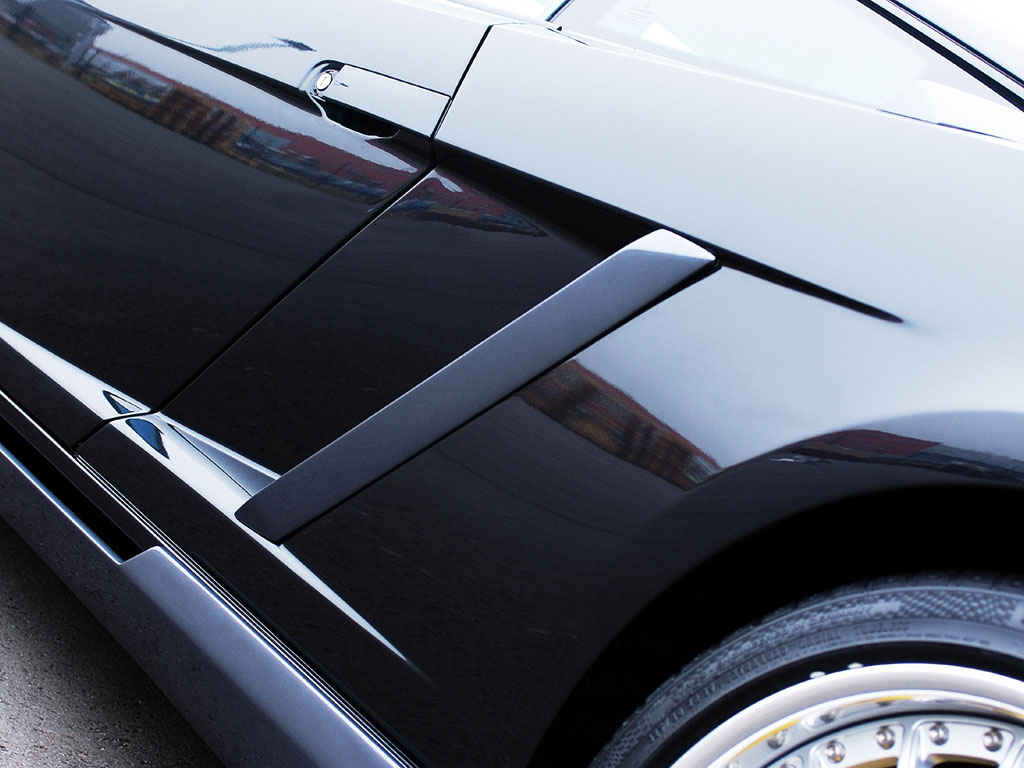

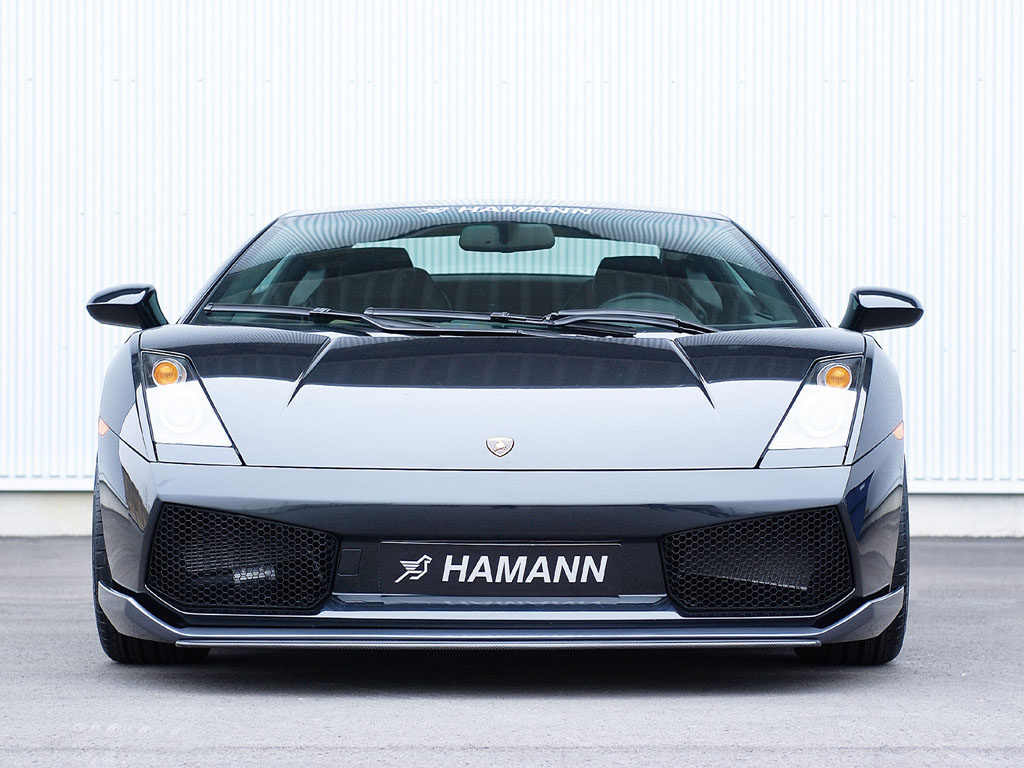

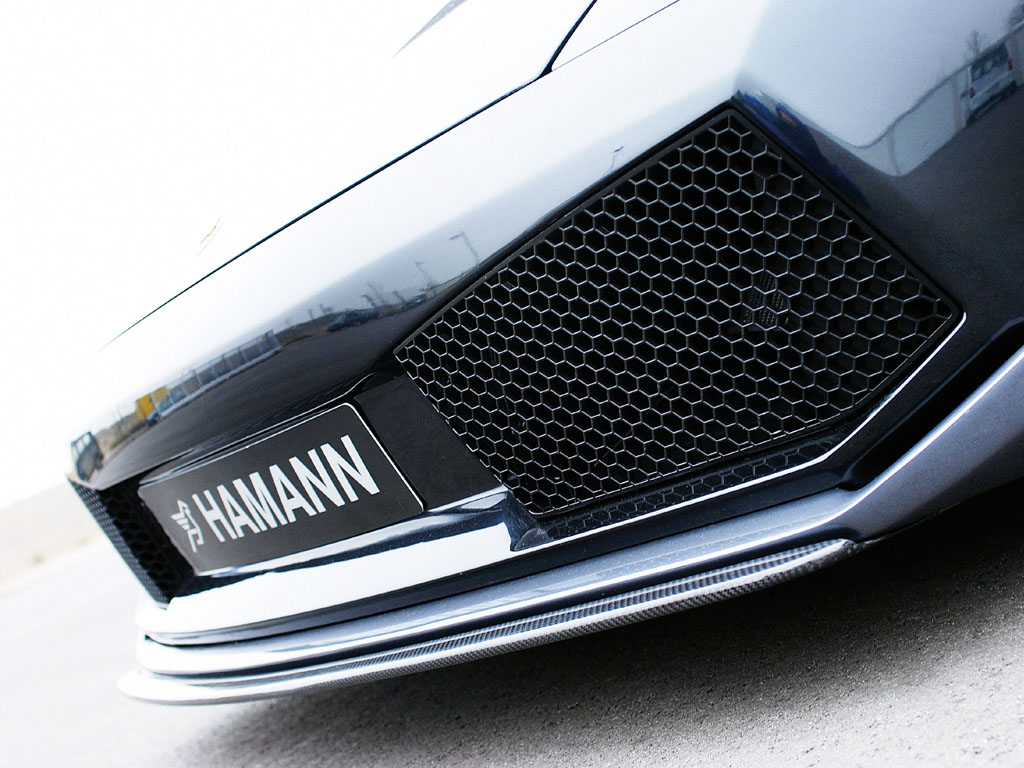

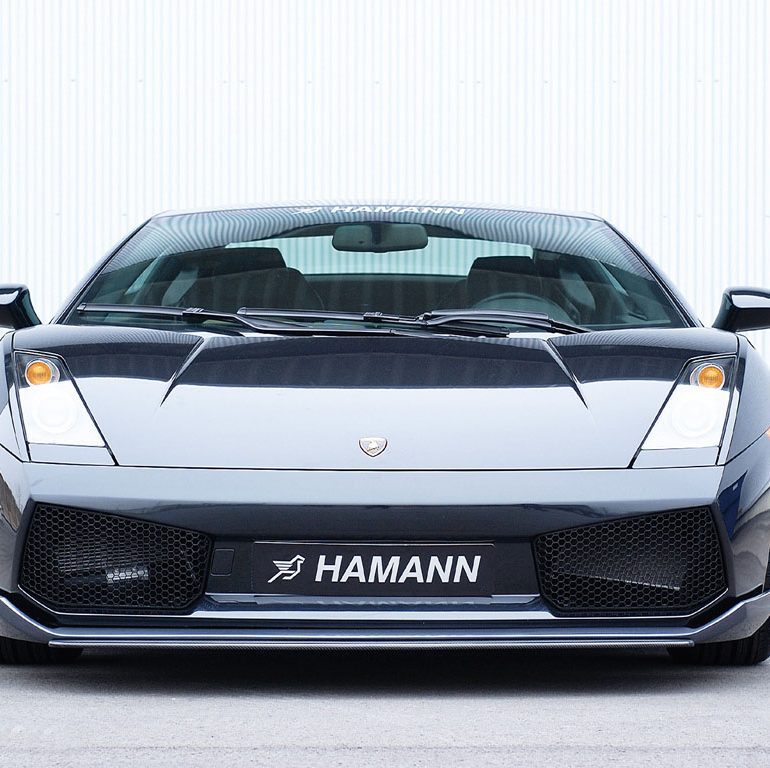

At first glance, the Hamann Gallardo indicates that it’s hardly a standard model. Hamann specialists constructed a comprehensive aerodynamics program for this radical sports car. The front is dominated by an innovatively designed front spoiler. The Hamann engineers indeed oriented themselves to develop ontop of the Italian design. The impressive appearance is also reinforced by the frontal airscoops, the broad side skirts and the air intake screens located on the sides.

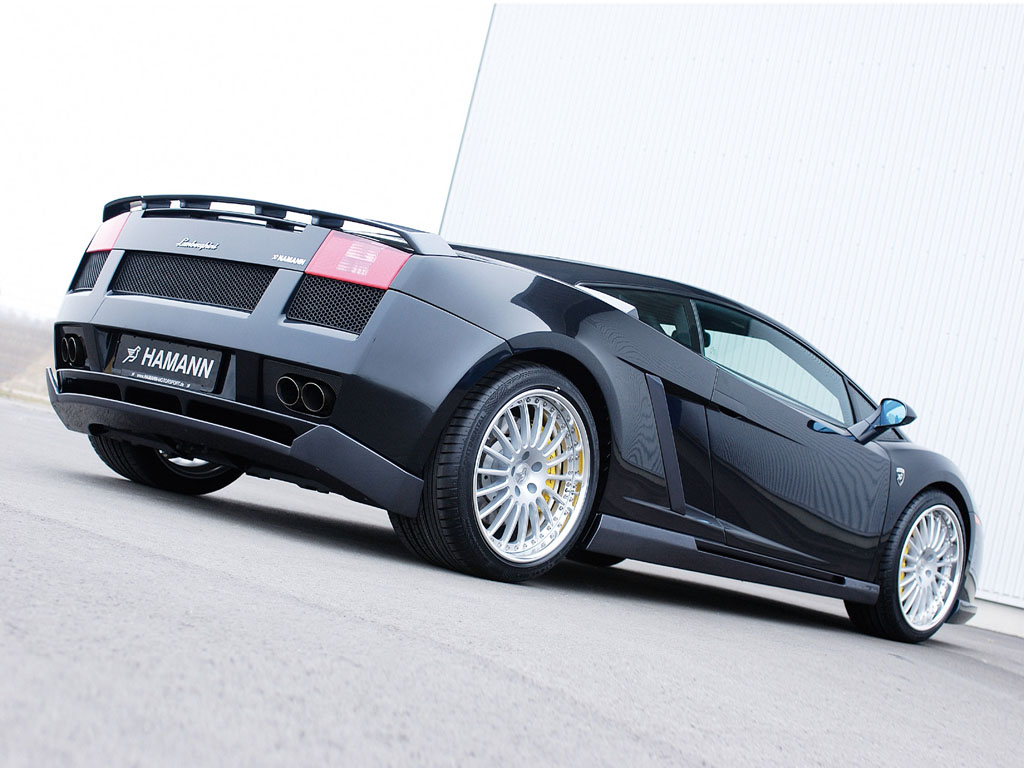

A mighty, three-piece rear wing from doesnât just look like it’s from motorsport, but also increases force on the rear axle at higher speeds. The same principle applies for the wide Hamann rear diffuser. It makes the rear appearance of the Gallardo unmistakable.
Thanks to the comprehensive aerodynamic components, this Gallardo makes sportier and more exclusive impression. And it wouldn’t be a complete Hamann without optimized performance. By using sport steel catalytic converters and two double-pipe sport mufflers with 76 millimeter diameter in a V2A stainless steel design, the performance of the Hamann Lamborghini was increased by 28 hp up to 528 hp. At the same time, the maximum torque was increased by 50 Nm to a total of 560 Nm as a result of this modification.

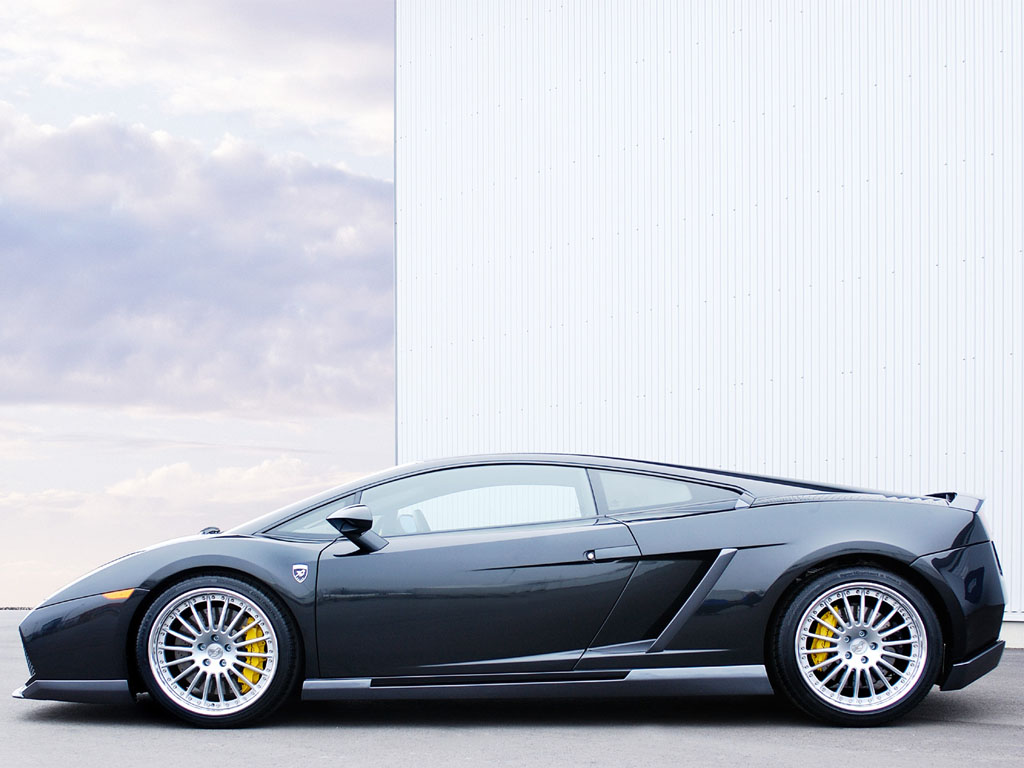

The sporty-sophisticated concept of the Hamann Lamborghini Gallardo is rounded off by the multi-part light metal Anniversary II wheel rims. These exclusive wheels, in a multispoke design, convey a sense of pure motorsport feeling. The silver wheel rim, with its highly polished INOX steel lip, makes a simultaneously refined and luxurious impression. The front axle bears wheels sized 9 x 19 inches with 235/35 Z R19 tires. In the rear, the Anniversary II II in the size 12 x 19 inches with 295/30 Z R19 tires was selected.
More than anything else, the successful mixture of power, sportiness and exclusivity make the Hamann Gallardo a unique and well appointed supercar.
Story by Automobili Lamborghini Holding S.p.A, edited by Supercars.net
2004 Hamann Gallardo Image Gallery
See full 2004 Hamann Gallardo Image Gallery
2004 Hamann Gallardo Gallery
See full 2004 Hamann Gallardo Gallery here
Hamann Gallardo Video – Brutal Sound
In Detail
submitted by | Richard Owen |
engine | 90 Degree, Aluminum V10. |
position | Mid Longitudinal |
aspiration | Natural |
valvetrain | DOHC, 4 Valves per Cyl w/Variable Intake System & Continuously Varibale Valve Timing |
fuel feed | Multipoint Sequential Fuel Injection |
displacement | 4961 cc / 302.7 in³ |
bore | 82.5 mm / 3.25 in |
stroke | 92.8 mm / 3.65 in |
compression | 11.0:1 |
power | 393.7 kw / 528 bhp @ 7800 rpm |
specific output | 106.43 bhp per litre |
bhp/weight | 359.18 bhp per tonne |
torque | 560 nm / 413.0 ft lbs @ 4500 rpm |
redline | 8100 |
body / frame | Aluminum & Thermoplastic over Aluminum Spaceframe |
driven wheels | 4WD w/Viscous Traction System |
front tires | 235/35 Z R19 |
rear tires | 295/30 Z R19 |
front brakes | Vented Discs w/Brembro 8-Piston Calipers, ABS |
f brake size | x 365 mm / x 14.4 in |
rear brakes | Vented Discs w/Brembro 8-Piston Calipers, ABS |
r brake size | x 335 mm / x 13.2 in |
front wheels | F 48.3 x 21.6 cm / 19 x 9 in |
rear wheels | R 48.3 x 30.5 cm / 19 x 12 in |
steering | Rack & Pinion w/Power Assist |
f suspension | Double Wishbones w/Anti-Roll Bar |
r suspension | Double Wishbones w/Anti-Roll Bar |
curb weight | 1470 kg / 3241 lbs |
wheelbase | 2560 mm / 100.8 in |
front track | 1622 mm / 63.9 in |
rear track | 1592 mm / 62.7 in |
length | 4300 mm / 169.3 in |
width | 1900 mm / 74.8 in |
height | 1165 mm / 45.9 in |
transmission | 6-Speed Manual w/Optional Robotized E-Gear |
gear ratios | 2.563:1, 1.850:1, 1.423:1, 1.138:1, 0.939:1, :1 |
final drive | 3.077:1 |
