2003 Ford Falcon XR8

2003 Ford Falcon XR8

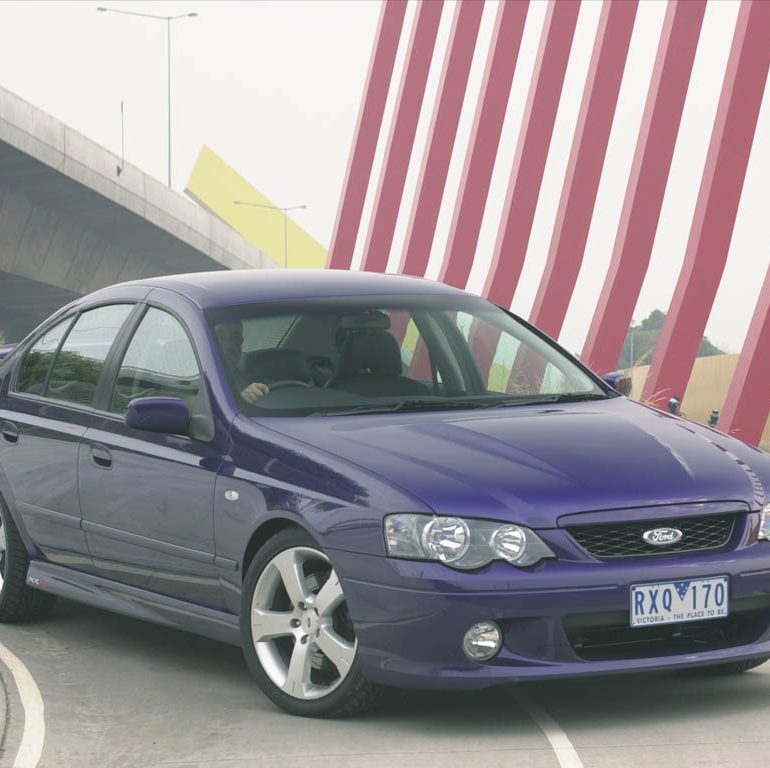

The Falcon XR8, with its distinctive power bulge in the bonnet, delivers a new level of responsiveness and refinement to the Australian performance car market. The latest edition to Ford’s rich performance car heritage is powered by a 5.4-litre V8 boasting quad camshafts, four valves per cylinder, high flow cylinder heads and stainless steel extractors.

The Boss 260 engine, which develops 260kW of power at 5250rpm and 500Nm of torque at 4250rpm, is produced on the only V8 engine assembly line in Australia. Ford Performance Vehicles builds each Boss engine from bare blocks and heads, adding a wide range of local upgrades and internals on a new $1.5 million assembly track.

The Boss 260 is mated to a Tremec T3650 five-speed manual gearbox designed to handle high torque applications, linked to a 3.23 axle ratio.

The XR8 package also includes sports suspension, unique front-end styling with a distinctive power bulge, a bodykit, fog lamps, dual horns and a unique chrome-tipped exhaust outlet. It also has, as standard, 17-inch, five-spoke alloy wheels shod with Dunlop SP3000 235/45 ZR17 tyres. An optional 18-inch, five-spoke alloy with Dunlop SP9000 245/40 ZR18 tyres is also available.

Inside, the Falcon XR8 comes complete with sports seats, a sports instrument cluster with blue backlighting and a leather steering wheel.

The Falcon XR8 also features a number of standard safety features including traction control, ABS and limited slip differential. Side airbags are a $500 option, while a $2950 premium brake package is also available. The premium brake package includes unique discs and callipers. The front discs are 325mm in diameter and 32mm thick, compared to 298mm and 28mm on the standard Falcon. Both front and rear discs are grooved.

2003_Ford_FalconXR81 2003_Ford_FalconXR82 2003_Ford_FalconXR83 2003_Ford_FalconXR84 2003_Ford_FalconXR85 2003_Ford_FalconXR86 2003_Ford_FalconXR87 2003_Ford_FalconXR88



In Detail

submitted by Richard Owen
engine Boss 260 V8
position Front Longitudinal
aspiration Natural
valvetrain DOHC, 4 Valves per Cyl
displacement 5408 cc / 330.0 in³
bore 90.2 mm / 3.55 in
stroke 105.8 mm / 4.17 in
compression 9.52:1
power 260 kw / 348.7 bhp @ 5250 rpm
specific output 64.48 bhp per litre
bhp/weight 194.26 bhp per tonne
torque 500 nm / 368.8 ft lbs @ 4250 rpm
body / frame Unit Steel
driven wheels RWD w/LSD, Traction Control
front tires Dunlop SP Sport 9000 235/40
rear tires Dunlop SP Sport 9000 235/40
front brakes Grooved & Vented Discs w/Twin-Piston Calipers, ABS
f brake size x 325 mm / x 12.8 in
rear brakes Grooved & Vented Discs w/Twin-Piston Calipers, ABS
r brake size x 303 mm / x 11.9 in
front wheels F 45.7 x 20.3 cm / 18.0 x 8 in
rear wheels R 45.7 x 20.3 cm / 18 x 8 in
f suspension Wishbones w/Coil Springs, Anti-Roll Bar
r suspension Control Blade w/Anti-Roll Bar
curb weight 1795 kg / 3957 lbs
wheelbase 2829 mm / 111.4 in
front track 1560 mm / 61.4 in
rear track 1575 mm / 62.0 in
length 4920 mm / 193.7 in
width 1864 mm / 73.4 in
height 1435 mm / 56.5 in
transmission Tremec T3650 5-Speed Manual
gear ratios 3.38:1, 2.00:1, 1.32:1, 1.00:1, 0.68:1, :1
final drive 3.23:1
