2002 Koenigsegg CC 8S

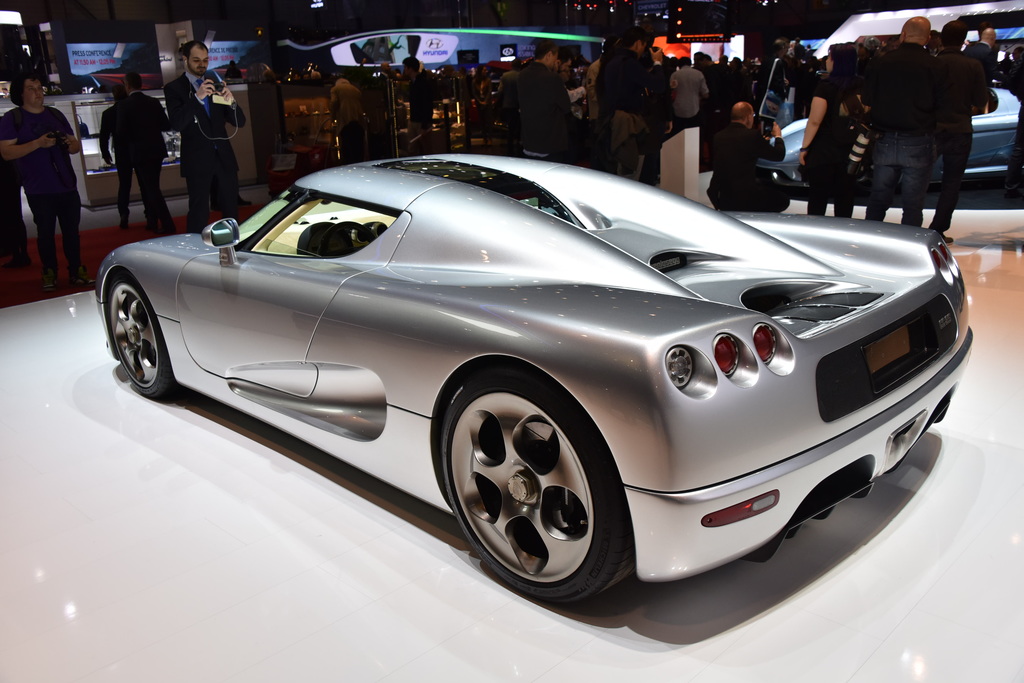

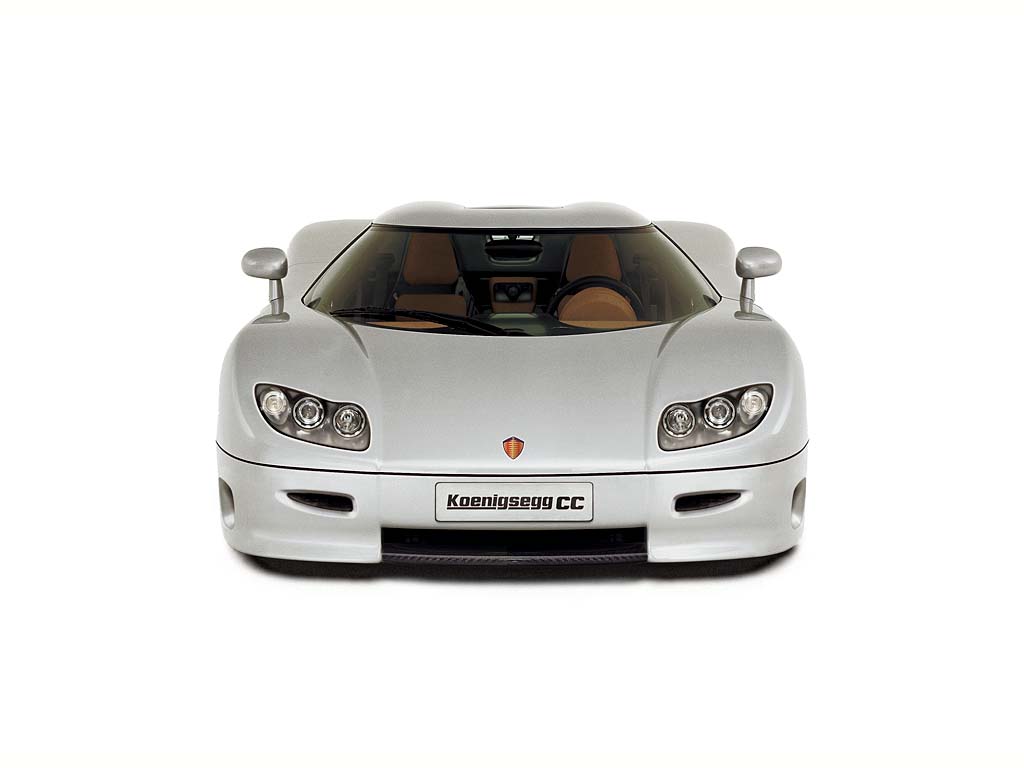

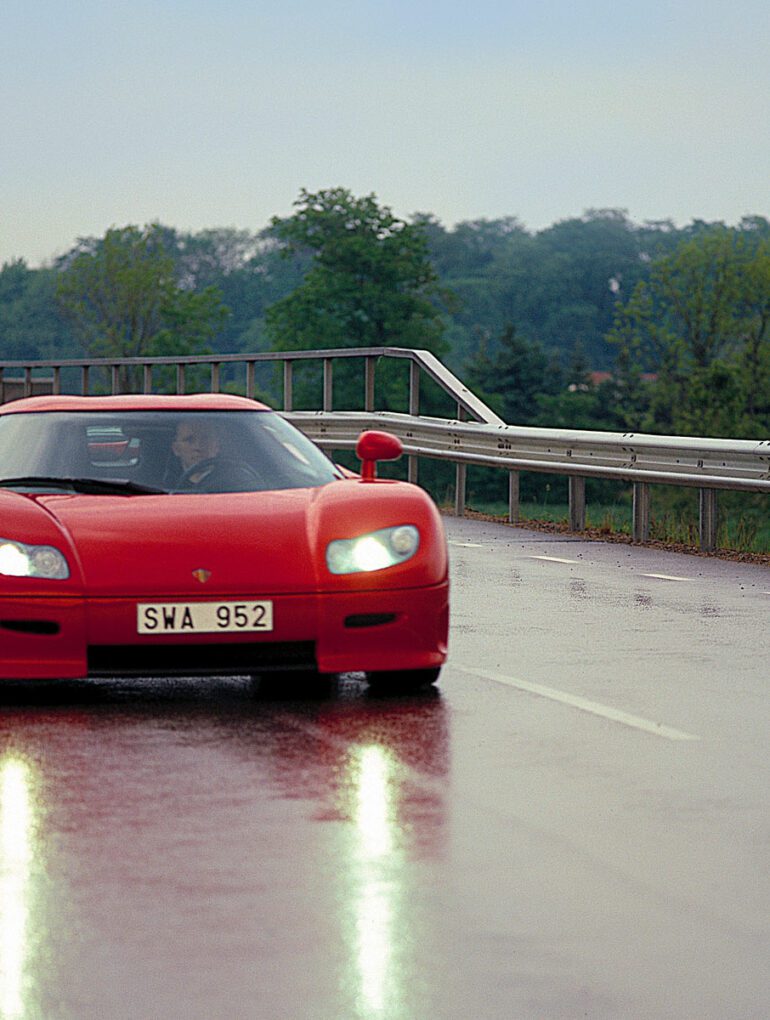

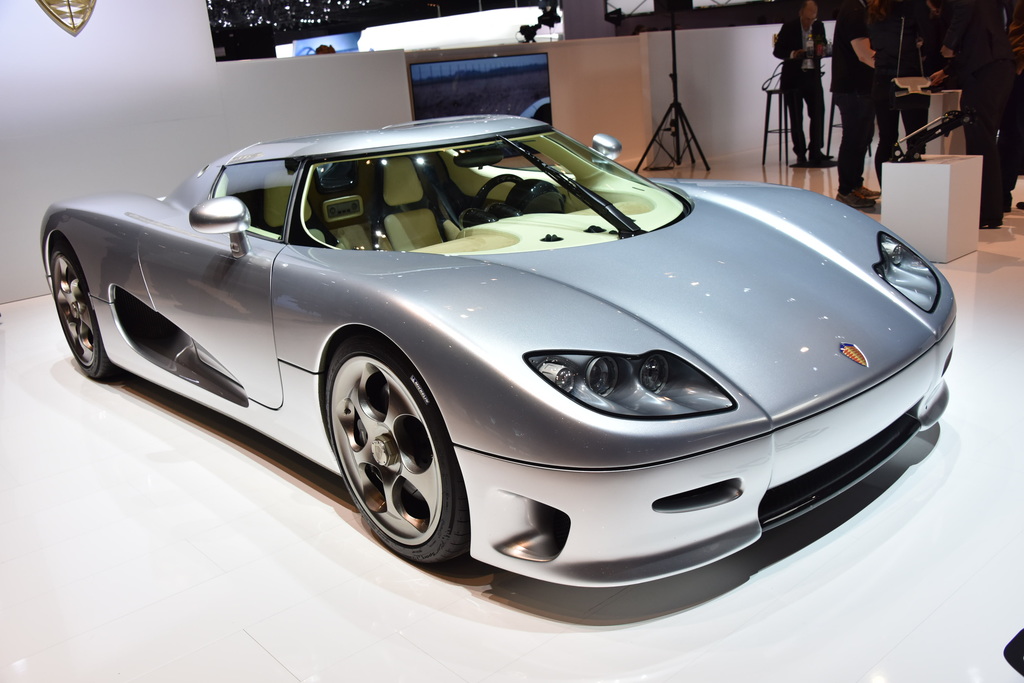

For 2002, Koenigsegg, a small Swedish manufacturer, have updated their V8 supercar. Compared to the 2002 CC, the new CC S8 features lights that are now held in a single unit instead of triple unit clusters. Also gone is the rear wing which is now optional. Following the 2002 Geneva Motor Show, the first red Koenigsegg CC 8S was delivered to its’ owner.

The Koenigsegg CC body and chassis are made of autoclaved epoxy pre-impregnated carbon fiber. The use of this material enables the car to be extremely strong, lightweight and completely resistant to corrosion.

The chassis is designed by composite engineers with experience from Formula One racing. It has a fully semi-monocoque self supporting center unit, that provides both world class rigidity and driver safety. It has 21 layers of carbon fiber varying between unidirectional and woven material, with intermediate spacing of aluminium honeycomb, as well as integrated tool grade solid aluminium joining points. The total weight of the semi-monocoque is a mere 62 kg.

The engine sits on top of a machined aluminium dry sump unit that also act as a supporting beam for the rear subframe. This milled aluminium subframe contains the Cima gearbox and supports the power transmission and suspension systems. It is kept rigidly in place by chromemolybdenium rods that are bolted to the chassis.

The specially developed semi-stressed supercharged and intercooled Quad Cam 4 valve 4.7l V8 engine delivers 655 smooth horsepowers at 6,800 rpm and 750 nm of torque at 5,000 rpm. Its very low weight, only 240 kg, has been achieved with the use of carbonfiber, titanium and aeroplane specified aluminium alloy. Carbonfiber valve and timing covers save about 12 kg compared to conventional materials. This combined with its small outer dimensions makes it ideal for use in a super car.

The centrifugal supercharging system is coupled to a large size intercooler with lightweight carbonfiber ducts and end-tanks. The intercooler manages to lower the charged intake air temperature from 150 degrees C to a mere 60 degrees C, allowing for a 1.2 bar boost pressure with a compression ratio of 8.6:1.

The specially developed gearbox by Cima relies heavily on experience from racing, even Formula One. The 6 speed gearbox is probably the strongest and most reliable transaxle gearbox ever built for a mid engine car. The gearbox incorporates an internal oil pump for reliable lubrication, and a large oil cooler, so that it can take the strain from the brutal force of the engine. The final gear ratio is calculated to propel the car close to 400 km/h at 7300 rpm.

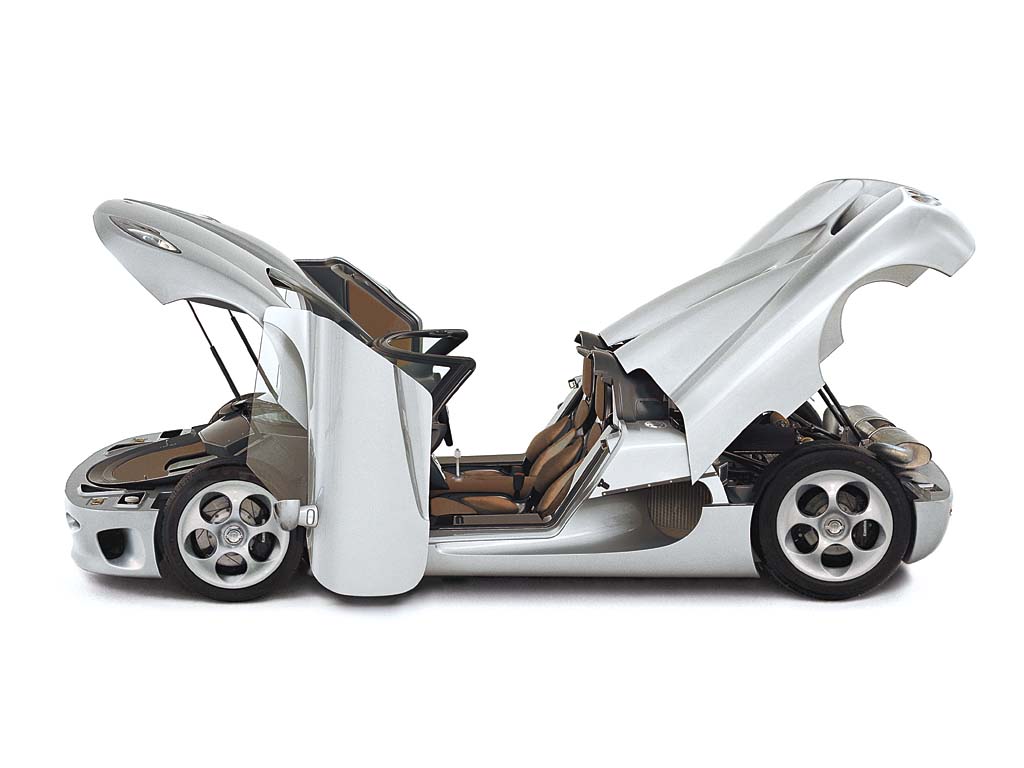

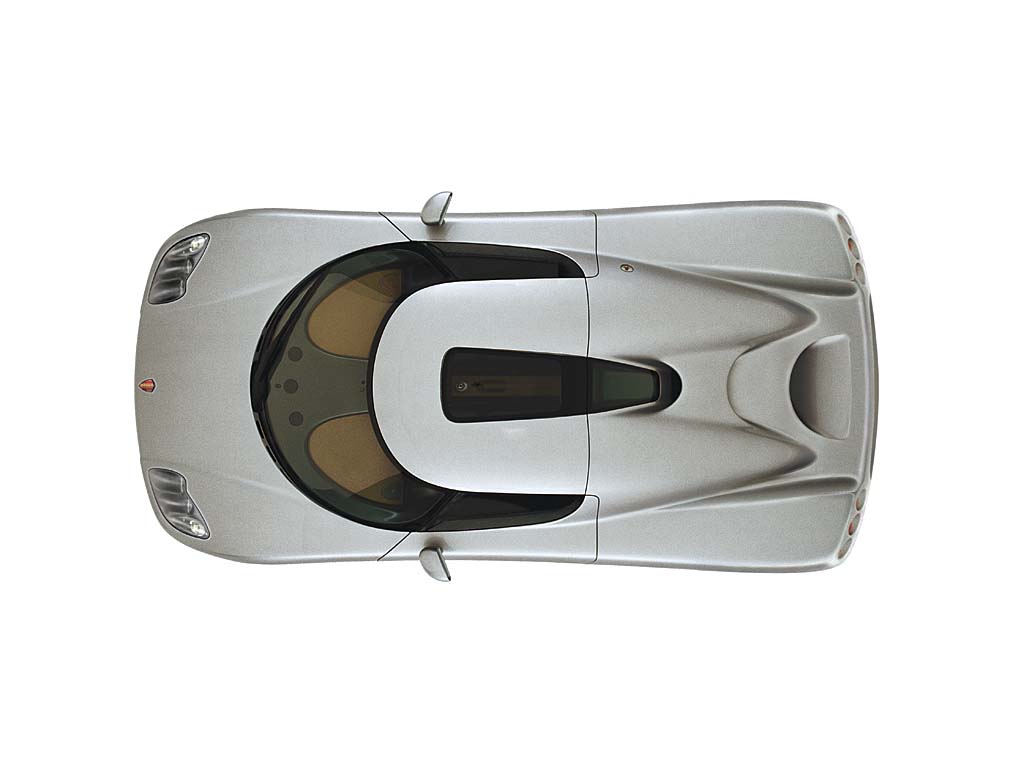

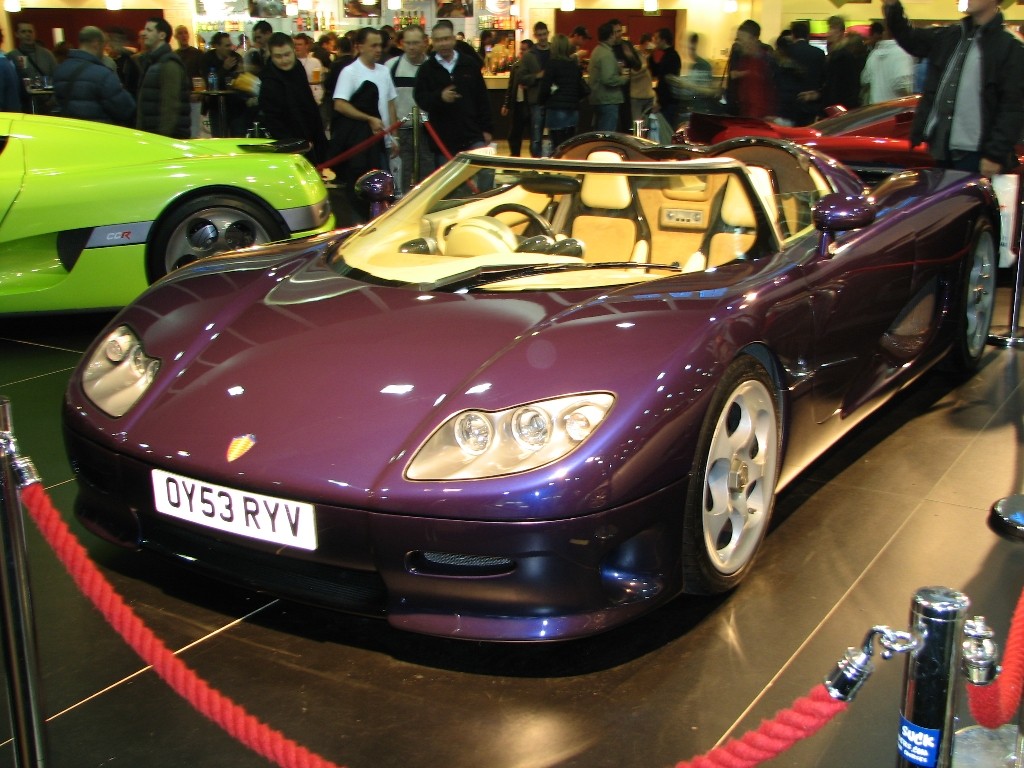

The body of the Koenigsegg CC 8S has been designed to incorporate the unique easy access removable and stowable hardtop. Pulling two handles from within unlocks the lightweight carbonfiber roof panel. The hardtop can now easily be removed and placed in the front luggage compartment, where it fits perfectly.

Specs & Performance

price $	$350 000 USD
engine	Aluminum 90 Degree, V8 w/Dry Sump Lubrication
position	Mid Longitudinal
aspiration	Supercharged
valvetrain	DOHC, 4 Valves per Cyl
fuel feed	Multi-Point Fuel Injection
displacement	4700 cc / 286.8 in³
power	488.4 kw / 655 bhp @ 6800 rpm
specific output	139.36 bhp per litre
bhp/weight	545.83 bhp per tonne
torque	750 nm / 553.2 ft lbs @ 5000 rpm
redline	7500
body / frame	Carbonfiber, Kevlar and Lightweight Hardfoam Sandwich Over Compo
driven wheels	RWD w/LSD
front tires	245/40 ZR 18
rear tires	315/40 ZR 18
front brakes	Vented Discs w/6-Pot Calipers, ABS
f brake size	x 345 mm / x 13.6 in
rear brakes	Vented Discs w/4-Pot Calipers, ABS
r brake size	x 330 mm / x 13.0 in
front wheels	F 45.7 x 22.9 cm / 18.0 x 9.0 in
rear wheels	R 45.7 x 29.2 cm / 18 x 11.5 in
steering	Rack & Pinion w/Power Assist
f suspension	Double Wishbones w/Pushrod Actuated Ohlins Shock Absorbers, Coil Springs, Anti-Roll Bar
r suspension	Double Wishbones w/Pushrod Actuated Ohlins Shock Absorbers, Coil Springs, Anti-Roll Bar
curb weight	1200 kg / 2646 lbs
wheelbase	2660 mm / 104.7 in
length	4190 mm / 165.0 in
width	1990 mm / 78.3 in
height	1070 mm / 42.1 in
transmission	Cima 6-Speed Manual w/Air to Oil Cooler, 215mm AP Racing Clutch
gear ratios	2.875:1, 1.772:1, 1.266:1, 1.000:1, 0.830:1, 0.711:1, :1
final drive	3.364:1
top speed	~386.2 kph / 240.0 mph
0 – 60 mph	~3.4 seconds
0 – 1/4 mile	~10.0 seconds
drag	0.30 Cd
