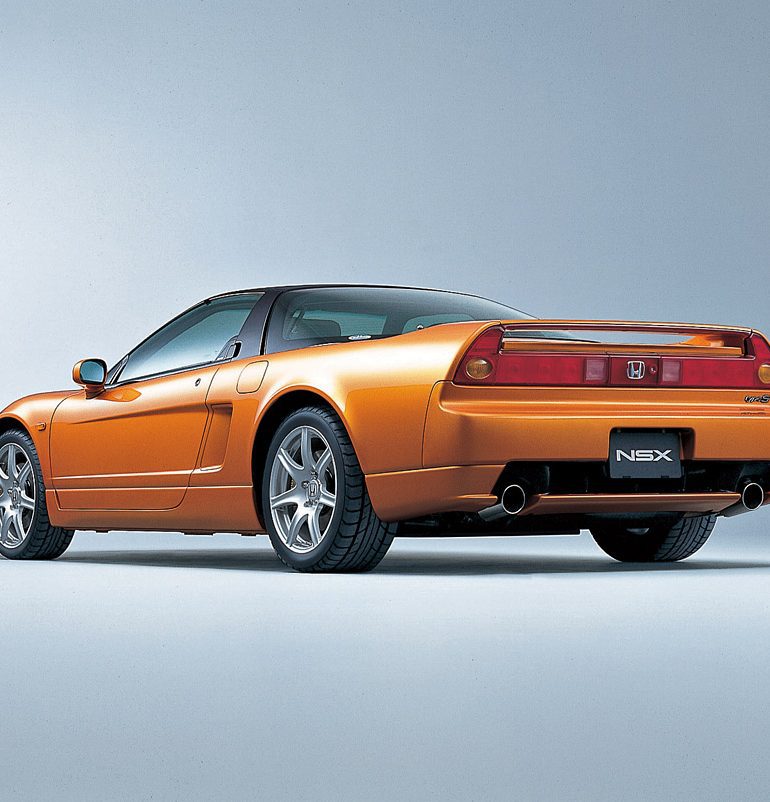

2002 Honda NSX Type-S

2002 Honda NSX Type-S

2002 Honda NSX Type-S

Titunium Shift Knob (like Formula-1), MOMO steering wheel, BBS lightweight aluminum wheels, Recaro full bucket seat, mesh design engine cover (like Type-R), same colored roof as body, 45kg lighter than regular model, harder suspension.

In Detail

submitted by Richard Owen
engine Mid Longitudinal V6
valvetrain DOHC, 4 Valves per Cyl w/VTEC
fuel feed Programmed Fuel Injection (PGM-FI)
displacement 3179 cc / 194.0 in³
bore 93 mm / 3.66 in
stroke 78 mm / 3.07 in
compression 10.2:1
power 208.8 kw / 290 bhp @ 7100 rpm
specific output 91.22 bhp per litre
bhp/weight 207.14 bhp per tonne
torque 303.7 nm / 224 ft lbs @ 5500 rpm
redline 8000
body / frame Unit Aluminum
front tires 215/40R1783Y
rear tires 255/40R1794Y
front brakes Vented Discs w/ABS
f brake size mm / in
rear brakes Vented Discs w/ABS
r brake size mm / in
front wheels F 43.2 x 17.8 cm / 17.0 x 7 in
rear wheels R 43.2 x 22.9 cm / 17 x 9 in
steering Rack & Pinion w/Variable Power Assist
f suspension A-Arms w/Coil Springs, Tube Shocks, 18.3mm Anti Roll Bar
r suspension A-Arms w/Coil Springs, Tube Shocks, 17.5mm Anti Roll Bar
curb weight 1400 kg / 3086 lbs
wheelbase 2530 mm / 99.6 in
front track 1510 mm / 59.4 in
rear track 1540 mm / 60.6 in
length 4425 mm / 174.2 in
width 1810 mm / 71.3 in
height 1170 mm / 46.1 in
transmission 6-Speed Manual
gear ratios 3.066:1, 1.956:1, 1.428:1, 1.125:1, 0.914:1, 0.717:1, :1
final drive 4.062:1
top speed ~281.6 kph / 175 mph
0 – 60 mph ~5.5 seconds
0 – 100 mph ~12.2 seconds
0 – 1/4 mile ~13.4 seconds
drag 0.30 Cd
