2001 Nissan Nails Concept

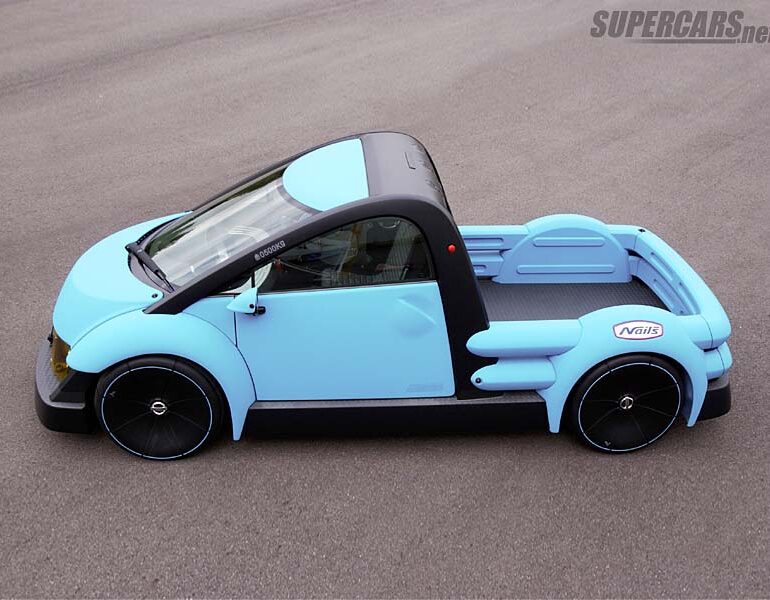

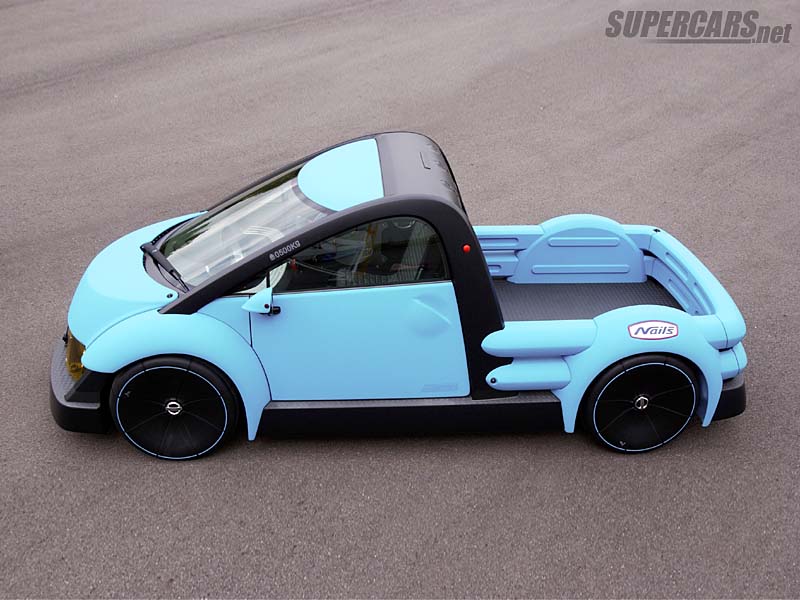

With the wheels/tires positioned at the four corners, the Nails Concept achieves an exceptionally efficient use of space in the compact body. This emphasis on the wheels/tires imparts a sense of boldness. The pickup styling of the Nails concept features a unique construction formed by placing an A-shaped cabin frame on the low floor that runs from the cabin along the length of the bed.Various body panels such as the hood, fenders and doors are given a treatment to allow rough use without being concerned about scratches or dents.

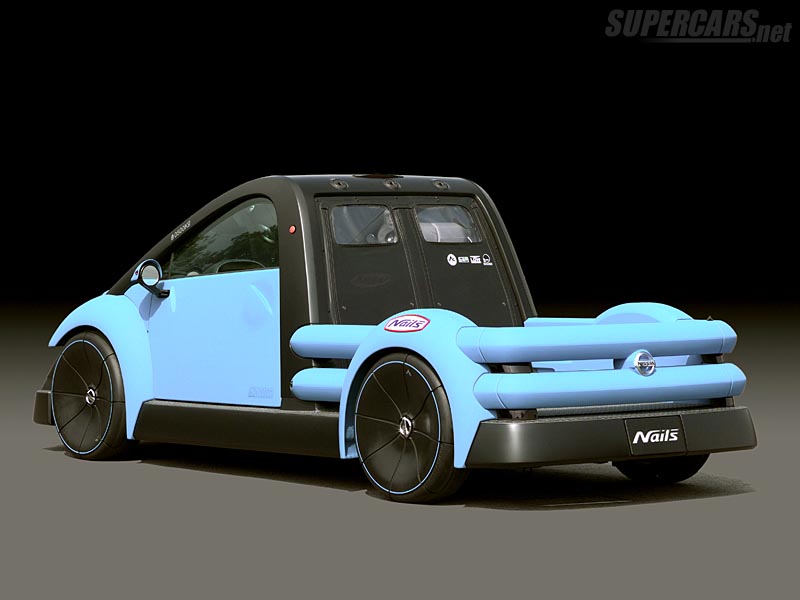

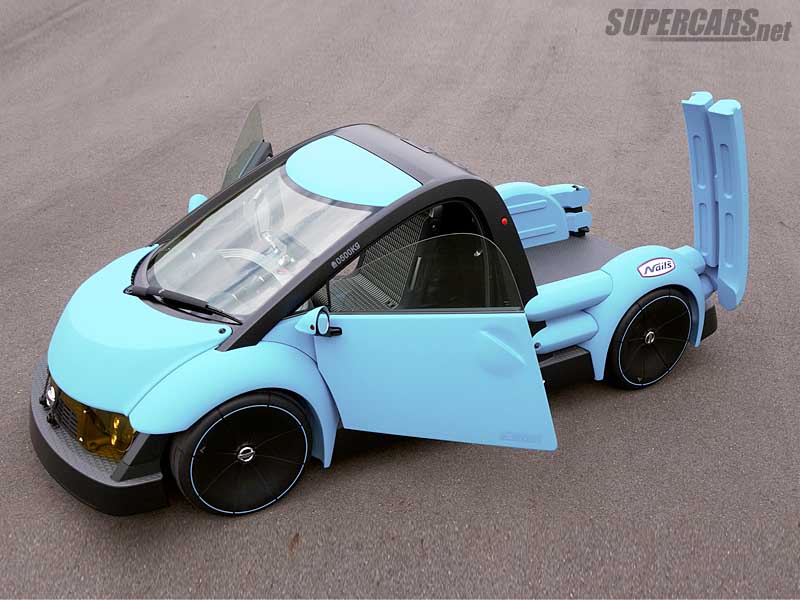

The Nails concept design allows large, heavy items, such as surfboards or off-road bikes, to be transported easily, thanks to its flat bed and foldable rear gate. A soft rear partition that is opened or closed by hooks and fasteners is provided between the cabin and the bed. The flat floor connecting the bed and the cabin makes it easy to carry long items.
In Detail
| engine | QG15DE Inline-4 |
| position | Front Mounted |
| aspiration | Natural |
| valvetrain | DOHC |
| displacement | 1497 cc / 91.4 in³ |
| bore | 73.6 mm / 2.9 in |
| stroke | 88 mm / 3.46 in |
| compression | 9.9:1 |
| power | 78.3 kw / 105 bhp @ 6000 rpm |
| specific output | 70.14 bhp per litre |
| bhp/weight | bhp per tonne |
| torque | 138 nm / 101.8 ft lbs @ 4400 rpm |
| driven wheels | FWD |
| front tires | 195/60 R18 |
| rear tires | 195/60 R18 |
| f brake size | mm / in |
| r brake size | mm / in |
| f suspension | Double Wishbones |
| r suspension | Double Wishbones |
| wheelbase | 2580 mm / 101.6 in |
| front track | 1500 mm / 59.1 in |
| rear track | 1500 mm / 59.1 in |
| length | 4250 mm / 167.3 in |
| width | 1720 mm / 67.7 in |
| height | 1470 mm / 57.9 in |
| transmission | 4-Speed Auto |
| gear ratios | :1 |
