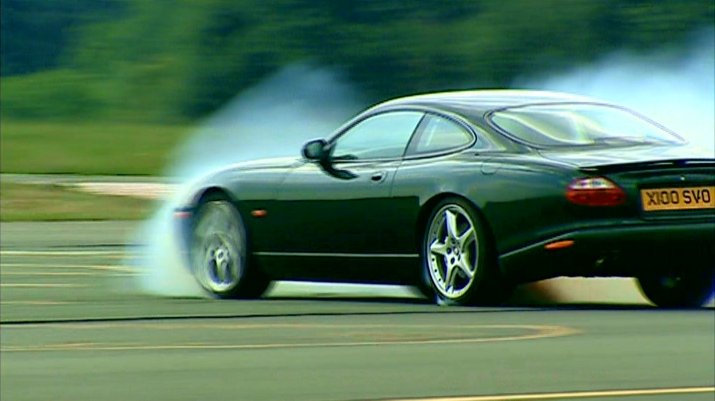

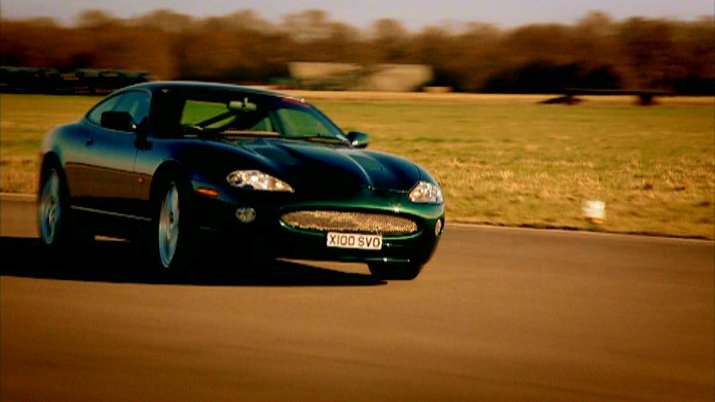

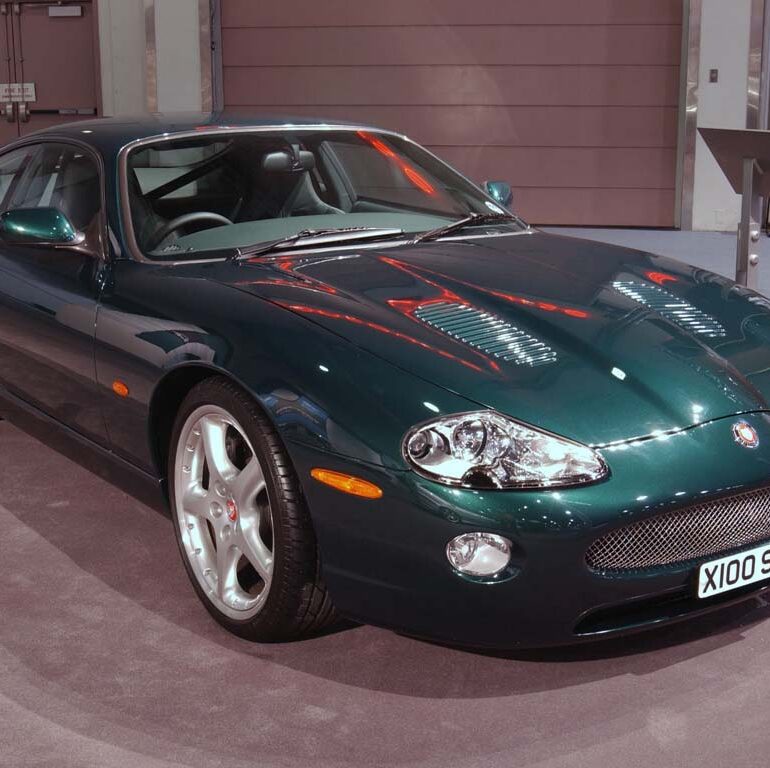

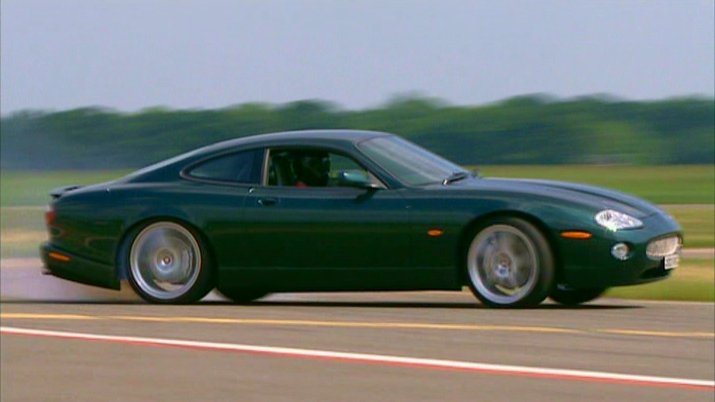

2001 Jaguar XKR-R Concept
The ultimate expression of Jaguar’s top-of-the-line XKR-R is motivated by a supercharged V-8 engine boosted to over 400 horsepower. Not a single component escaped Jaguar’s Special Vehicle Operations (SVO) team’s attention in the metamorphosis from stock XKR to the unique XKR-R, from the shape of the front bumper to the quad-outlet exhaust.
SVO began strengthening the rear by installing an eight-point roll-bar. The rear suspension is greatly revised from the stock XKR, and features the entire rear floor area from the S-TYPE sedan, along with the rear axle from an S-TYPE. The new axle provides for a better range of adjustment and tuning.
The XKR-R rides lower than a stock XK8 by 30 millimeters, and the purposeful look of the car is further accentuated by the fitting of Jaguar’s own 20-inch BBS-sourced R-Performance wheels. The wheels are filled with Jaguar’s Brembo-sourced R-Performance brake calipers and cross-drilled rotors. With the addition of specially produced front and rear bumpers, sculptured rocker panels and trunk lid spoiler, the car looks more purposeful and aggressive.
Inside, the XKR-R is a showcase for planned R-Performance dealer-installed options and one-off components. In addition to the rollbar, SVO installed Recaro racing seats and four-point seatbelts.
Behind the engine, SVO replaced the stock five-speed automatic transmission with a customized Tremec T-56 six-speed manual unit, similar to that found in the Dodge Viper and Chevrolet Corvette. The T56 is a stout unit, and paired with an AP Racing twin-plate clutch, is a suitable partner for the XKR-R’s power and torque.
Jaguar XKR-R Concept Video
In Detail
| engine | AJ-V8 |
| position | Front |
| displacement | 3996 cc / 243.9 in³ |
| bore | 86 mm / 3.39 in |
| stroke | 86 mm / 3.39 in |
| power | 298.3 kw / 400.0 bhp |
| specific output | 100.1 bhp per litre |
| bhp/weight | bhp per tonne |
| torque | 542.33 nm / 400.0 ft lbs |
| body / frame | Unit Steel |
| driven wheels | RWD |
| front tires | 255/35ZR20 |
| rear tires | 285/30ZR20 |
| front brakes | Brembro Cross Drilled Discs w/4-Pot Calipers & ABS |
| f brake size | x 355 mm / x 14.0 in |
| rear brakes | Brembro Cross Drilled Discs w/4-Pot Calipers & ABS |
| r brake size | x 330 mm / x 13.0 in |
| front wheels | F 50.8 x 22.9 cm / 20.0 x 9.0 in |
| rear wheels | R 50.8 x 25.4 cm / 20.0 x 10.0 in |
| f suspension | Independant Double Wishbones w/Coil Over Shock Reservoir Units a |
| r suspension | Independant Double Wishbones w/Coil Over Shock Reservoir Units a |
| transmission | Tremec T56 6-Speed Manual |
| gear ratios | 2.66:1, 1.78:1, 1.30:1, 1.00:1, 0.74:1, 0.50:1, :1 |
| top speed | ~289.7 kph / 180.0 mph |
| 0 – 60 mph | ~4.6 seconds |
| drag | Cd |
