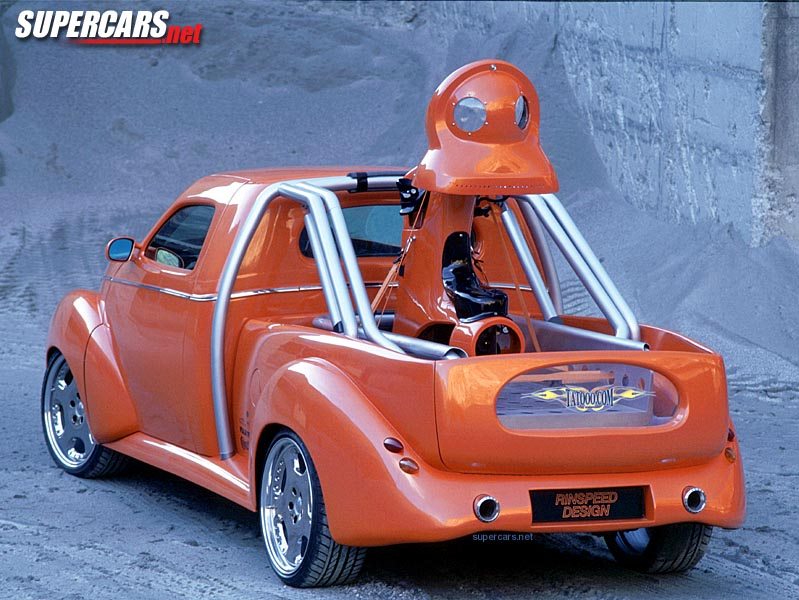

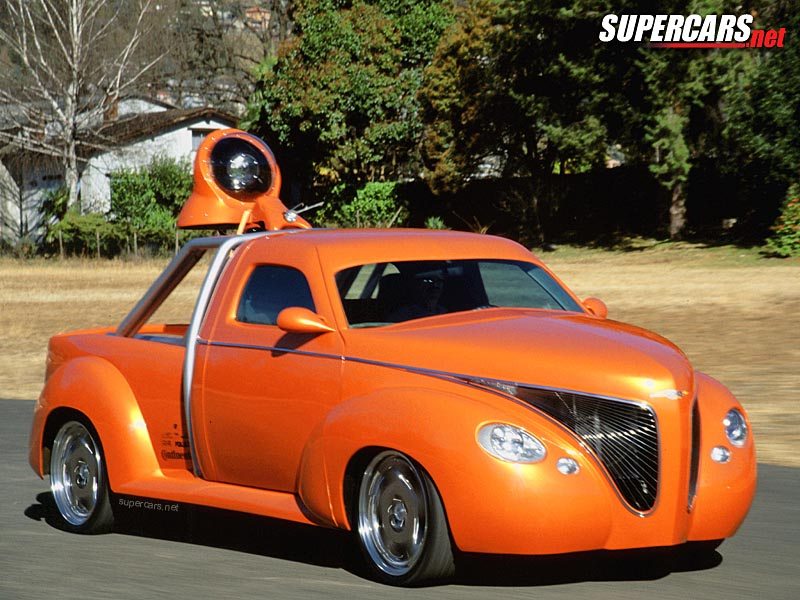

2000 Rinspeed Tatooo.com Concept

2000 Rinspeed Tatooo.com Concept

2000 Rinspeed Tatooo.com Concept

The RINSPEED TATOOO.COM features a pneumatic suspension to keep the vehicle leveled perfectly at all times. An infinite number of suspension settings are available at the push of a button. This offers a couple of advantages. In addition to continuously adjustable ride firmness, the suspension permits adjustments in ride height, depending on terrain, speed or road conditions.

The lifting mechanism X-Tra-Lift (+ patents pending), introduced last year, has undergone intensive further development. Through the use of a dual-arm cantilever, engineers have achieved linear lift without a center of gravity. A mechanical drive, located below the truck bed, swivels both arms to and fro in tandem, thus lifting or lowering the load platform in less than a minute. The electric motor is powered by the vehicle battery and activated by remote control. The system also incorporates all possible safety features, including an inclination angle limiter.

In Detail

submitted by Richard Owen
engine V8
displacement 5665 cc / 345.7 in³
bore 99 mm / 3.9 in
stroke 92 mm / 3.62 in
compression 10.1:1
power 305.0 kw / 409.0 bhp @ 5800 rpm
specific output 72.2 bhp per litre
bhp/weight bhp per tonne
torque 555 nm / 409.3 ft lbs @ 4350 rpm
front tires 245/35ZR-20
rear tires 295/40ZR-20
f brake size x 330 mm / x 13.0 in
r brake size x 305 mm / x 12.0 in
front wheels F 50.8 x 21.6 cm / 20.0 x 8.5 in
rear wheels R 50.8 x 24.1 cm / 20.0 x 9.5 in
curb weight 1660 kg / 3660 lbs
wheelbase 2995 mm / 117.9 in
length 4935 mm / 194.3 in
width 1910 mm / 75.2 in
height 1425 mm / 56.1 in
gear ratios :1
top speed ~245 kph / 152.2 mph
0 – 60 mph ~5.2 seconds
