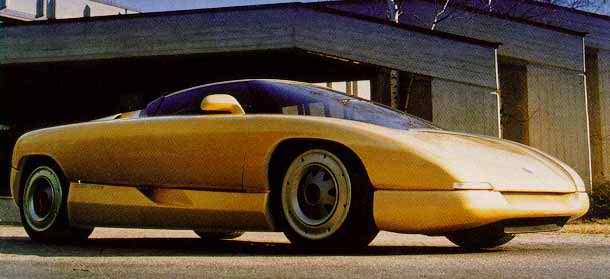

1990 Bertone Nivola Concept

The Nivola may be considered Bertone’s homage to the most fascinating American sports car: the Chevrolet Corvette. The sophisticated mechanical unit of the ZR-1 was interpreted by Bertone in a European key. Bertone designed a special chassis to make a sporty “boat” with a mid engine. This mechanical layout made it possible to exploit all the power of the engine when accelerating and warrant perfect roadholding on bends.

The name, Nivola, is after the famous driver, Tazio Nuvolari, nicknamed “Nivola”, much admired by Bertone, who usually drove his cars dressed in yellow.

Put on show at the 1990 Geneva Motor Show, the prototype was built around the LT-5 engine of the ZR-1. The impressive 381 Hp engine was moved back behind the cockpit and teamed with a new ZF gearbox, thus achieving a balanced distribution of weight (40% on the front axle and 60% on the rear axle). This highly sporty model has a central engine with an original structure designed around it. The body of the Nivola came into being at the same time as the chassis, and the two components are closely integrated. The result is a two-seater coupé which can be transformed into a spider with the removal of the slender roof. There are some really original touches, like the seats without cushioning (driver and passenger sit directly on the base of the vehicle), and the doors which conceal two ample baggage compartments. The hydraulic-pneumatic suspensions allow for a vertical range of movement of 6 cm respect to the ground. All in all another ambitious project from the artistic and technological powerhouse of the Bertone Style Centre.

In Detail

engine	V8
valvetrain	DOHC 4 Valves / Cyl
displacement	5727 cc / 349.5 in³
bore	99 mm / 3.9 in
stroke	93 mm / 3.66 in
compression	11.0:1
power	275.9 kw / 370 bhp @ 6200 rpm
specific output	64.61 bhp per litre
bhp/weight	bhp per tonne
torque	501.7 nm / 370 ft lbs @ 4500 rpm
driven wheels	Mid Engine / RWD
front tires	245/40ZR-17
rear tires	315/35ZR-17
front brakes	Discs w/ABS
f brake size	mm / in
r brake size	mm / in
front wheels	F 43.2 x 20.3 cm / 17 x 8 in
rear wheels	R 43.2 x 27.9 cm / 17 x 11 in
steering	Rack & Pinion w/Power Assist
wheelbase	2548 mm / 100.3 in
front track	1549 mm / 61 in
rear track	1600 mm / 63 in
length	4204 mm / 165.5 in
width	1981 mm / 78 in
height	1100 mm / 43.3 in
transmission	5-Speed Manual
gear ratios	:1
