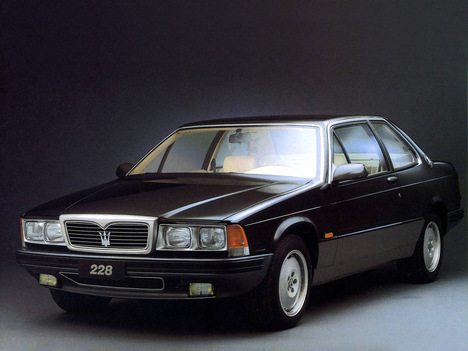

1986 Maserati 228
The 228 was also referred to as the 228i or “iniezione” on some company brochures and commercial documentation, but the model was in fact one and the same. Larger and longer than the Biturbo, it featured a similar design, though with softer surface treatment and with no panels in common.
As a 5-seater notchback coupé in the ilk of the Kyalami, Mexico or 3500 GT, it was based on the long (2.6 metres) wheelbase chassis of the four-door Biturbo sedan, and styled by free-lance designer Pierangelo Andreani.
The interior was opulent with leather and wood trim and the typical Maserati clock. The prototype featured twin cam/4-valve-heads and twin-plug ignition, still with a single carburettor, and was presented at the 70th anniversary of Officine A. Maserati SpA, on 14 December 1984.
The production car reverted to single cam/3-valve-heads, single ignition and fuel injection, and was introduced in Spring 1986 at the Turin Motor Show. Power output reached 250 HP from 2.8 litres, down to 225 HP with catalyser but still with plenty of low-down torque.

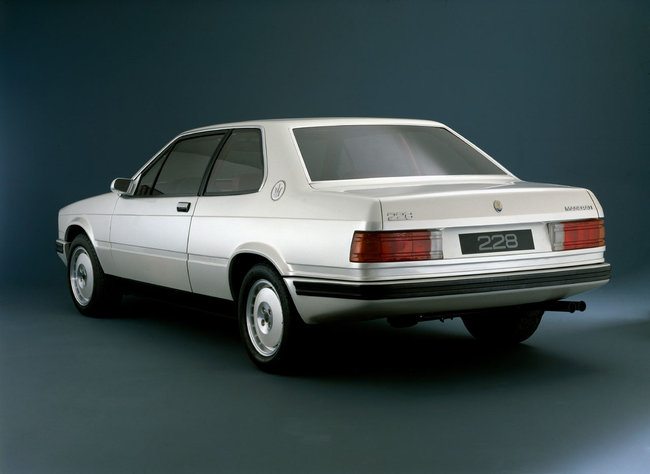

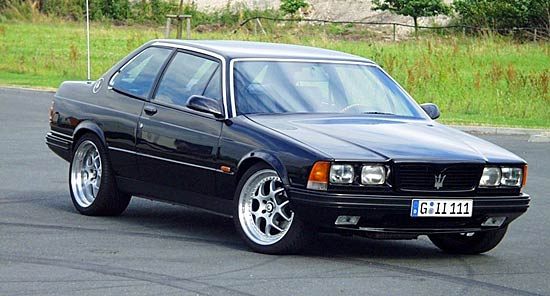

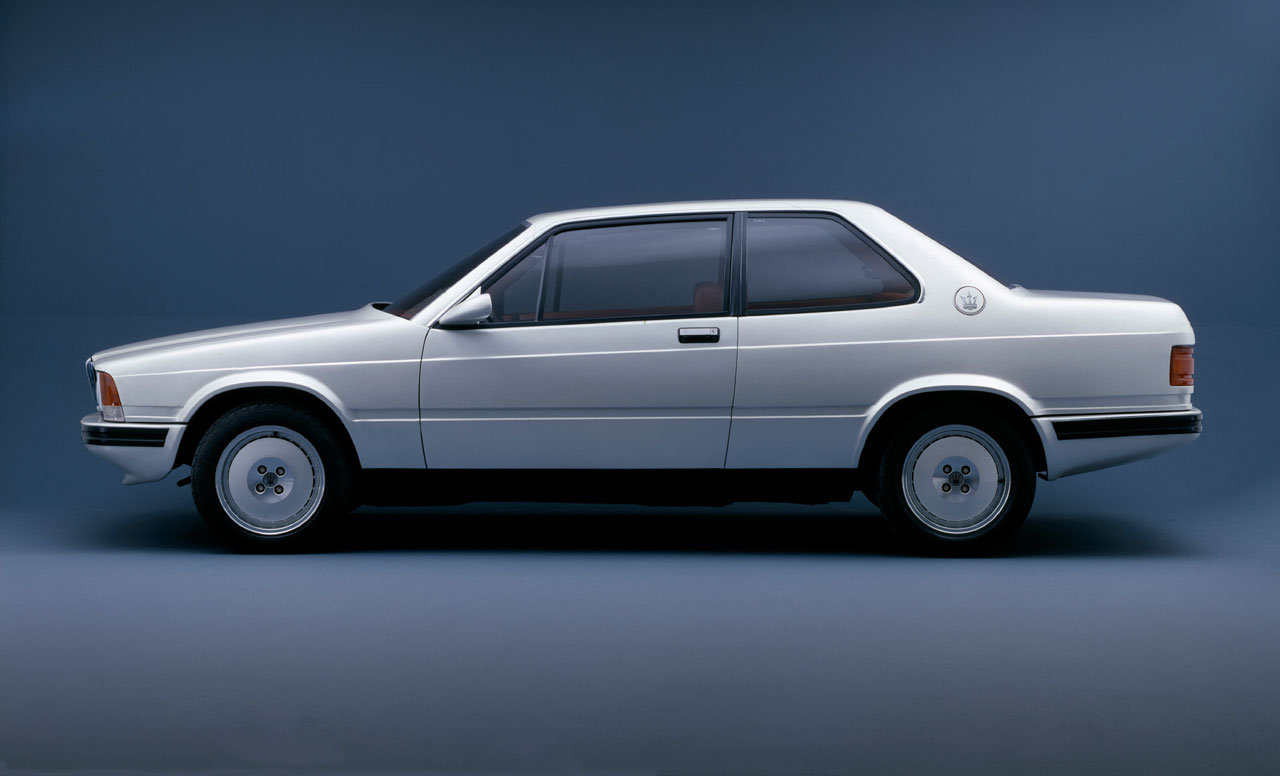

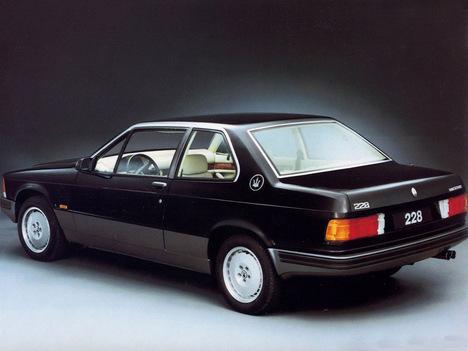

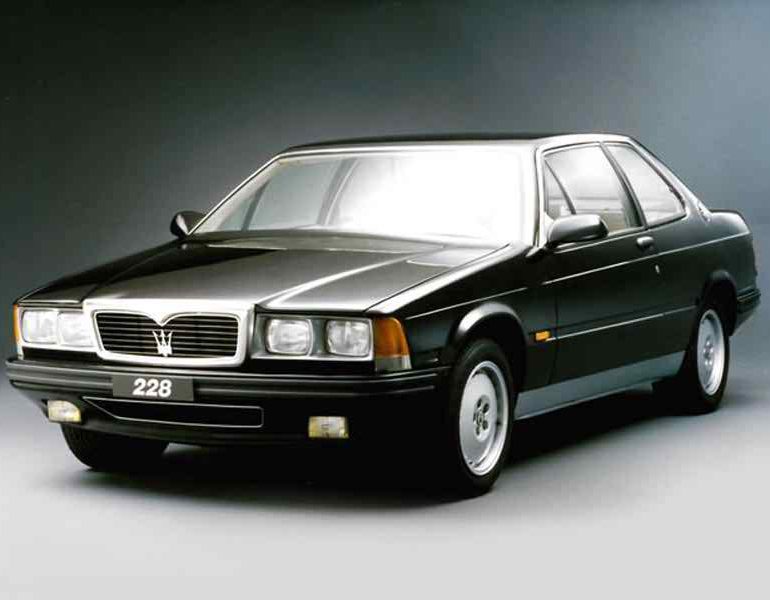

Maserati 228 Gallery
In Detail
| type | Series Production Car |
| built at | Italy |
| production | 469 |
| engine | 90° V6 |
| position | Front Longitudinal |
| aspiration | Twin IHI Water-Cooled Turbos |
| ignition | Electronic Ignition |
| valvetrain | DOHC, 3 Valves per Cyl |
| displacement | 2789 cc / 170.2 in³ |
| bore | 94 mm / 3.7 in |
| stroke | 67 mm / 2.64 in |
| compression | 7.7:1 |
| power | 186.4 kw / 250.0 bhp @ 6000 rpm |
| specific output | 89.64 bhp per litre |
| bhp/weight | 196.7 bhp per tonne |
| torque | 372.85 nm / 275.0 ft lbs @ 6000 rpm |
| body / frame | Unitary Steel Monocoque |
| driven wheels | RWD |
| front tires | 225/55VR15 |
| rear tires | 225/55VR15 |
| front wheels | F 38.1 x 17.8 cm / 15.0 x 7.0 in |
| rear wheels | R 38.1 x 17.8 cm / 15.0 x 7.0 in |
| steering | Rack & Pinion w/Power Assist |
| f suspension | MacPherson Struts w/Telescopic Dampers, Coil Springs, Anti-Roll Bar |
| r suspension | Semi-Trailing Arms w/Telescopic Dampers, Coil Springs, Anti-Roll Bar |
| curb weight | 1271 kg / 2800 lbs |
| wheelbase | 2600 mm / 102.4 in |
| front track | 1540 mm / 60.6 in |
| rear track | 1550 mm / 61.0 in |
| length | 4460 mm / 175.6 in |
| width | 1865 mm / 73.4 in |
| height | 1330 mm / 52.4 in |
| transmission | Getrag 5-Speed Manual |
| top speed | ~235 kph / 146.0 mph |
| 0 – 100 kph | ~5.6 seconds |
