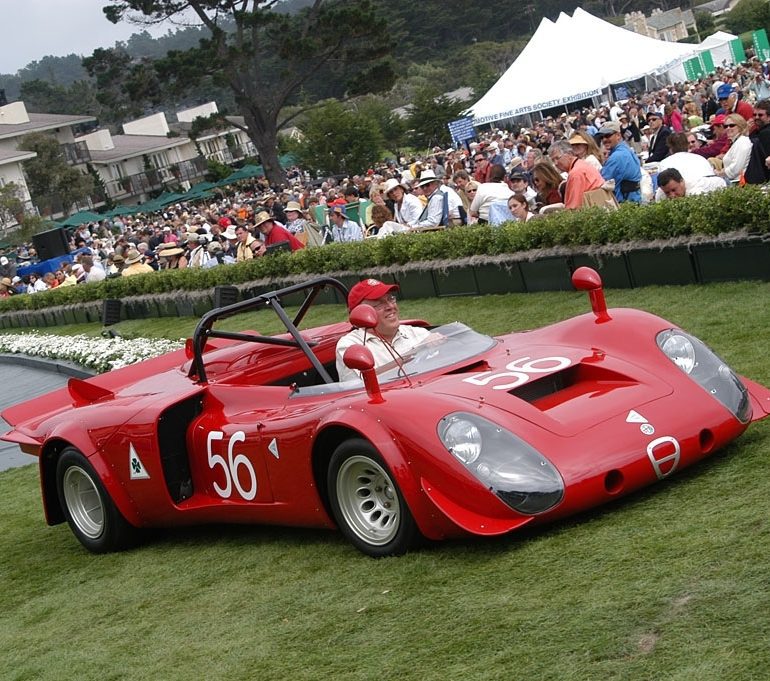

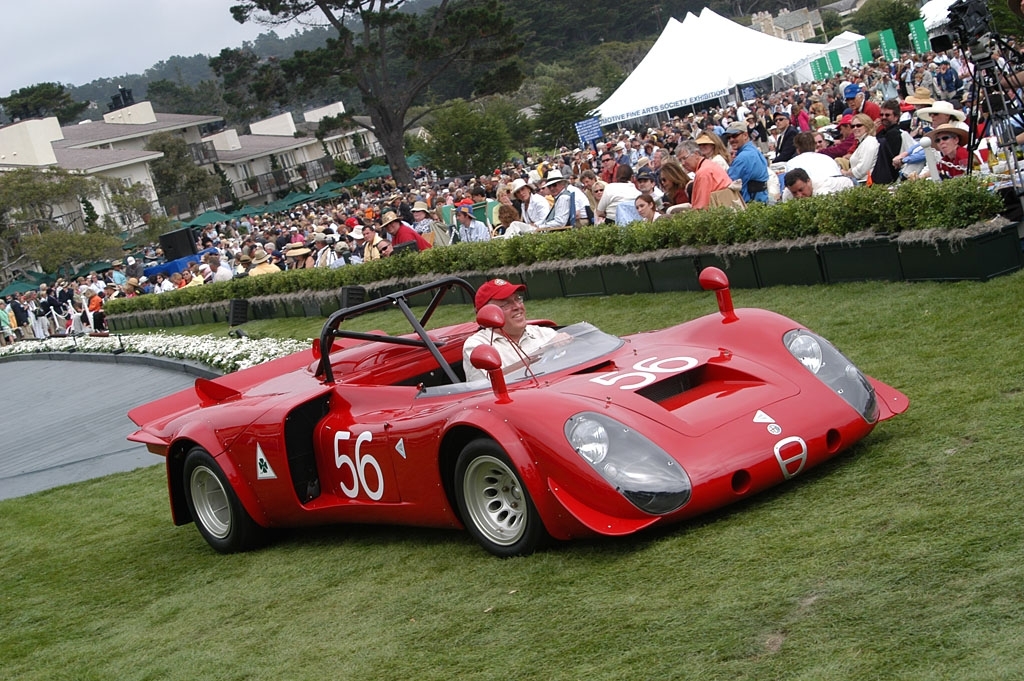

1969 Alfa Romeo T33/2 Spyder
In 1969, Autodelta converted a number of 1968 cars to spyder configuration for continued use. The resultant design was very similar to the T33/2 Daytone minus all the bodywork above the windscreen base. This configuration was chosen for the 1969 Targa Florio which sometimes these cars are named after.
The new body was fitted to a chassis very similar to the 1967 car with its large-diameter H-frame chassis that also carried the fuel. The 270 bhp, 2-liter, aluminum V8 was retained to avoid a costly engine development program.
Sources & Further Reading
1. Collins, Peter et. al. Alfa Romeo Tipo 33.Veloce: December 2005.
2. Kidston, Simon. http://www.kidston.com. 2008
3.Chizzola, Gianni.Autodelta. Campanotto: 2004.
In Detail
| type | Racing Car |
| built at | Settimo Milanese, Italy |
| engineers | Guisseppe Busso, Oarzio Satta, Carlo Chiti |
| engine | 90º V8 w/Dry Sump Lubrication |
| position | Mid, Longitudinal |
| aspiration | Natural |
| block material | Aluminum |
| valvetrain | Gear-Driven DOHC, 2 Valves per Cyl |
| fuel feed | Lucas Mark II Fuel Injection |
| displacement | 1995 cc / 121.74 in³ |
| bore | 78 mm / 3.1 in |
| stroke | 52.5 mm / 2.1 in |
| compression | 11.0:1 |
| power | 201.3 kw / 270 bhp @ 9600 rpm |
| specific output | 135.34 bhp per litre |
| bhp/weight | 465.52 bhp per tonne |
| body / frame | Aluminum Body over Aluminum Large-Diameter Frame w/Front & Rear Magnesium Subframes |
| driven wheels | RWD |
| front tires | 4.75×13 |
| rear tires | 6.00×13 |
| f suspension | Double Wishbones w/Coil Springs, Telescopic Shock Absorbers, Anti-Roll Bar |
| r suspension | Double Wishbones w/Radius Rods, Coil Springs, Telescopic Shock Absorbers, Anti-Roll Bar |
| curb weight | 580 kg / 1279 lbs |
| wheelbase | 2250 mm / 88.6 in |
| front track | 1340 mm / -1.0 in |
| rear track | 1450 mm / 57.1 in |
| length | 3960 mm / 155.9 in |
| width | 1760 mm / 69.3 in |
| height | 990 mm / 39.0 in |
| transmission | Alfa Romeo 6-Speed Manual |
| race victories | 1968 Mugello GP |
