1955 Ferrari 735 LM
In 1955, Ferrari’s faith in four and 12-cylinder cars began was under question by Lampredi who designed a 6-cylinder engine. The body and chassis was similar to that from the Mondial Series II.
The first six-cylinder was raced at the 1955 Buenos Aires 1000km in January. Known as the 376 S, 280 bhp was possible from the 3.7-liter engine. After Piero Trauffi won the Giro de Siclia, the cars were outfitted with a 4.4-liter engine that was one of most powerful in 1955.
Called the Tipo 121, the 4.4-liter engine was capable of 360 bhp. Fed by 58mm Weber carburetors, three of these engines were fitted into cars for the 1955 season. Eugenio Castellotti drove a 735 LM at the Mille Miglia.

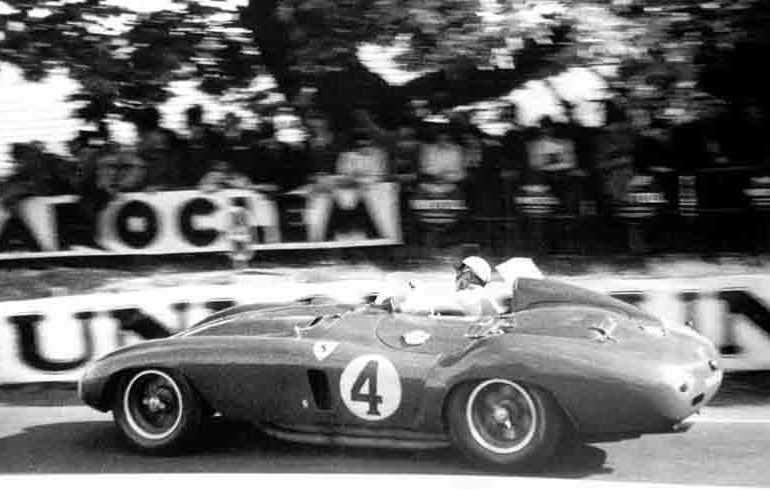

All three 735 LMs were sent to the 24 Hours of Le Mans
In Detail
| submitted by | Richard Owen |
| type | Racing Car |
| built at | Maranello, Italy |
| engine | Inline-6 |
| valvetrain | DOHC 2 Valves / Cyl |
| fuel feed | 58mm Weber Carburetors |
| displacement | 4412 cc / 269.2 in³ |
| bore | 102 mm / 4.02 in |
| stroke | 90 mm / 3.54 in |
| compression | 8.5:1 |
| power | 268.5 kw / 360 bhp @ 6000 rpm |
| specific output | 81.6 bhp per litre |
| bhp/weight | 423.53 bhp per tonne |
| driven wheels | Front Engine / RWD |
| front brakes | Hydraulic Drums |
| rear brakes | Hydraulic Drums |
| curb weight | 850 kg / 1874 lbs |
| wheelbase | 2400 mm / 94.5 in |
| front track | 1278 mm / 50.3 in |
| rear track | 1284 mm / 50.6 in |
