1950→1951 Porsche 356 ‘Split-Window’ Cabriolet

1950→1951 Porsche 356 ‘Split-Window’ Cabriolet

1950→1951 Porsche 356 ‘Split-Window’ Cabriolet

After producing the first German 356, a ‘Split-Window’ Coupé, Porsche produced a Cabriolet shortly there after which was built by Karrosseriewerk Reutter.

Initial prodcutione output exceeded 30 cars a month with both Coupé and Cabriolet bodies. Both were loosely based off their equivalents made in Gmünd, Austria but had bodied made in steel instead of aluminum.

The engine was the same VW 1086cc that employed a Porsche cylinder head, the same design that was used on the last few Gmünd cars. Bodies were all sourced from Reutter except some cabriolets which were sent to Glässer when demand was great than Reutter could handle. By November of 1950 80 cars were being made per month.

At the Frankfurt motor show in 1951 a suite of upgrades was announced including Lockheed discs and a 1.3-liter engine. This used larger bore, finned aluminum cylinders with chromed cylinders from Mahle. The engine had lower compression for pump fuel and could still produce 4 additional bhp.

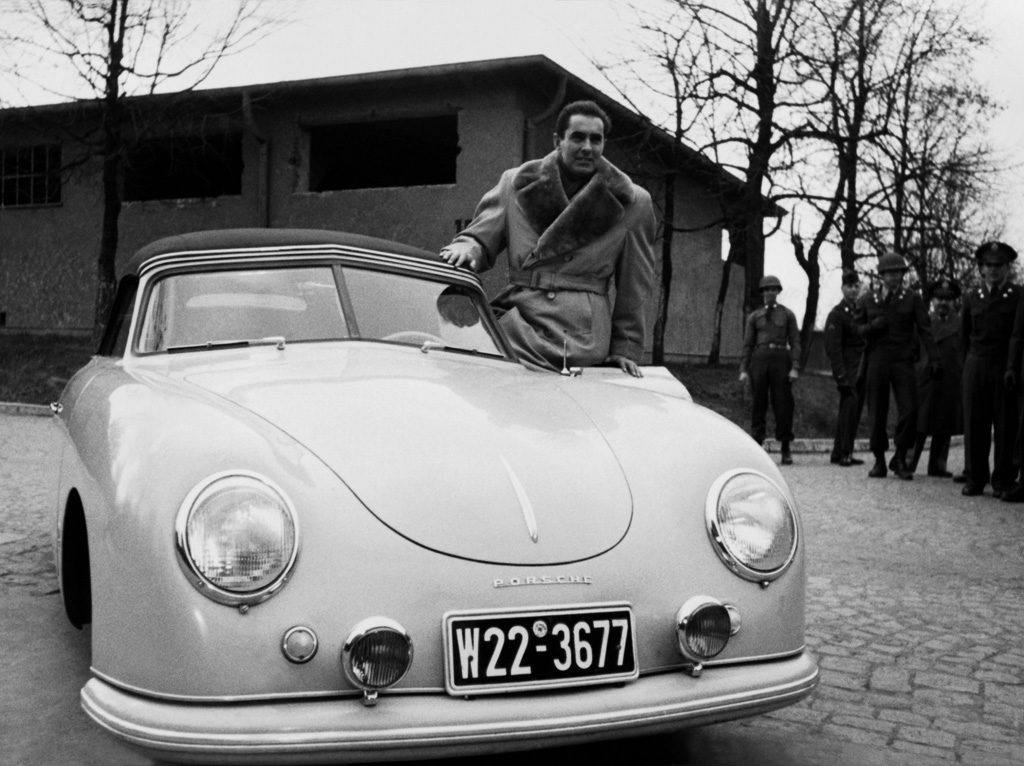

1950_Porsche_356SplitWindowCabriolet1

Most of the 356 production was eventually sold to Max Hoffman who was the sole importer for America and had a dealership on Park Avenue in New York City. After racing three aluminum-bodied Gmünd Coupés at the 1951 24 Hours of Le Mans the 356 appeal grew.

Before the 1952 year, Porsche and Reutter improved the car with a one-piece bent windshield, Not too long afterward in mid-1952 the bumpers were repositioned at the request of Max Hoffman. By the end of the year the seminal 1500 engine was released with Hirth-sourced crankshafts and connecting rods which became known for their rolling bearing big-ends.

In Detail

submitted by Richard Owen
type Series Production Car
production years 1950 – 1951
built at Stuttgart, Germany
body stylist Erwin Komenda
coachbuilder Karrosseriewerk Reutter
price $ $ 2,000
engine Type 369 VW Air Cooled Flat-4 w/Porsche Cylinder Head
position Rear, Longituinal
aspiration Natural
valvetrain Pushrod OHV
fuel feed Dual Solex 26 VFJ Downdraft
displacement 1086 cc / 66.27 in³
stroke 64 mm / 2.5 in
compression 7.00:1
power 29.8 kw / 40 bhp @ 4200 rpm
specific output 36.83 bhp per litre
bhp/weight 50.38 bhp per tonne
body / frame Steel Body over Steel Tub Chassus
driven wheels RWD
wheel type Steel Discs
front tires 5.00-16
rear tires 5.00-16
steering VW Worm & Nut
f suspension VW Parallel Trailing Arms, Tubular Dampers
r suspension VW Leading Arms w/Torsion Bars, Hydraulic Lever-Arm Shock Absorbers
curb weight 794 kg / 1750 lbs
wheelbase 2101 mm / 82.7 in
front track 1290 mm / 50.8 in
rear track 1250 mm / 49.2 in
length 3950 mm / 155.5 in
transmission VW 4-Speed Manual
top speed ~160 kph / 99.4 mph
0 – 60 mph ~13.9 seconds
0 – 1/4 mile ~19.2 seconds
