1939 Maserati 4CL

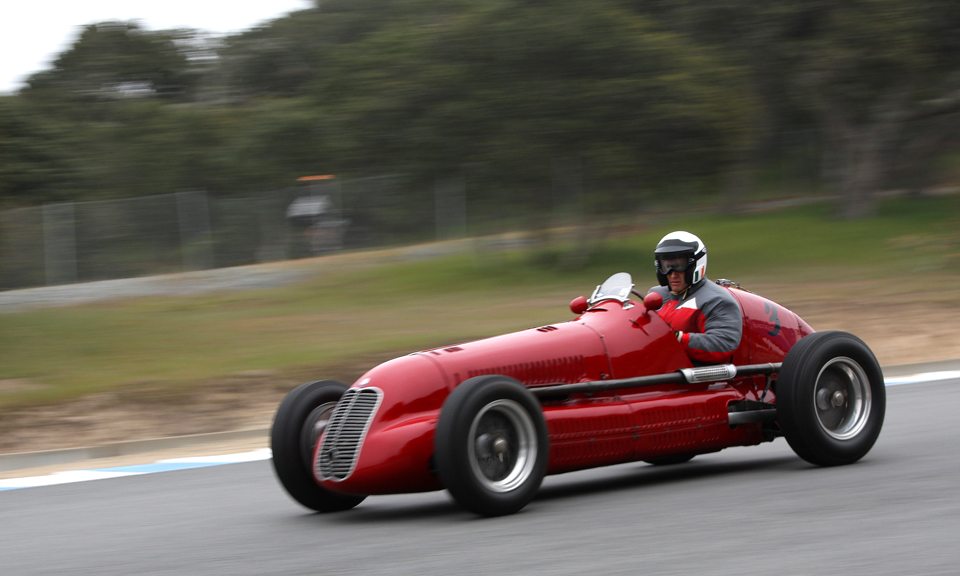

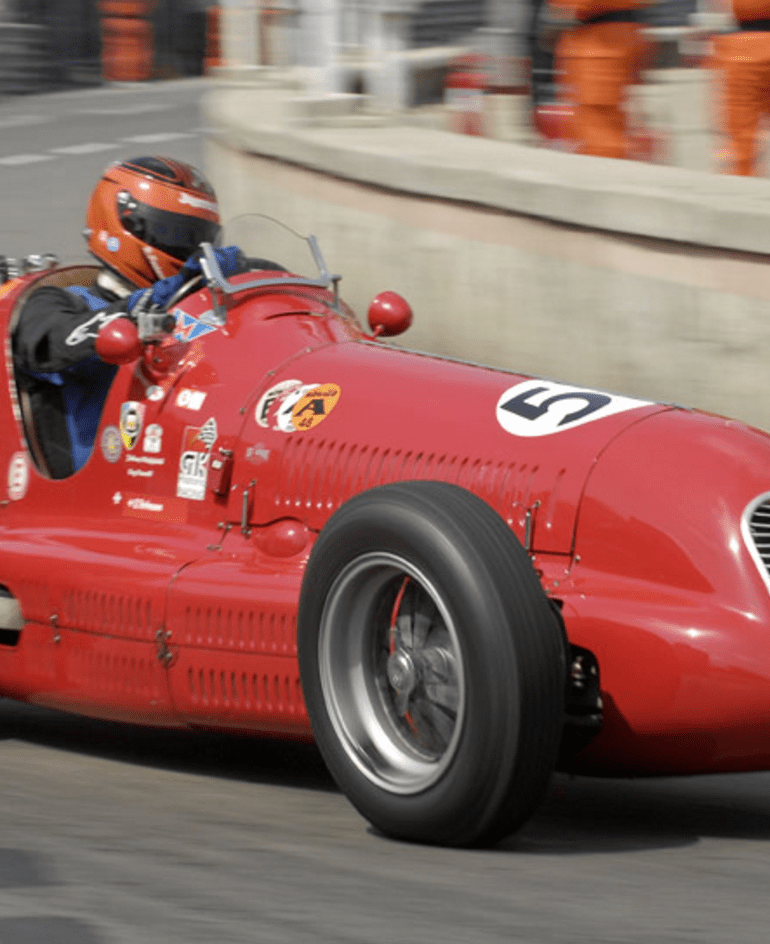

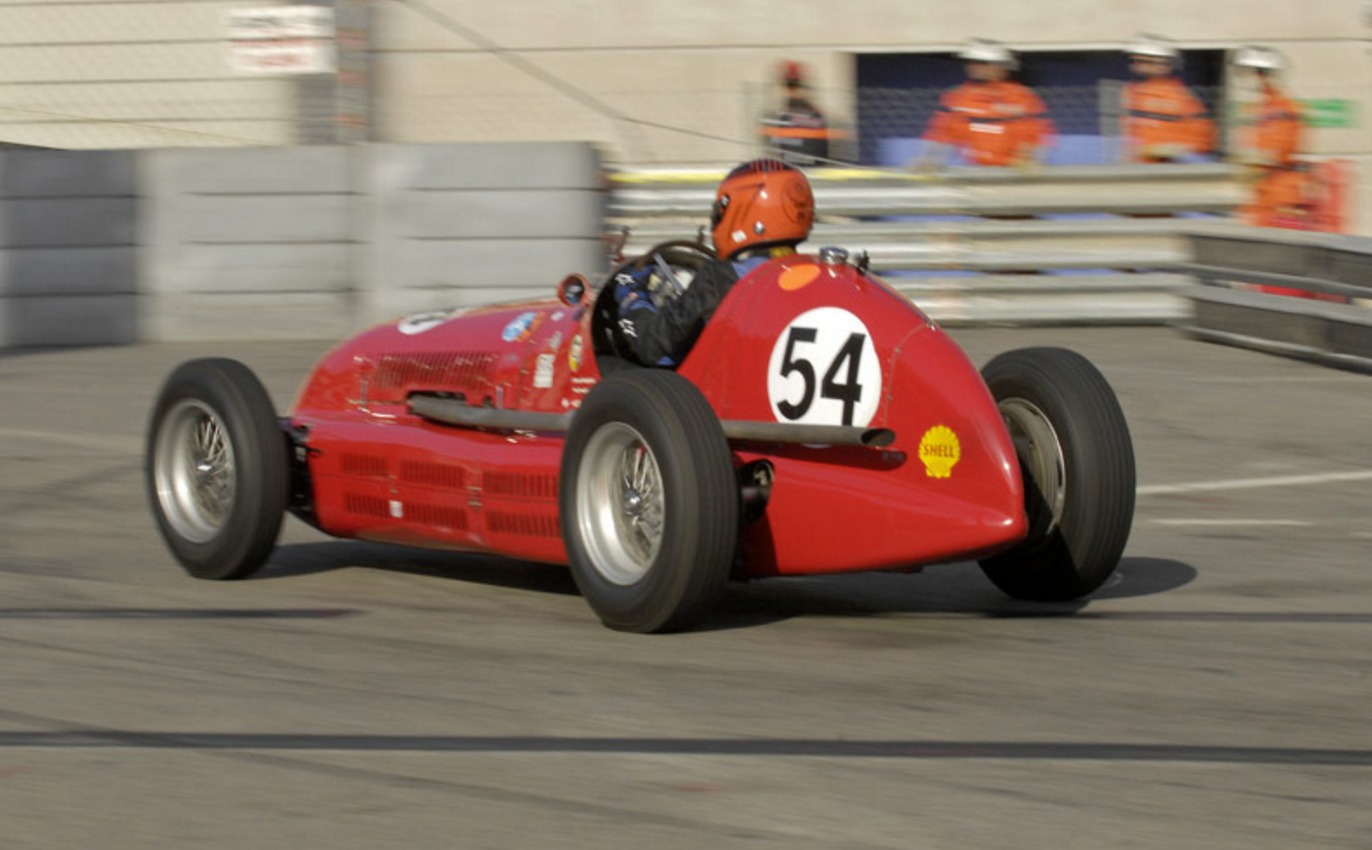

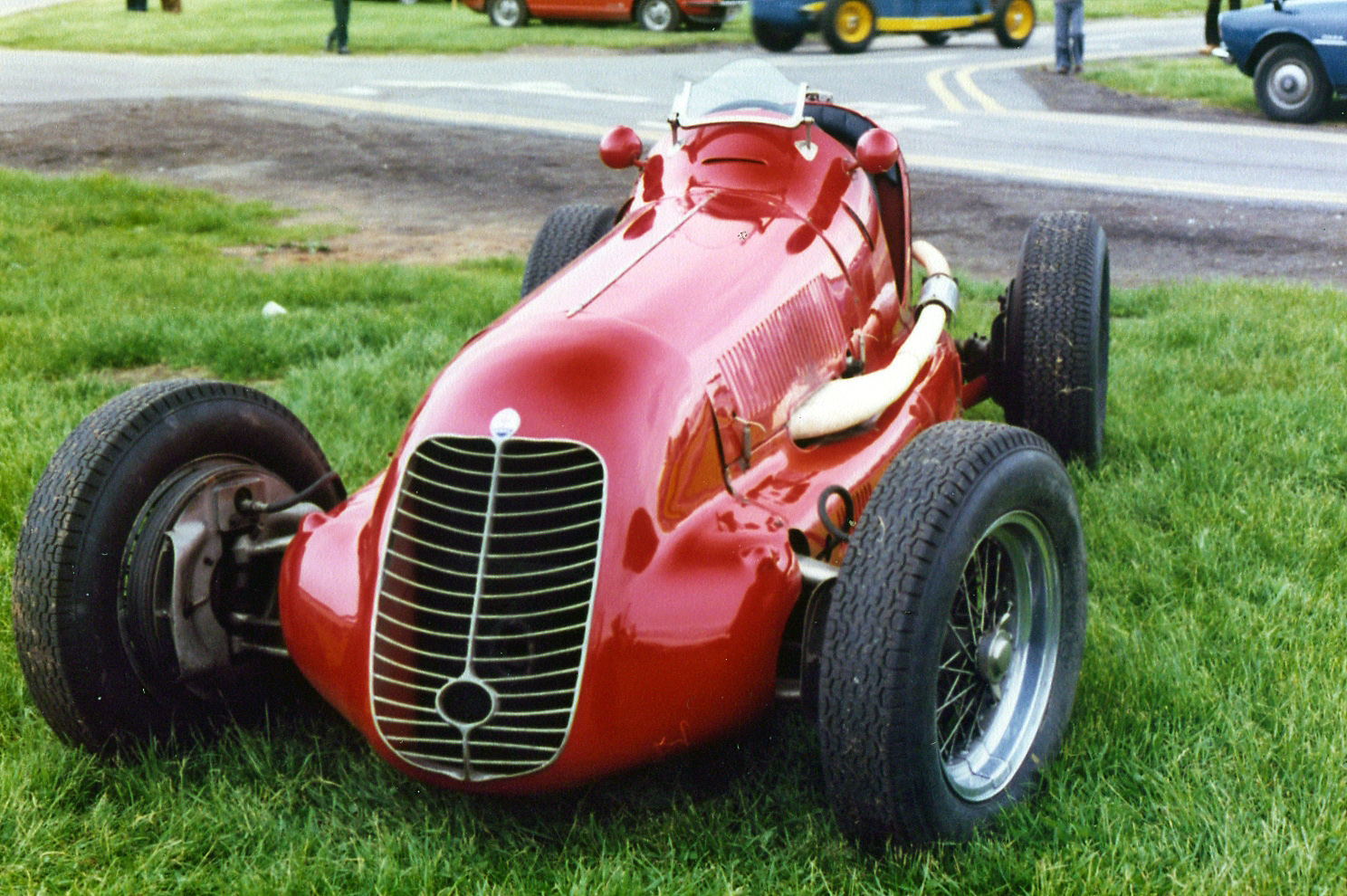

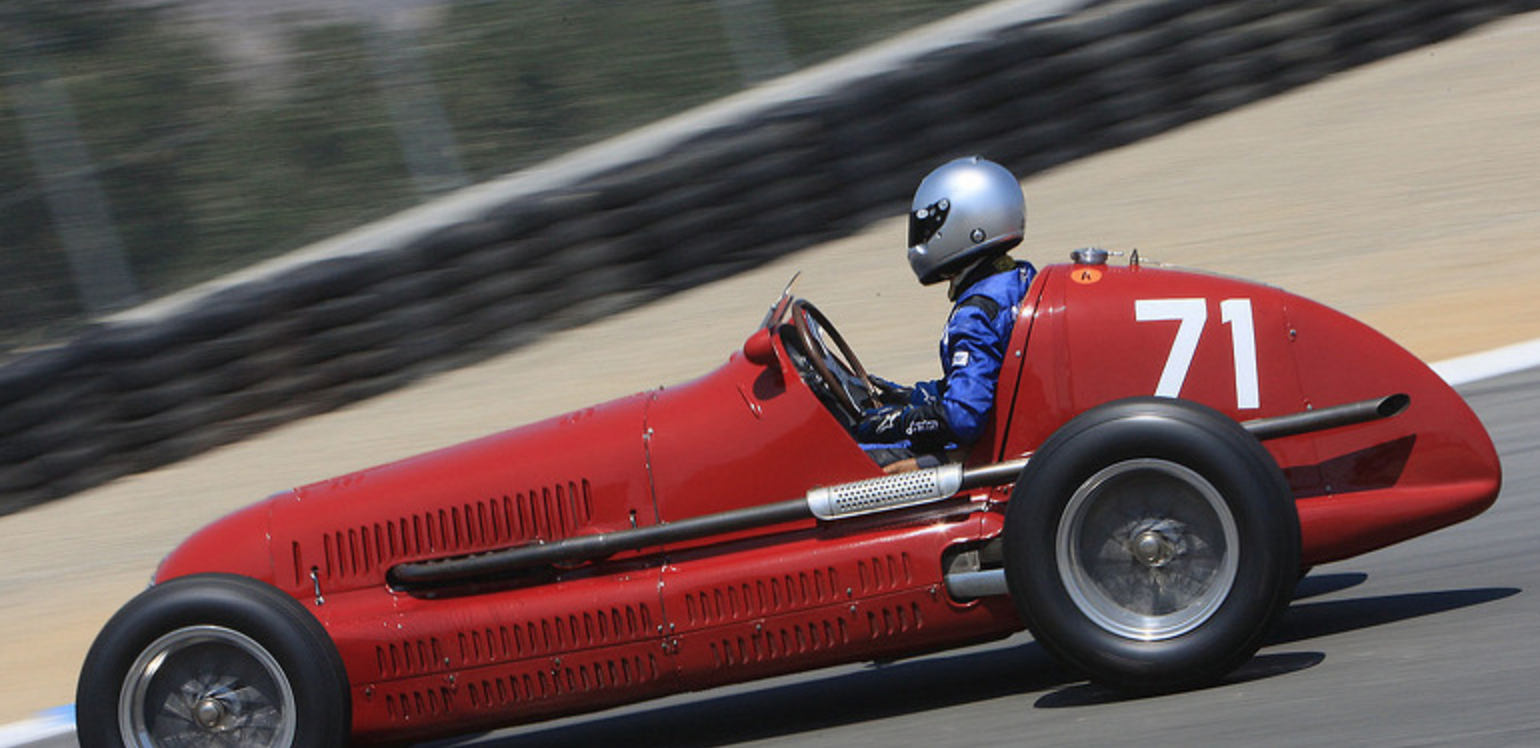

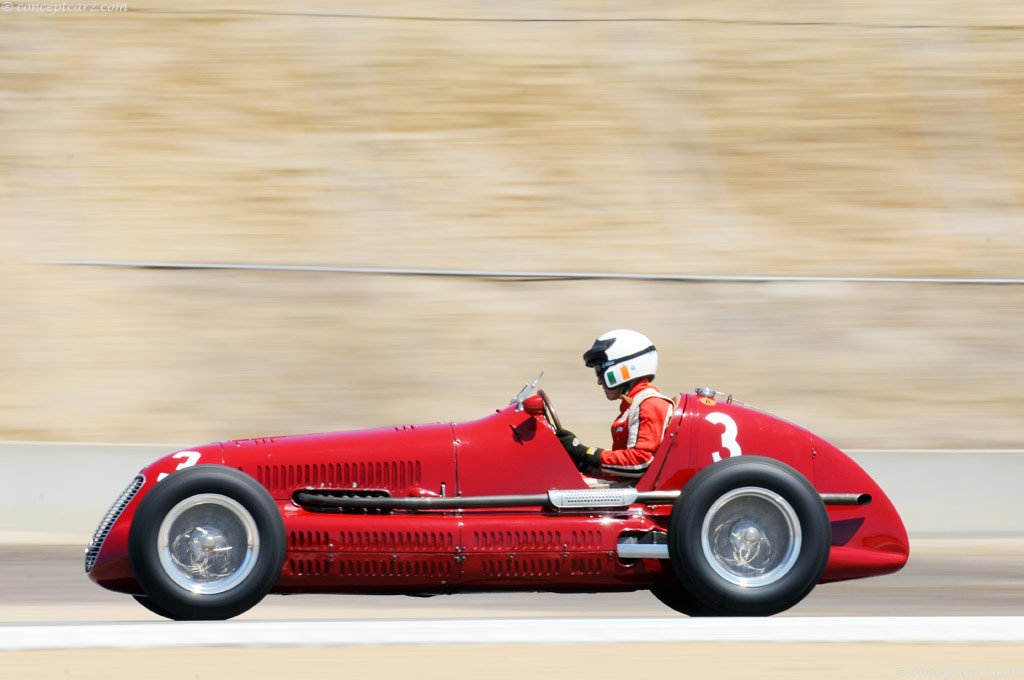

The Maserati 4CL and its derived sister model the Maserati 4CLT are single-seat racing cars that were designed and built by Maserati.

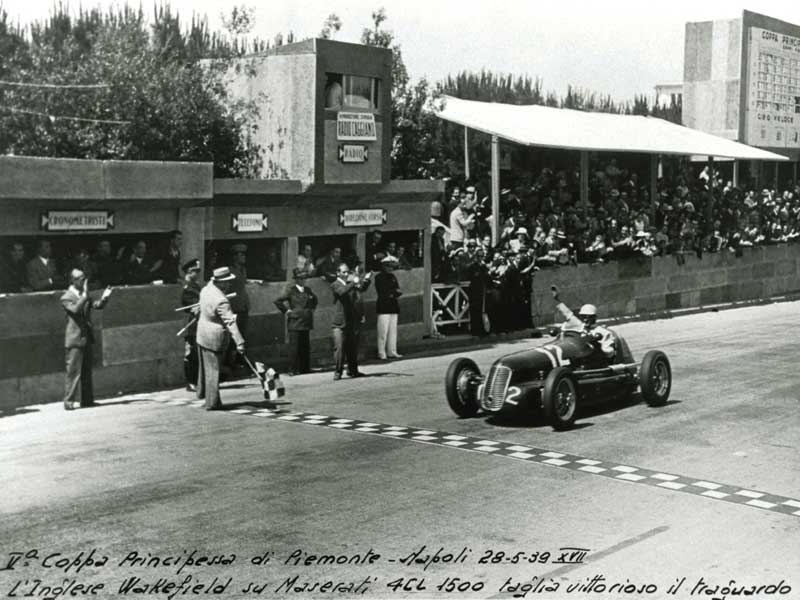

The 4CL was introduced at the beginning of the 1939 season, as a rival to the Alfa Romeo 158 and various ERA models in the voiturette class of international Grand Prix motor racing. Although racing ceased during World War II, the 4CL was one of the front running models at the resumption of racing in the late 1940s. Experiments with two-stage supercharging and tubular chassis construction eventually led to the introduction of the revised 4CLT model in 1948.
The Maserati 4CL was steadily upgraded and updated over the following two years, resulting in the ultimate 4CLT/50 model, introduced for the inaugural year of the Formula One World Championship in 1950. In the immediate post-war period, and the first two years of the Formula One category, the 4CLT was the car of choice for many privateer entrants, leading to numerous examples being involved in most races during this period.
After the replacement of the factory team’s 4CLs by the new 4CLT, many examples of the older cars found their way into privateer hands. It was owing to the 4CL’s popularity with privateer entrants that many were still being run in top-flight competition at the outset of the Formula One World Championship in 1950.

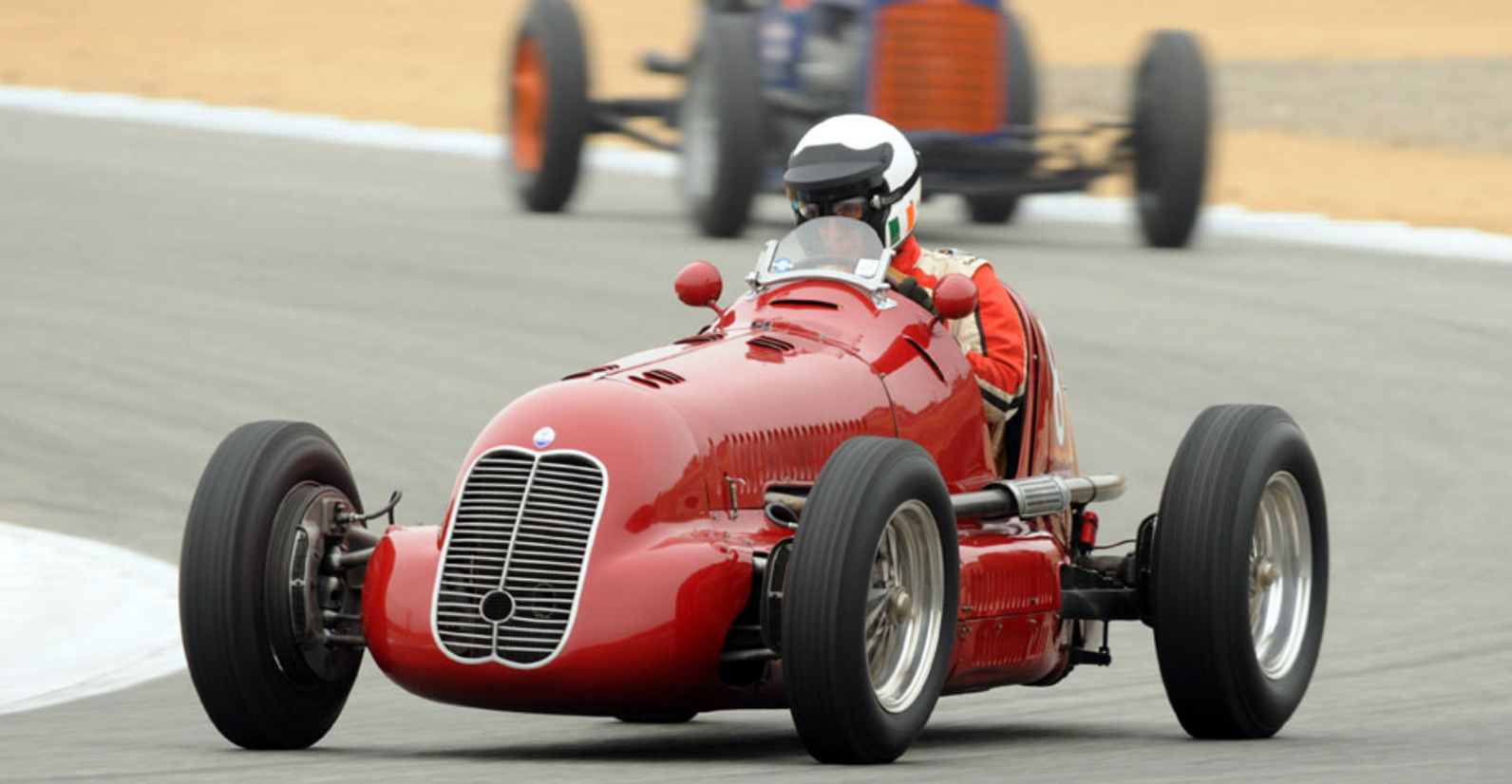

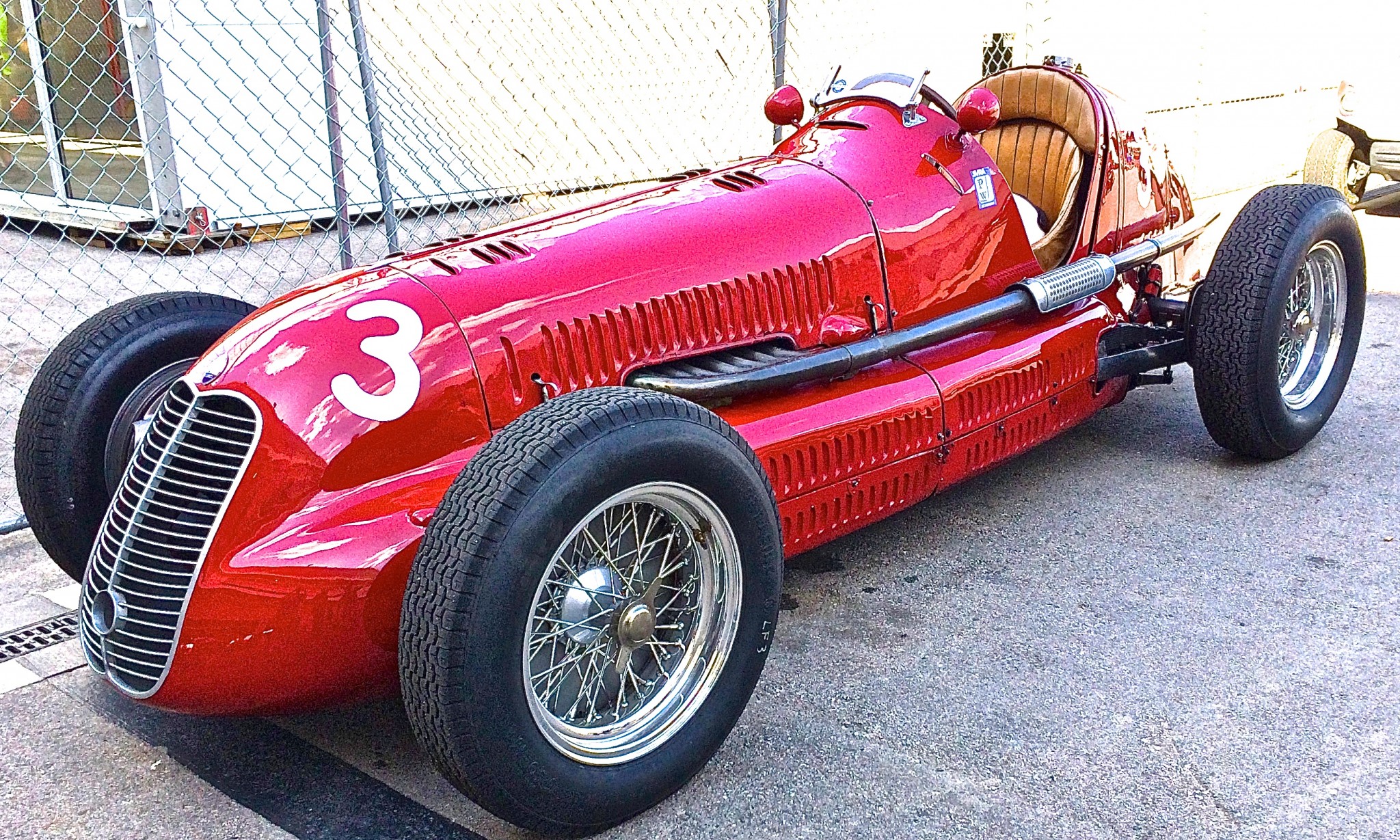

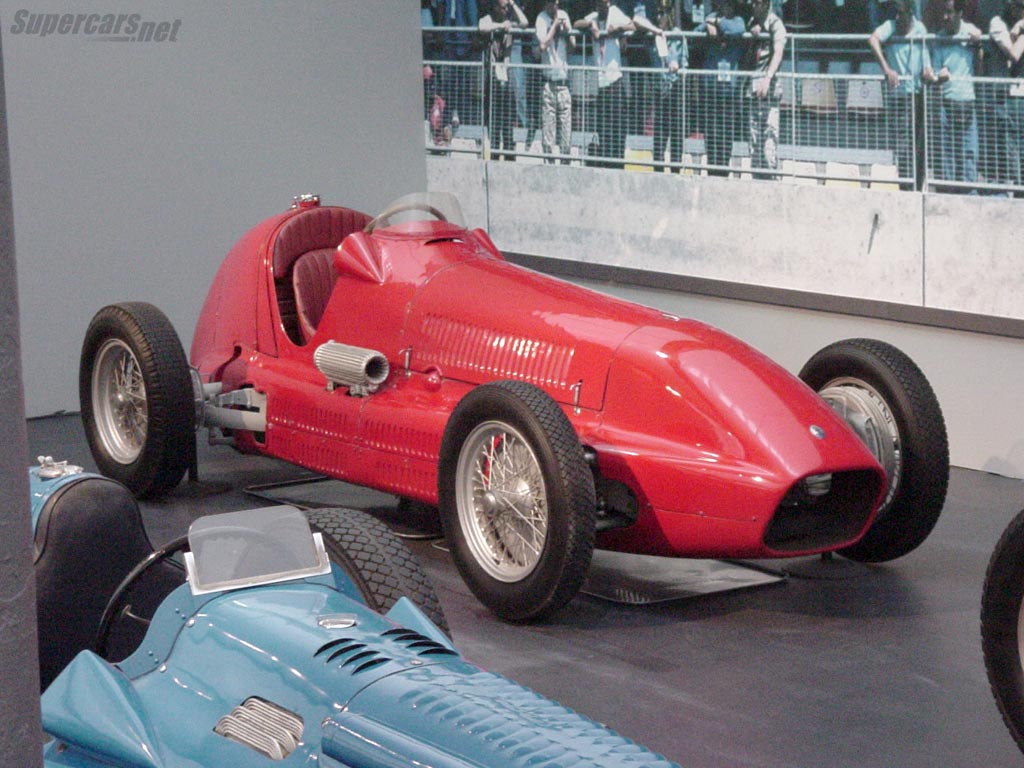

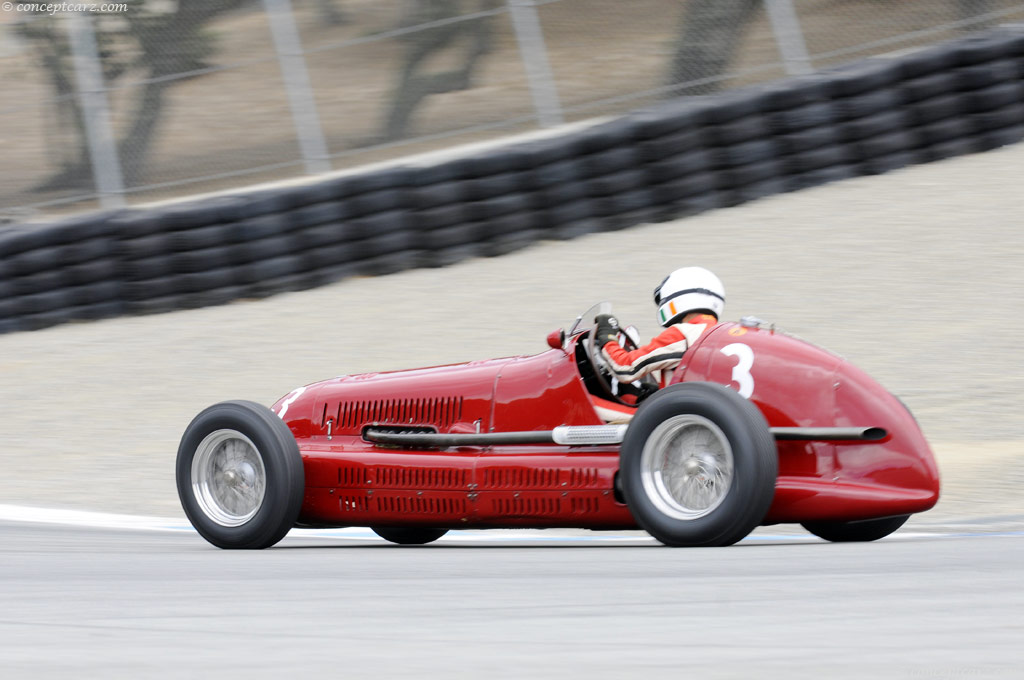

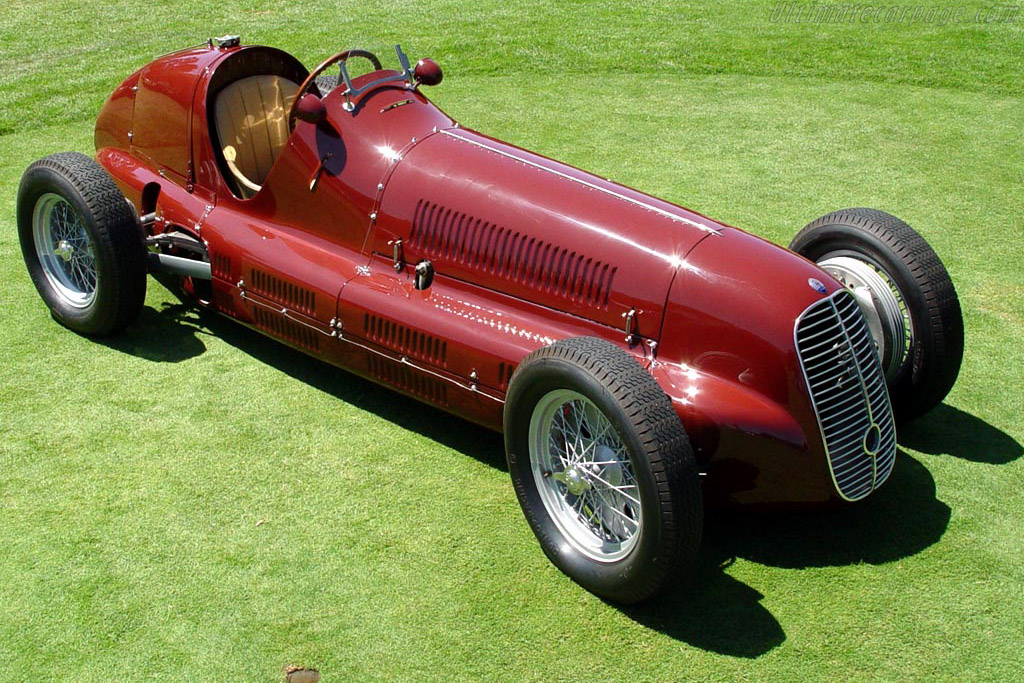

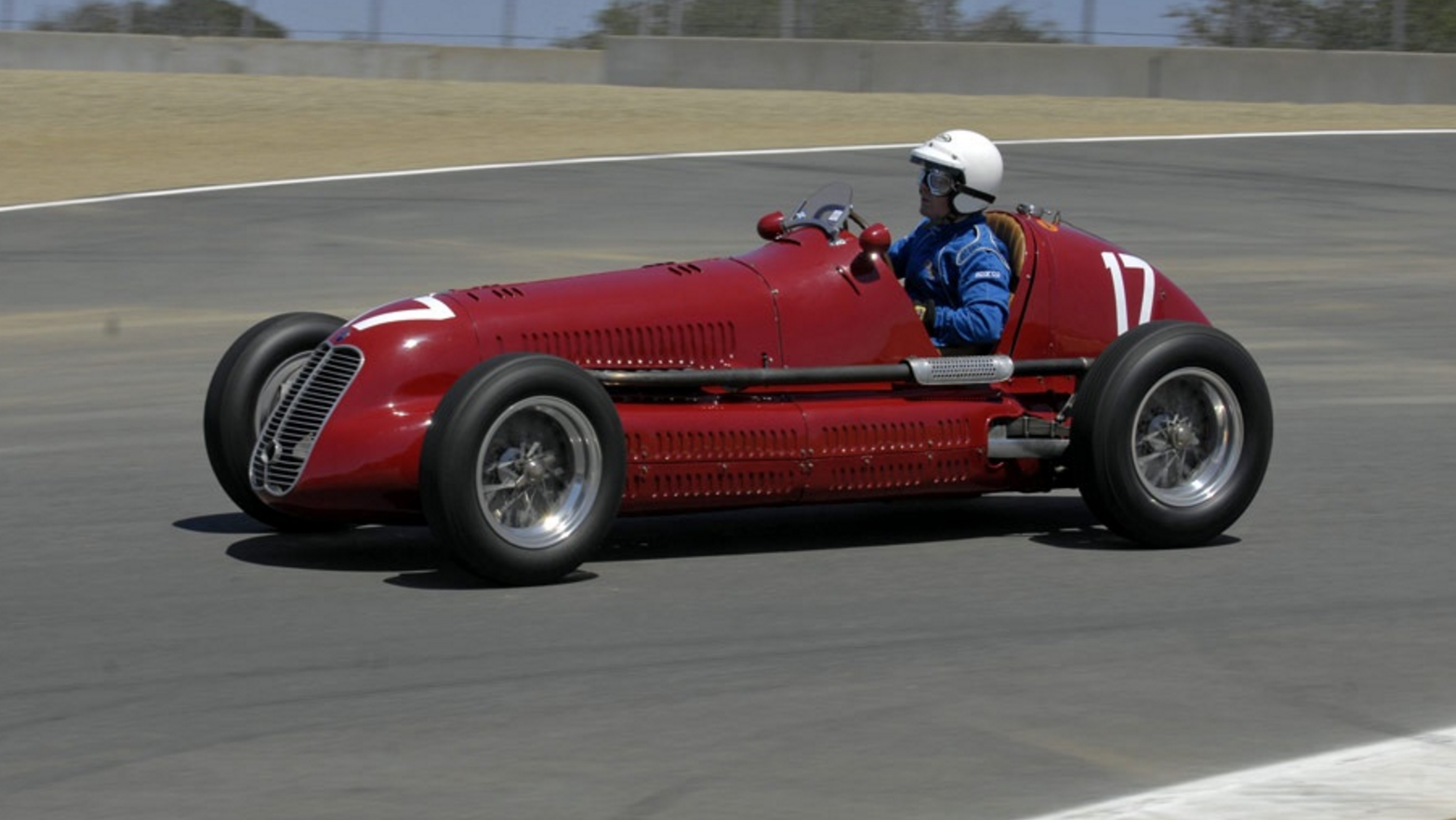

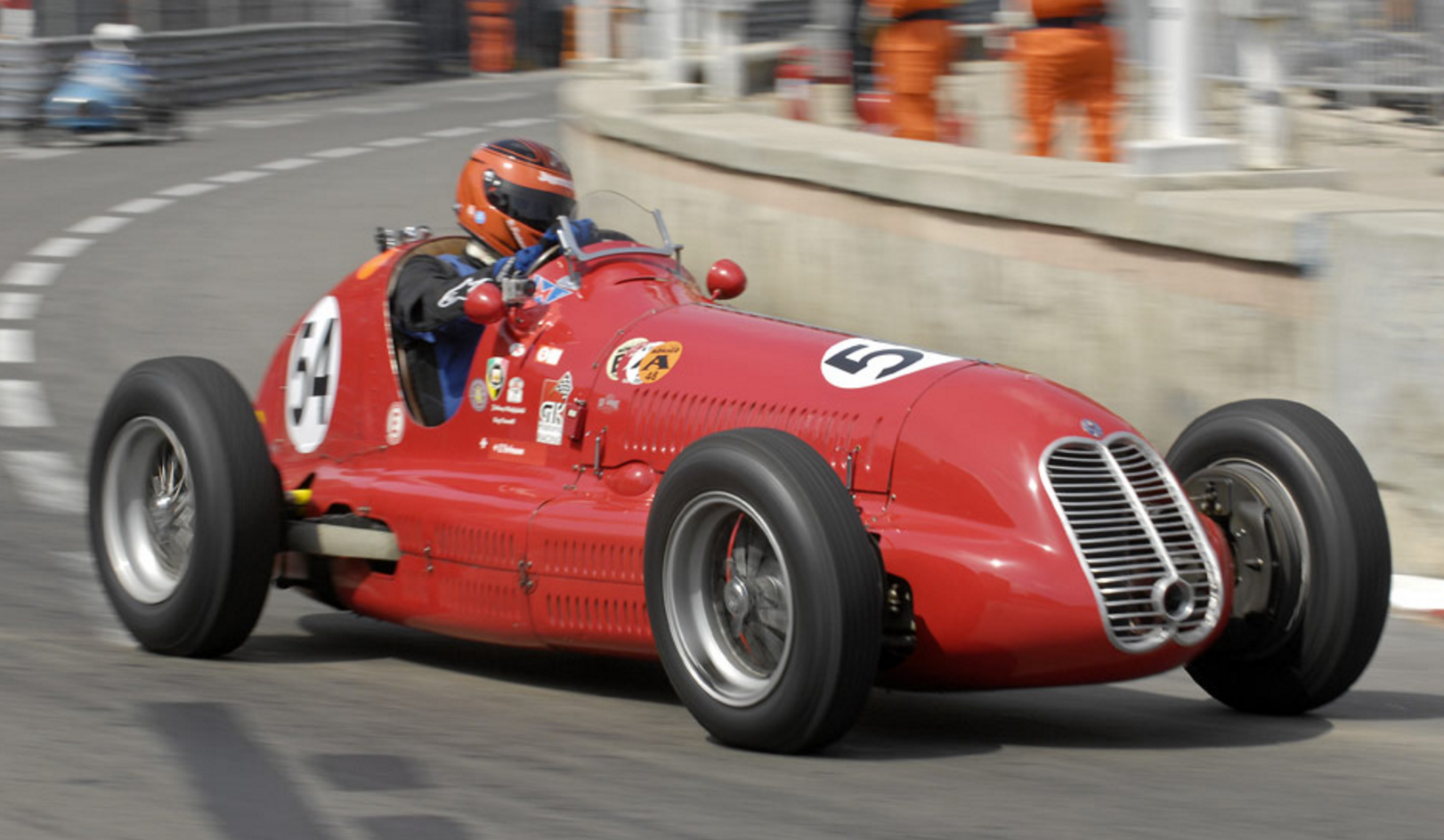

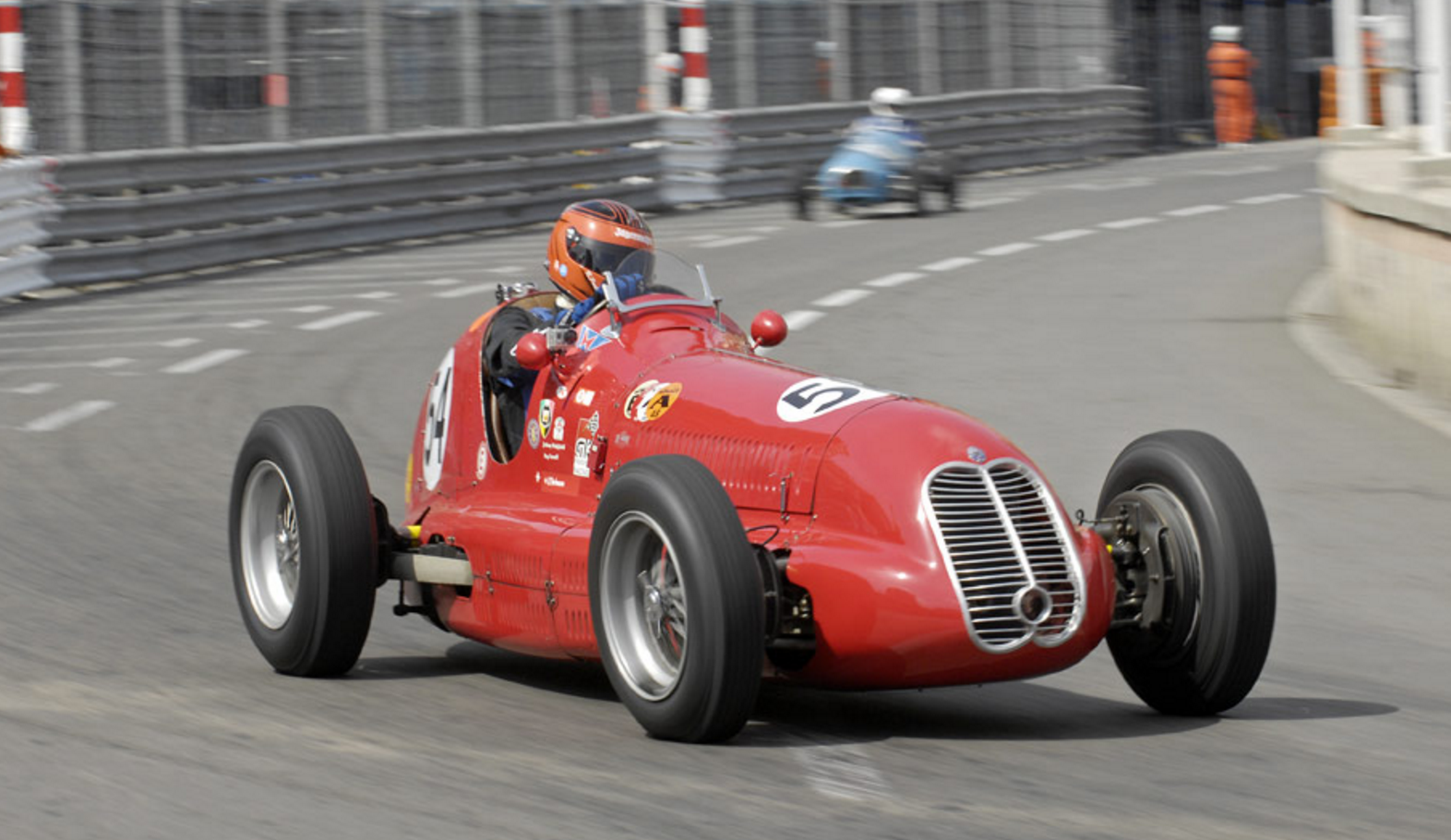

1939 Maserati 4CL Image Gallery
See all Maserati 4CL Images here
See all our Maserati 4CL posts and Maserati Race Cars. We also have our full list of awesome Maserati cars and recent Maserati posts and news.
Maserati 4CL In Detail
tags | Maserati 4CL |
engine | Supercharged Inline-4 |
valvetrain | DOHC 4 Valves / Cyl |
displacement | 1490 cc / 90.9 in³ |
bore | 78 mm / 3.07 in |
stroke | 78 mm / 3.07 in |
compression | 6.5:1 |
power | 164.1 kw / 220.1 bhp @ 8000 rpm |
specific output | 147.72 bhp per litre |
bhp/weight | bhp per tonne |
body / frame | Aluminum |
driven wheels | Front Engine |
front brakes | Hydrualic Drums |
f brake size | mm / in |
rear brakes | Hydraulic Drums |
r brake size | mm / in |
front wheels | F 43.2 x 8.9 cm / 17.0 x 3.5 in |
rear wheels | R 40.6 x 10.2 cm / 16.0 x 4.0 in |
curb weight | 630 kg / 1389 lbs |
wheelbase | 2500 mm / 98.4 in |
front track | 1250 mm / 49.2 in |
rear track | 1272 mm / 50.1 in |
length | 3830 mm / 150.8 in |
width | 1480 mm / 58.3 in |
height | 1100 mm / 43.3 in |
transmission | 4-Speed Manual |
gear ratios | :1 |
top speed | ~235.0 kph / 146.0 mph |
