1908 Cadillac Model S

1908 Cadillac Model S

1908 Cadillac Model S

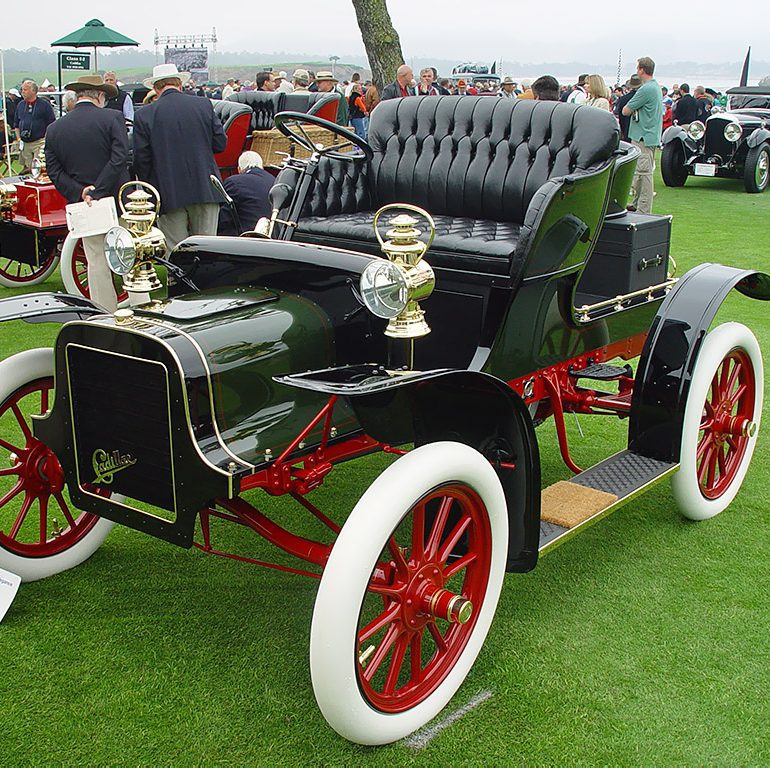

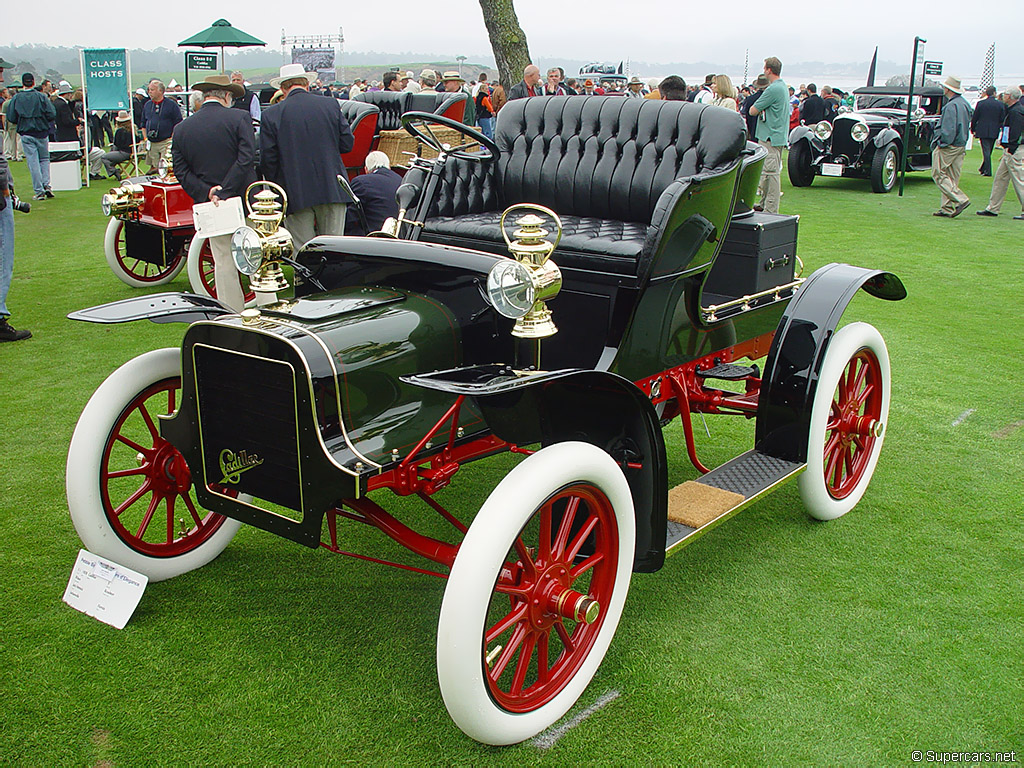

In November of 1907, Cadillac introduced the Model S which was a variant of their 10HP single-cylinder car. This was nearly identical to the Model M, Model S & Model T which were all essentially the same model with different body styles and wheelbases. The Model S was a two-seat Runabout body on the 82 inch wheelbase chassis.

Engineering principles for the aging single-cylinder Cadillac were similar to the very first Model A of 1903. It used a Leland & Faulconer engine, 2-speed transmission and a Brown-Lipe differential. By 1907 the power had increased from 6.5 to 10 advertised bhp.

The Model S featured larger 24 inch wheels and could be ordered with options to fit Rubber, Leather or a Victoria Style top for $60, $80 and $175 respectively. A definitive feature of the Model S was its longer wheelbase running boards.

As an available option, single and double rumble seats could be ordered with both the straight line and Victoria style runabouts.

Story by Supercars.net

In Detail

type Series Production Car
built at Detroit, Michigan, USA
engine Leland & Faulconer Single Cylinder
position Under Front Seat
aspiration Natural
block material Cast Iron w/Copper Water Jacket
fuel feed Updraft Mixer
displacement 1609 cc / 98.2 in³
bore 127.0 mm / 5.0 in
stroke 127.0 mm / 5.0 in
power 7.5 kw / 10 bhp
specific output 6.22 bhp per litre
body / frame Steel Body over Steel Frame
driven wheels RWD
wheel type Wooden 12-Spoke
front tires 30×3
rear tires 30×3
front brakes None
rear brakes Inboard Drums
front wheels F 61.0 x 5.1 cm / 24 x 2 in
rear wheels R 61.0 x 5.1 cm / 24 x 2 in
transmission 2-Speed Manual
gear ratios 3.00:1, 1.00:1
